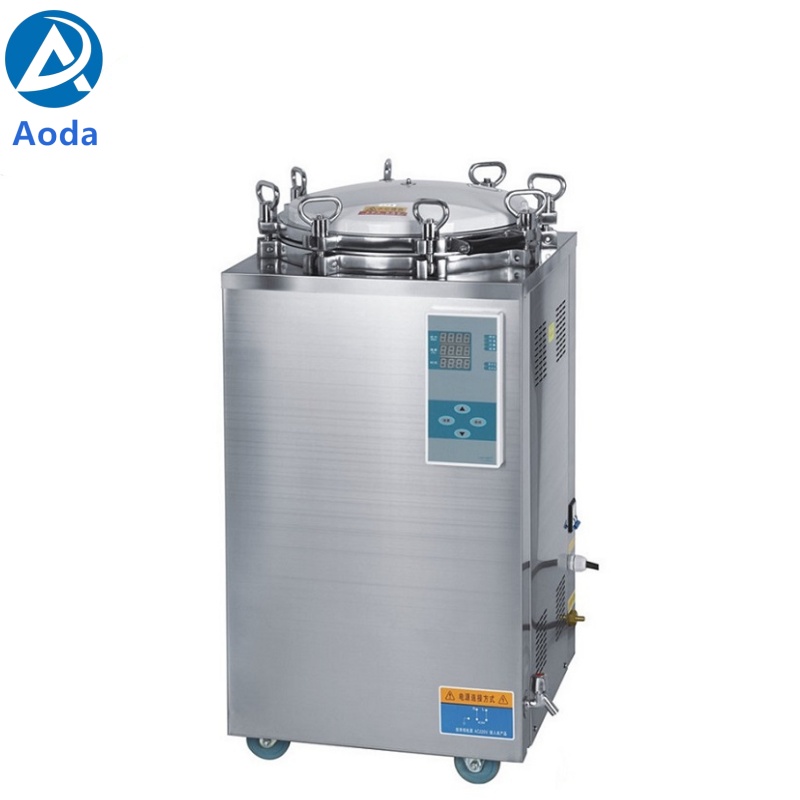

Medical Lab Autoclave High Temperature Steam Sterilizer
Autoclaves are ideal equipments for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabrics, glasses, culture media etc....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Medical Lab Autoclave High Temperature Steam Sterilizer
The vertical pressure steam sterilizers are assembled with heating system, micro-computer controlled system, over heat and over pressure protection system, which are reliable for he sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabrics, glasses, culture media etc.
Characteristics
◇ Indicator light indicates working state.
◇ Automatically shut off with beep reminding after sterilization.
◇ Over-temperature & over-pressure auto-protection device.
◇ Fully stainless steel structure.
◇ Double scale indication pressure gauge.
◇ Easy to operate, safe and reliable.
◇ Safe protection of water lacking.
◇ With two stainless steel sterilizing baskets.
◇ With the below exhaust structure, which is convenient to exhaust the cold air.
Technical parameter
Model | LS-35LD | LS-50LD | LS-75LD | LS-100LD | LS-120LD | LS-150LD | |
Sterilization tank volume | 35L φ318×450mm | 50L φ340×550mm | 75L φ400×600mm | 100L φ440×650mm | 120L φ480×660mm | 150L φ510×740mm | |
Max work pressure | 0.25MPa | ||||||
Max work temperature | 138℃ | ||||||
Rated work pressure | 0.22Mpa | ||||||
Rated work temperature | 134℃ | ||||||
Heat uniformity | ≤±1℃ | ||||||
Timing | 0-99min/0-99hour59min | ||||||
Temperature range | 105-134℃ | ||||||
Power / Voltage | 1 X 2.5KW/AC220V 50HZ | 2 X 1.5KW/AC220V 50HZ | 3 X 1.5KW/AC220V 50HZ | 3 X 2.0KW/AC220V 50HZ | |||
Dimensions(mm) | 470×450×840 | 520×500×970 | 550×530×990 | 580×560×1060 | 630×610×1130 | 660×640×1130 | |
Package size(mm) | 540×540×970 | 580×580×1090 | 610×610×1110 | 640×640×1170 | 690×690×1240 | 730×730×1230 | |
G.W / N.W | 61Kg/46Kg | 73Kg/56Kg | 87Kg/67Kg | 95Kg/73Kg | 1165Kg/100Kg | 130Kg/111Kg |
