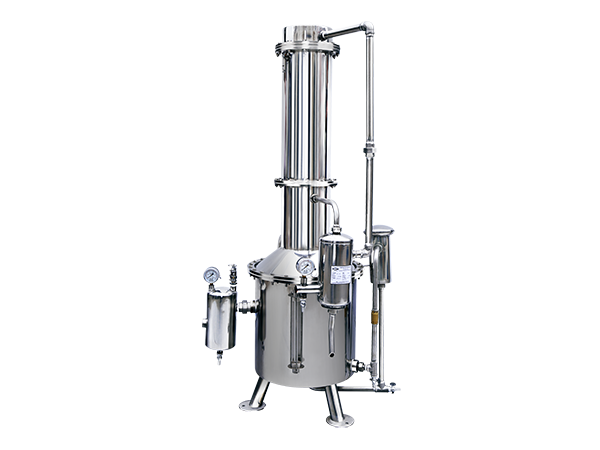

Aoda Stainless steel Tower steam re-distilled Water Distiller
Water output : 50L/H~600L/H...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service

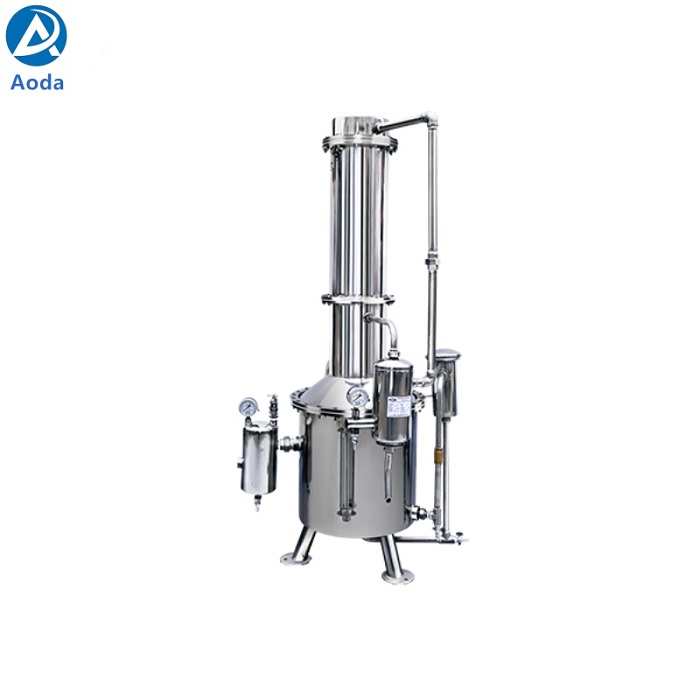

Aoda Stainless steel Tower steam re-distilled Water Distiller
Feature of TZ-series Stainless steel Tower steam re-distilled Water Distiller
The whole is made of high-quality stainless steel.
The high-temperature steam provided by the boiler is used as thermal energy for heating, saving energy.
The water condensed from the boiler steam is used as the source water.
The disc steam heating tube has high thermal efficiency.
The shell-and-tube cooling device has a large water output and is easy to maintain.
In the distillation process, it can effectively achieve filtration, ammonia discharge, and water vapor separation to ensure the quality of the distilled water produced.
Specifications of TZ-series Stainless steel Tower steam re-distilled Water Distiller
Model | Water output | Gas supply pressure | Cooling water pressure | Steam consumption | Water consumption ratio | Package (cm) |
TZ50 | ≥50L/h | ≮0.4MPa | ≮0.2MPa | ≈1:1 | ≤1:14 | 77×67×145 |
TZ100 | ≥100L/h | 77×72×165 | ||||
TZ200 | ≥200L/h | 93×87×140 | ||||
TZ400 | ≥400L/h | 113×103×165 | ||||
TZ600 | ≥600L/h | unkown |
