Aoda Light Horizontal Planetary ball milling machine

Aoda Light Horizontal Planetary ball milling machine

Light Horizontal Planetary ball milling machine is suitable for laboratory small batch sample experimental research.

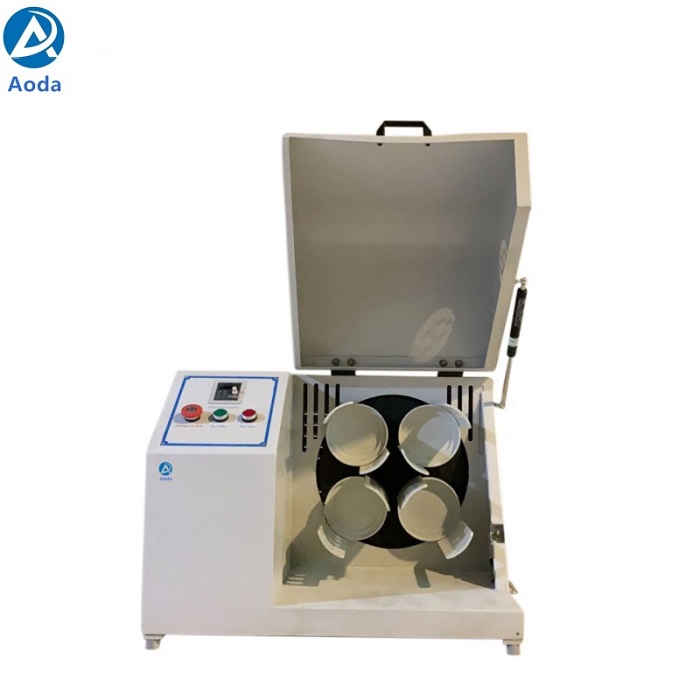

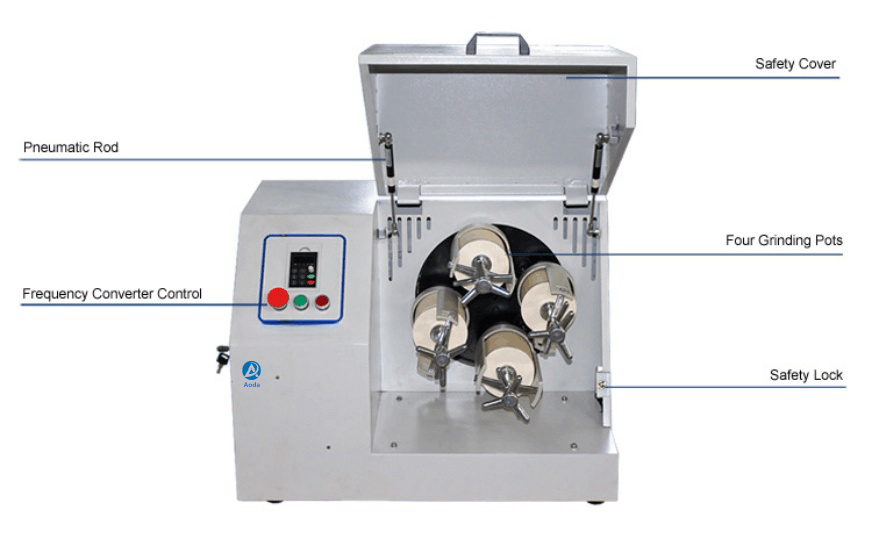

The light horizontal planetary ball mill is equipped with four horizontally mounted ball mills symmetrically on a vertical planetary disk. The ball mill does not have a fixed flat bottom when it is in planetary motion. During the grinding process, the grinding balls in the mill are affected by the two centrifugal forces of revolution and rotation, as well as their own gravity, which helps to enhance the disordered movement of the grinding balls and materials, and improve the grinding effect and efficiency. Since the ball mill does not have a fixed flat bottom when it rotates, it can better solve the problem of some materials sinking to the bottom.

Technical parameters of Light horizontal planetary ball mill

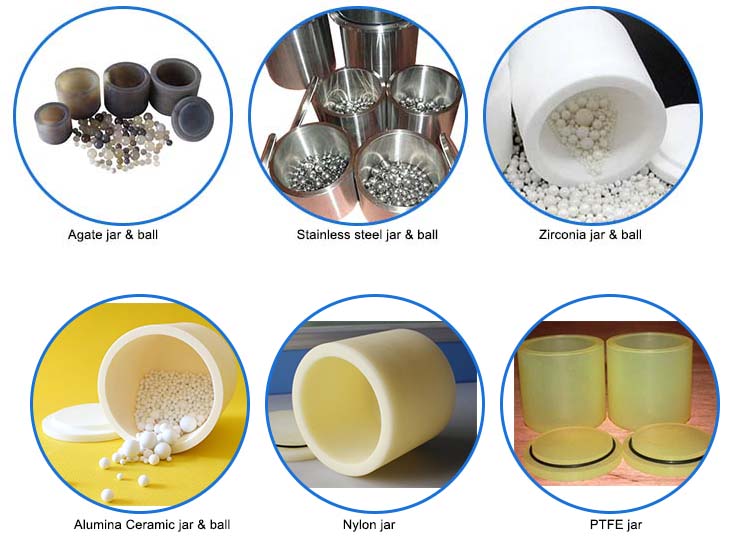

Optional milling pots and balls for the Light horizontal planetary ball mill

We provide all kinds of mill pots and balls in any matched size, which are made from following materials of agate, Alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, crystal glass, and etc.
