Aoda LGJ-100F 10kg load standard silicon oil heating pilot freeze dryer machine
LGJ-100F Standard silicon oil heating pilot freeze dryer machine is a versatile research and development equipment, well-suited for the research and small-scale production of bioproducts, in vitro diagnostic reagents, and more.
LGJ-100F Standard silicon oil heating pilot freeze dryer machine has a freeze-drying area of 1.03㎡ and is recommended for a loading capacity of 10kg.
Freeze dryer machine Feature
1. In-situ Vacuum Freeze Dryer: Our in-situ vacuum freeze dryer offers streamlined operations with pre-freezing and drying completed in place, ensuring user-friendly handling and exceptional drying outcomes.
2. Transparent ACRYLIC Chamber Door: The drying chamber door, made from ACRYLIC material, provides a colorless and transparent view of the entire freeze-drying process.
3. Inert Gas Control: Featuring a secure diaphragm valve, the inflation (water release) valve connects to inert gas sources, allowing post-drying inert gas filling to extend the shelf life of materials.
4. Specialized Gas Diversion Technology: Our specialized gas diversion technology ensures even cold trap ice capture and robust ice-capturing capabilities.
5. Internationally Recognized Compressor: Utilizing a compressor from a globally renowned brand, we offer high efficiency, extended lifespan, and minimal noise.
6. Advanced PID Temperature Control: Employing advanced PID temperature control technology, our system minimizes shelf temperature deviations, ensuring uniform drying.
7. Optimized Freeze-Drying Curve Control: Our system precisely manages cooling rates during pre-freezing, as well as sample warming rates and optional vacuum level adjustments during sublimation and desorption drying stages.
8. Robust Sensor Calibration: The system includes robust sensor calibration functionality, guaranteeing long-term measurement precision.
9. 7-inch True-Color Industrial Embedded Touchscreen + SH-HPSC-II Modular Controller: Our equipment boasts a 7-inch true-color industrial embedded touchscreen paired with the SH-HPSC-II modular controller, delivering high control accuracy and dependable performance.
10. Professional FD-PILOT Control System: Our professionally designed FD-PILOT control system can store numerous process recipes, each containing 36 temperature control segments, significantly enhancing process optimization.
11. Intelligent Data Recording: Our intelligent data recording system offers real-time monitoring and display of the cold trap temperature curve, sample temperature curve, and vacuum curve. Exportable data is easily accessible on a computer, simplifying process optimization and drying effect verification.
12. Flexible Manual and Automatic Control Modes: Our freeze dryer provides versatile control modes for manual adjustments during process experimentation and seamless automatic control for batch production.
13. Real-Time Alarm Display and Historical Alarm Query: The system offers real-time alarm display and historical alarm query functions, simplifying troubleshooting and equipment maintenance.
14. User-Level and Password Settings: Users can establish different access levels and implement password protection, ensuring controlled and secure operation and management.
Freeze dryer machine specifications
Model | LGJ-20F Standard | LGJ-30F Standard | LGJ-50F Standard | LGJ-100F Standard | |
Freeze Drying Area | ㎡ | 0.3 | 0.4 | 0.7 | 1.03 |
Cold Trap Temperature | ℃ | <-75 (no-load) | |||
Vacuum Level | Pa | ≤1 (no-load) | |||
Shelf Temperature Range | ℃ | -55-+70 (no-load) | |||
Maximum ice capacity | kg/24h | ≥6 | ≥8 | ≥10 | ≥15 |
Number of Shelf Layers | pcs | 3+1 | 4+1 | 4+1 | 6+1 |
Material Tray | mm | 400×270 | 340×300 | 480×360 | 480×360 |
Shelf Spacing | mm | 70 | 50 | 50/ Optional 70 | 70 |
Overall Power | kW | 3 | 4.5 | 5.5 | 6.5 |
Weight | kg | 300 | 400 | 600 | 700 |
Dimensions | mm | 1033×781×1580 | 825×928×1366 | 823×1008×1420 | 876×1190×1727 |
Loadable Materials | L/kg | 3 | 4 | 7 | 10 |
Defrost Mode | - | Electric Defrost | Natural Defrost | Natural Defrost with Optional Electric Defrost | Electric Defrost |
Safety Devices | - | Audible Alarm, Emergency Stop Switch, Overpressure Protection | |||
Power Supply | - | 220V | 220V | 3P,380V | 3P,380V |

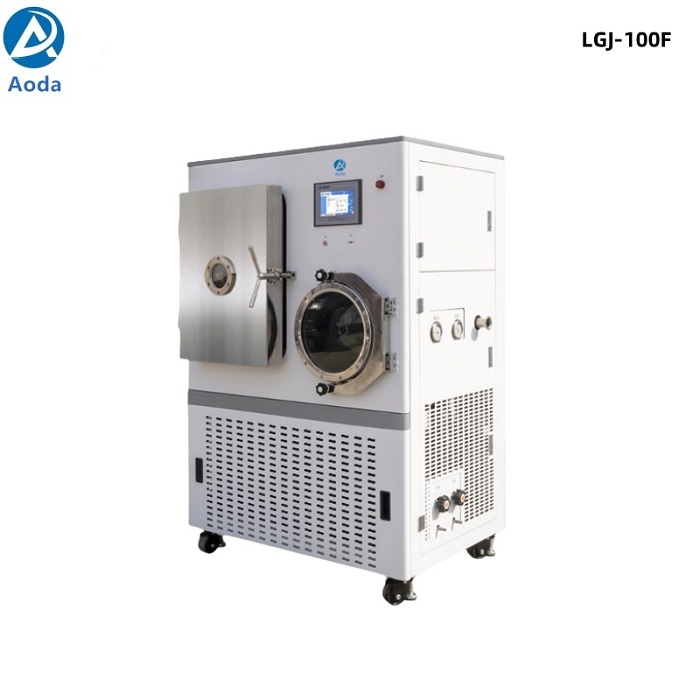

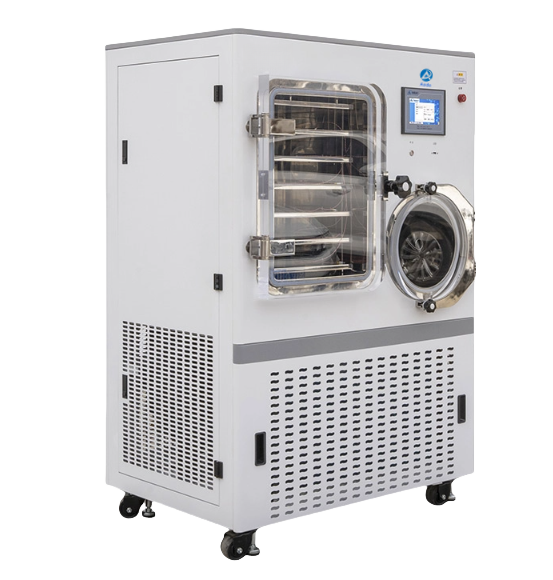

LGJ-100F Standard Freeze drying machine photo

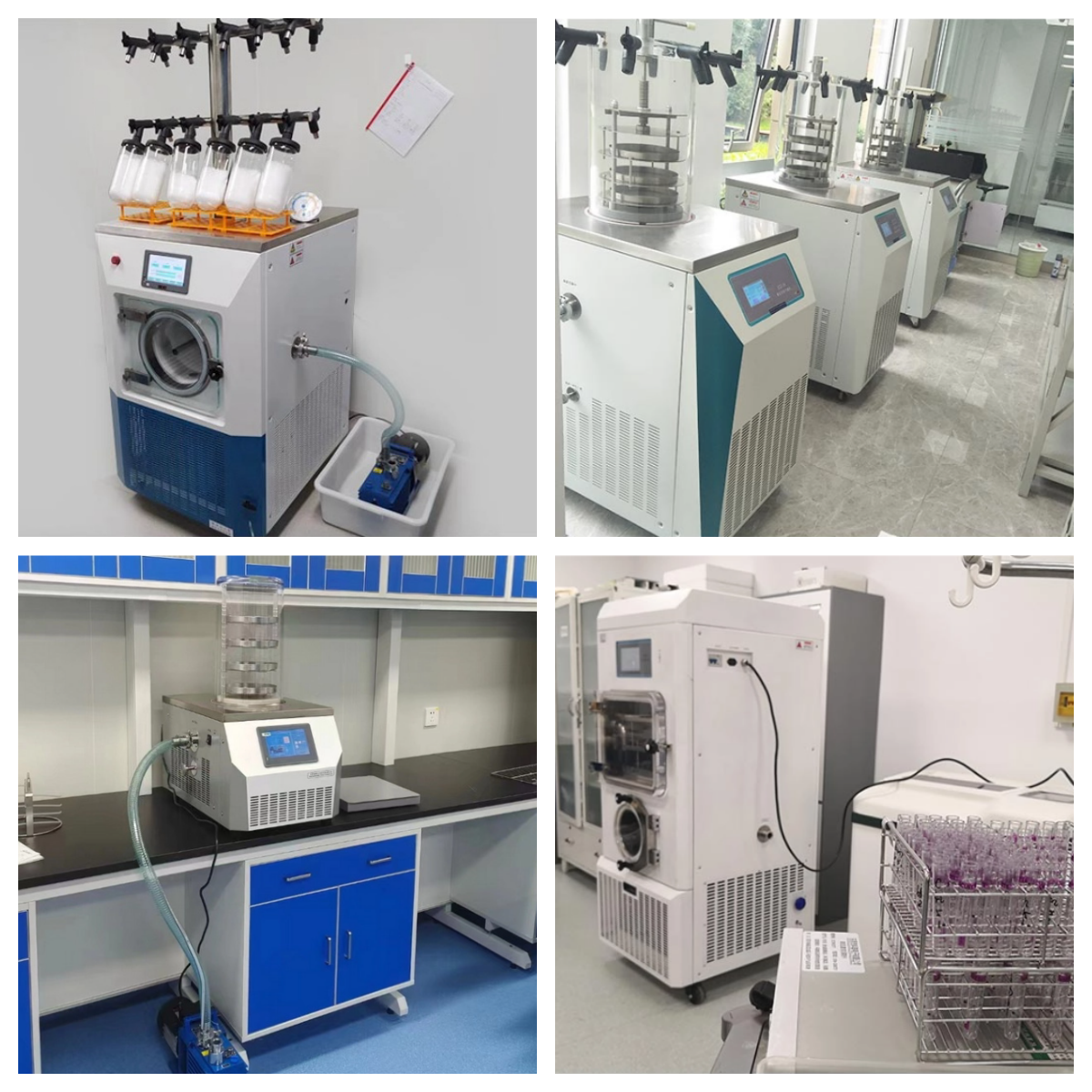

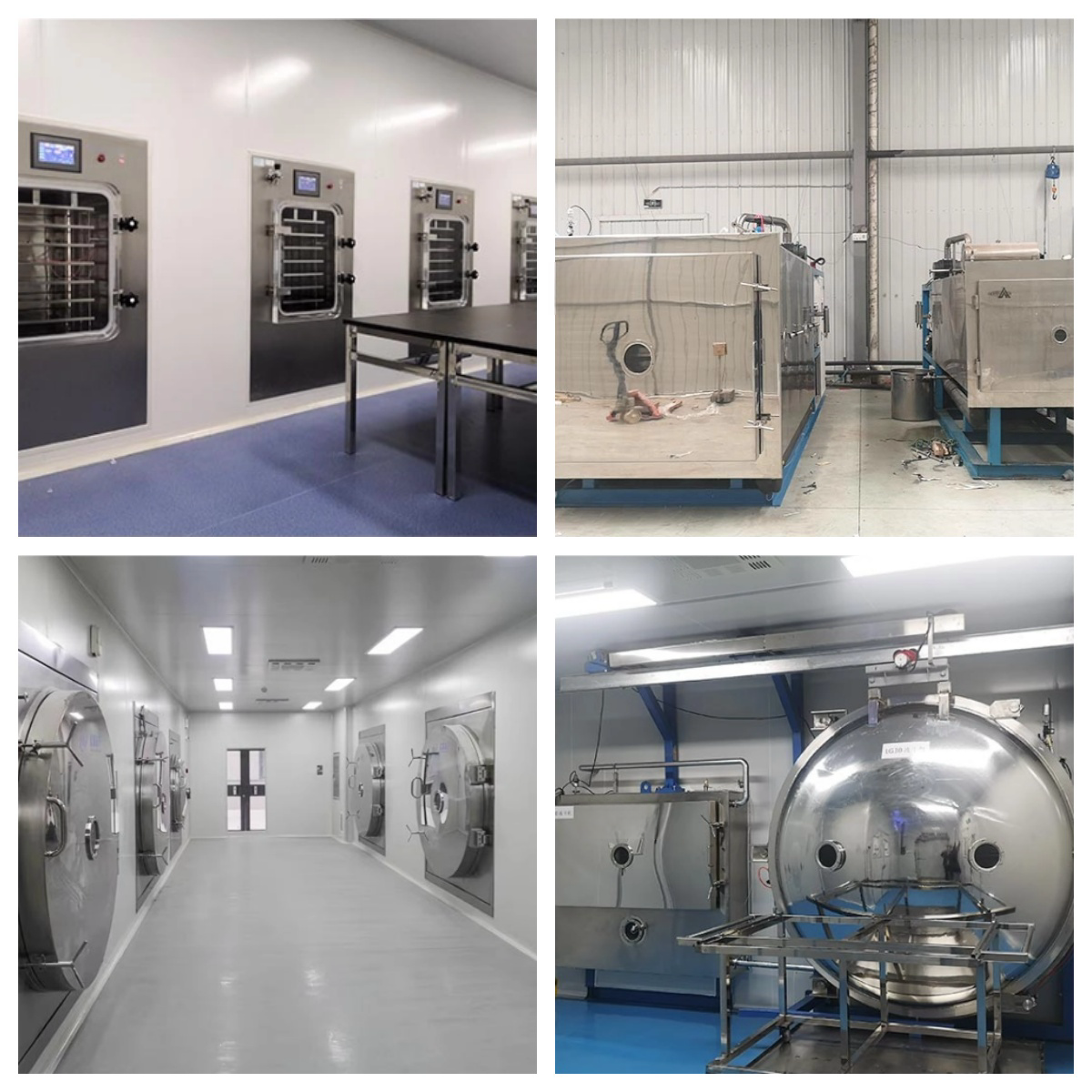

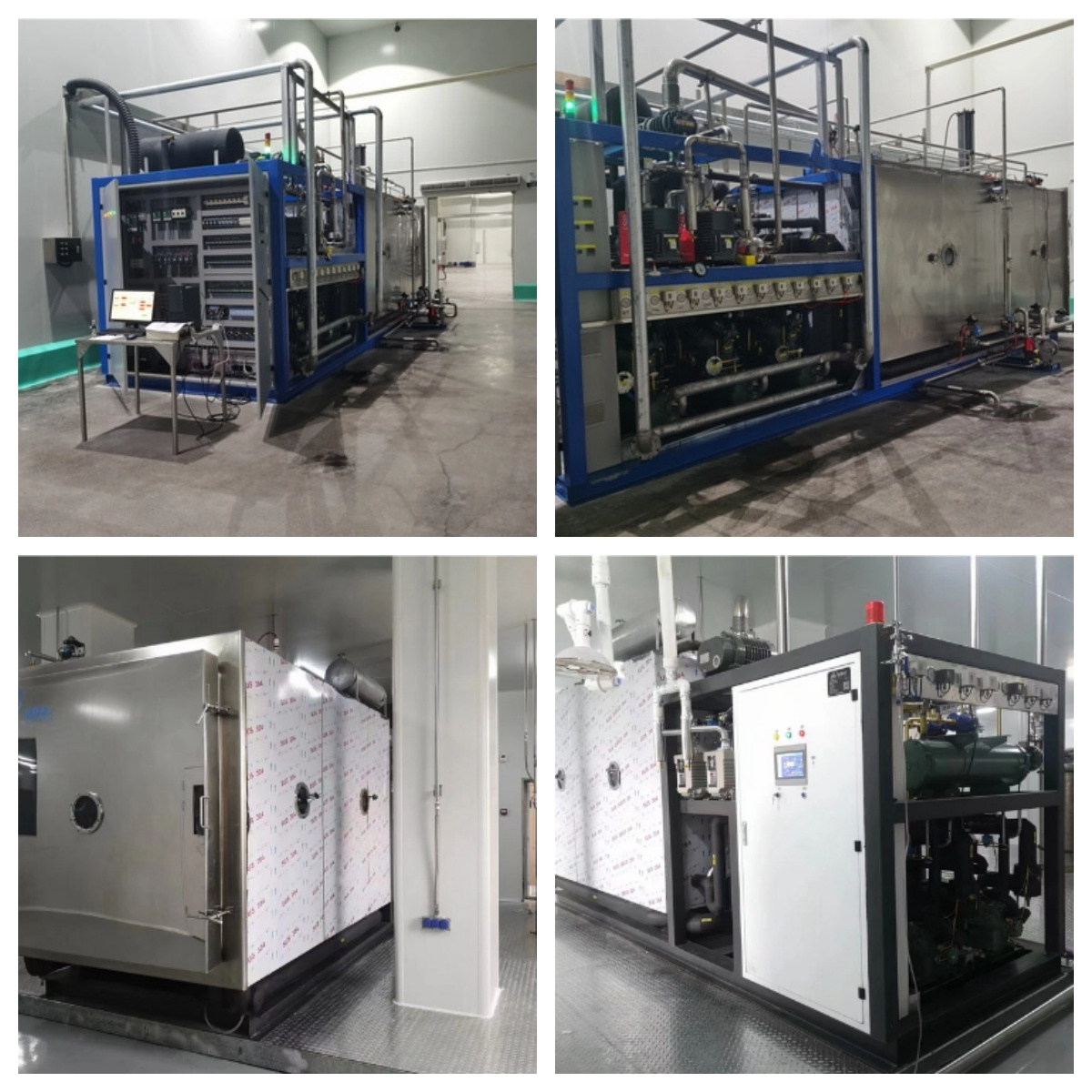

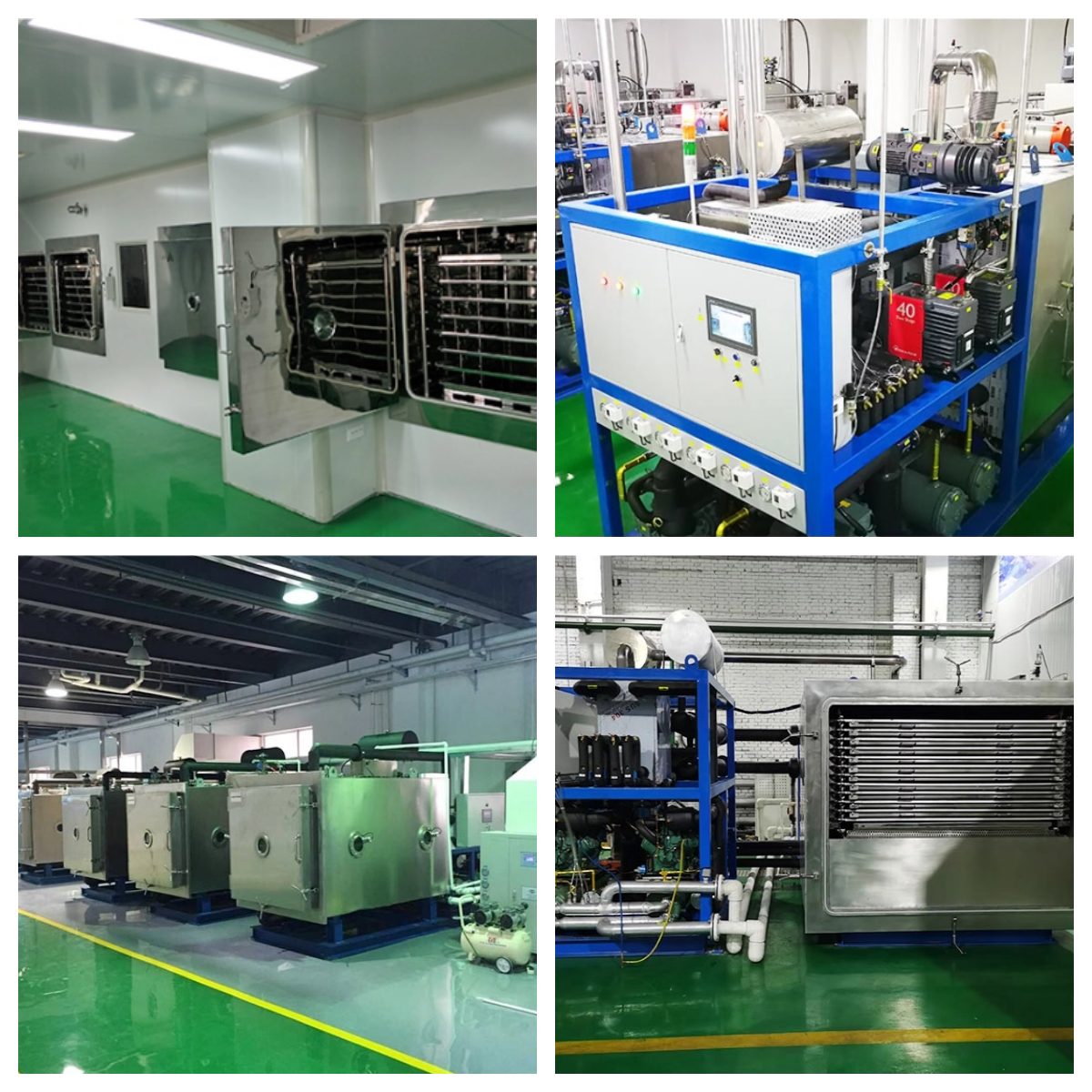

Galance of our Lab,factory & workshop
