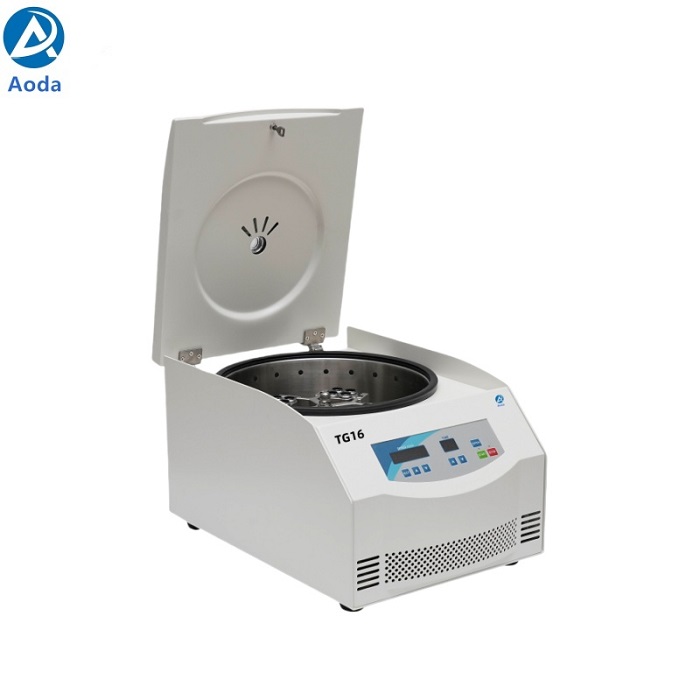

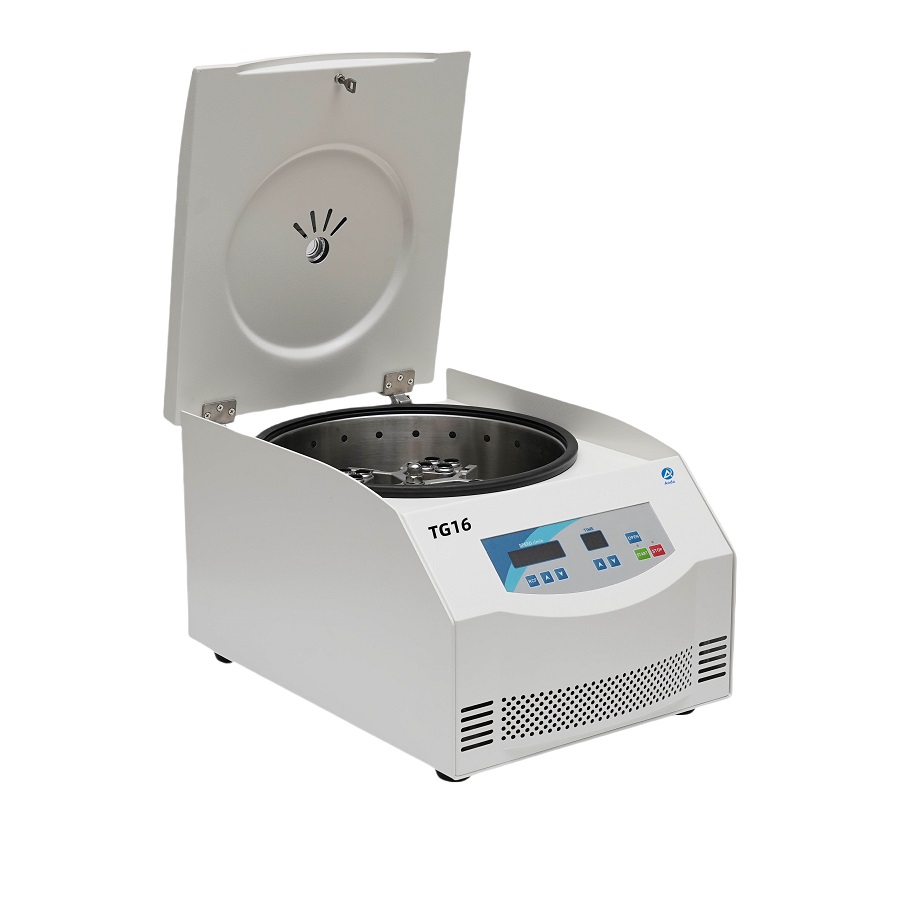

Aoda TG16 Laboratory Tabletop High Speed Centrifuge
TG16 Laboratory Tabletop High Speed Centrifuge,Max speed 16000rpm,Max RCF 20600×g...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Aoda TG16 Laboratory Tabletop High Speed Centrifuge
TG16 High speed centrifuge Feature
1.Brushless frequency motor,in great torque, free maintenance, no powder pollution, quick in speed up and down.
2.Microprocessor control
3.Digital display in time, speed and RCF.
4. 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.
5. Automatically electric lid lock, over speed, over temperature protection and imbalance protection.
6.High quality steel centrifuge body , stainless steel chamber, 3 tiers protection,safe and reliable.
7. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction
TG16 High speed centrifuge specification
Max. Speed | 16000rpm |
Max. RCF | 20600×g |
Max. Capacity | 6×100ml |
Time Range | 0~99min |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 65 |
Acc/Dec | 10 Kinds |
Speed Accuracy | ±20r/min |
Temperature Accuracy | ±1℃ |
Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
Size (L x W x Hmm) | 513×370×320mm |
Net Weight/Gross weight(Kg) | 48KG/55kg |
Certificates | CE,ISO & Calibration report are available |

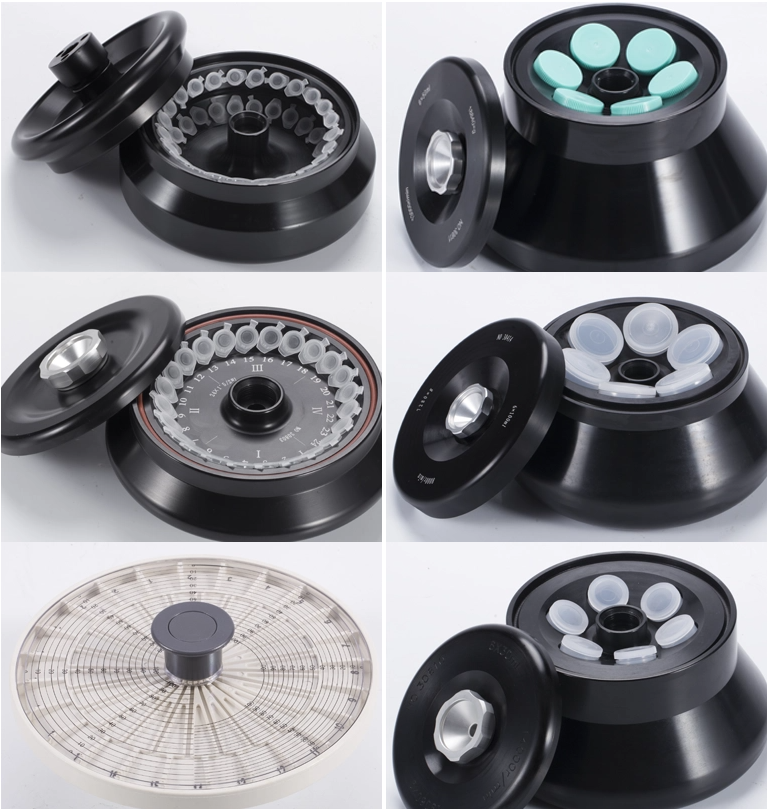

Matched Rotor for TG16 High speed centrifuge
Order No | Rotor | Max speed (rpm) | Max Volume(ml) | Max RCF (g) |
G16-1 | Angle rotor | 14000 | 4×8PCR | 12070 |
G16-2 | Angle rotor | 13000 | 6×8PCR | 16080 |
G16-3 | Angle rotor | 14000 | 8×8PCR | 13390 |
G16-4 | Angle rotor | 13000 | 12×8PCR | 17220 |
G16-5 | Angle Rotor | 15000 | 30×0.5ml | 18510 |
G16-6 | Angle Rotor | 14000 | 40×0.5ml | 19970 |
G16-7 | Angle Rotor | 16000 | 12×1.5/2ml | 17940 |
G16-8 | Angle Rotor | 15000 | 24×1.5/2ml | 20600 |
G16-9 | Angle Rotor | 13500 | 30×1.5/2ml | 19340 |
G16-10 | Angle Rotor | 11000 | 48×1.5/2ml | 12840 |
G16-11 | Angle Rotor | 15000 | 16×5ml | 19350 |
G16-12 | Angle Rotor | 14000 | 12×7ml | 16370 |
G16-13 | Angle Rotor | 14000 | 6×10ml | 16460 |
G16-14 | Angle Rotor | 13000 | 12×10ml | 14510 |
G16-15 | Angle Rotor | 10000 | 12×15ml | 11840 |
G16-16 | Angle Rotor | 5000 | 24×15ml | 3080 |
G16-17 | Angle Rotor | 5000 | 30×15ml | 3830 |
G16-18 | Angle Rotor | 12000 | 8×20ml | 14510 |
G16-19 | Angle Rotor | 12000 | 6×30ml | 14000 |
G16-20 | Angle Rotor | 11000 | 6×50ml | 13480 |
G16-21 | Angle Rotor | 12000 | 6×70ml | 10810 |
G16-22.1 | Angle Rotor | 12000 | 4x100ml | 14850 |
G16-22 | Angle Rotor | 8000 | 6×100ml | 7280 |
G16-23 | Angle Rotor | 12000 | 24 pieces capillary vessel | 15800 |
G16-24 | Microplate rotor | 4000 | 2×3×48 Well | 2300 |
