Aoda -30 degree 850L Large capacity Low temperature Freezer

Aoda -30 degree 850L Large capacity Low temperature Freezer

Low temperature freezers can be used in hospitals, epidemic prevention stations, universities,scientific research institutes, and electronic chemical industry enterprise labs....

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

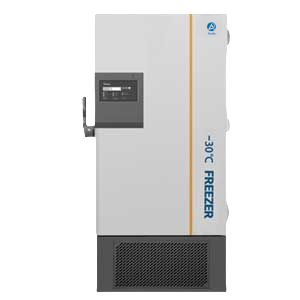

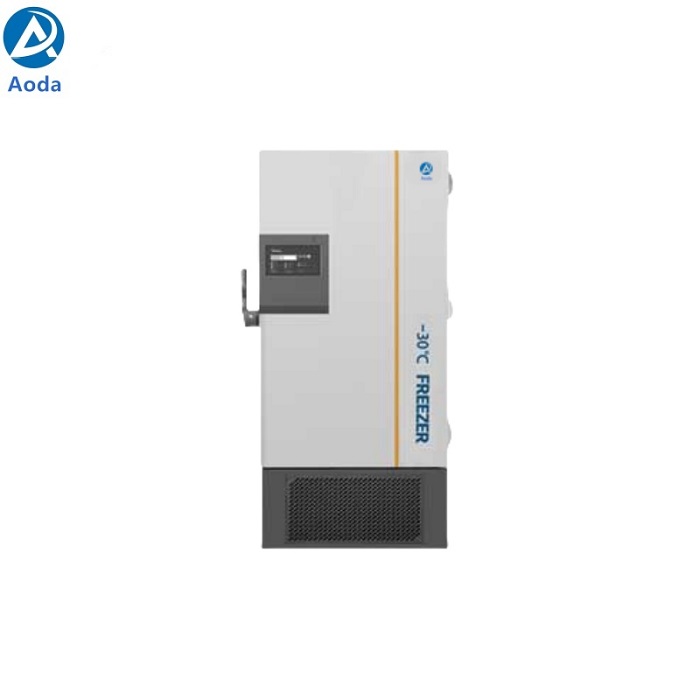

Aoda -30 degree 850L Large capacity Low temperature Freezer


Low temperature freezers can be used in hospitals, epidemic prevention stations, universities,scientific research institutes, and electronic chemical industry enterprise labs.


Three-dimensional seal

The unique three-dimensional seal, through the double-layer door

seal and the multi-layer airbag sealing design, can effectively

reduce the leakage of cold air and achieve best thermal insulation

performance.


Micro-channel condenser

Powerful heat dissipation for condenser, heat exchange capacity increase by more than 20% than common copper tube fin condenser.Excellent compressor overheating protection, effectively

improve the service life of core parts.


LCD Temperature Control Systems

Button-type control panel is easy to operate, the temperature and alarm

settings can be adjust on the panel.


LBA Forming Technology

The world's leading fourth generation foaming agent More uniform density, Better insulation, more energy-saving.

More reasonable foaming layer design, larger interior storage space.



Item

Model

30L850B Low temperature Freezer

  Data

Cabinet  Type

Upright


Climate Class

N


Sound Level(dB)

51


Defrost  Type

Manual


Refrigerant

R290


Capacity(L/Cu.Ft)

850/30.01


External Material

PCM


Inner Material

PCM



Control

Controller

Microprocessor


Display

LED


Temperature Accuracy(℃)

0.1


Temperature Range

-10~-30





Dimensions

Product Dimensions(mm)(w*d*h)

1175*995*1980


Inerior Dimensions(mm)(w*d*h)

885*720*1310


Load Capacity(40HQ)

18


Net/Gross Weight(kg)

/

/

267/336



Electrical Date

Power Supply

115~V/ 60Hz

220

V/60Hz

220-240

V/50Hz


Rated Current(W)

/

/

325


Rated Power(A)

/

/

2.6

















Functions

High Temperature Alarm

Y


Low Temperature Alarm

Y


Door Ajar

Y


Power Failure Alarm

Y


High Condenser Temperature Alarm

Y


High Ambient Temperature Alarm

Y


Low Battery Alarm

Y


Backup Battery  Endurance(h)

52


Sensor Failure Alarm

Y


UBS funtion

Y


Frame anti-condensation

Y


RS-458 Port

Optional (either with USB)


Casters

Y


leveling feet

N
