RC-6/6D tablet capsule ointment Dissolution tester

RC-6/6D tablet capsule ointment Dissolution tester

RC-6 Dissolution tester,6 baskets,6 paddles in a line...

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

RC-6/6D tablet capsule ointment Dissolution tester

Dissolution tester measures the extent and rate of solution formation from a dosage form, such as tablet, capsule, ointment, etc. The dissolution of a drug is important for its bioavailability and therapeutic effectiveness.



Standards

The Pharmacopoeia of the People's Republic of China 2020 edition.

Industry standard "Drug Dissolution Tester".



Main features

  • 6 baskets,6 paddles,in a line.

  • The machine head is manually flipped(auto lifting for RC-6D), smooth and flexible.

  • The rotation baskets and paddle shaft are made of SUS316L stainless steel.

  • Adopting a magnetic water pump circulating water flow uniform heating system, the water bath temperature is uniform.

  • Fully automatic intelligent control of temperature, speed and time parameters.

  • Parameters can be pre-set freely; Display preset and real-time values in a time-sharing manner.

  • Automation detection, automatic diagnosis and automatic alarm.

  • Intelligent, storing pharmacopoeia dissolution test parameters that can be accessed at any time.

  • Multi energy, preset multi-point timing and automatically sound and enter the next point.





TECHNICAL INDEX

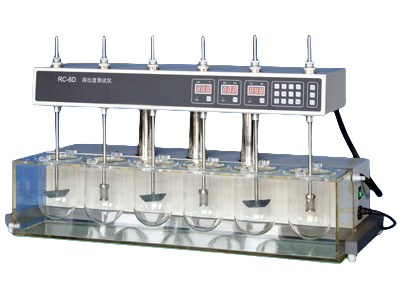

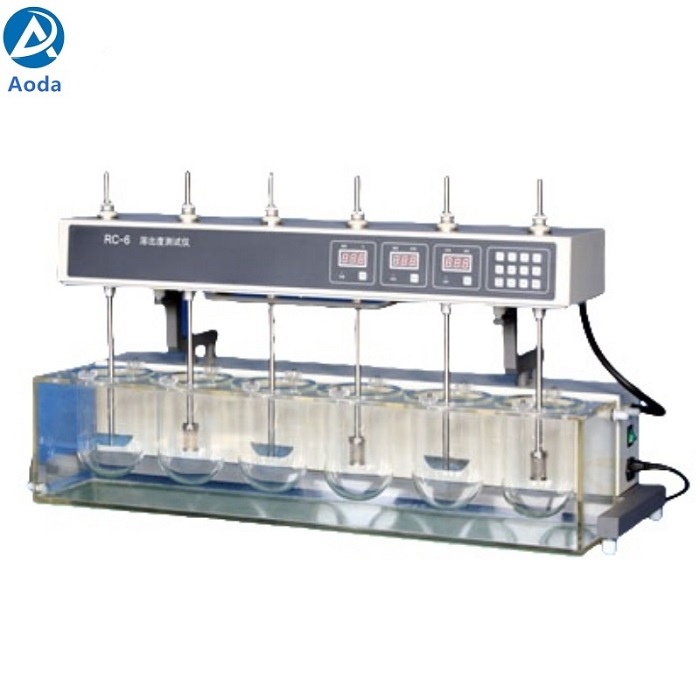

RC-6/6D Dissolution tester

Model

RC-6

RC-6D

Head lifting method

Manual lifting

Auto lifting

Speed range

20~200rpm

Speed accuracy

± 2rpm

Temperature control range

RT~45℃

Temp. accuracy

±0.3

Timing range

1~999min,total 9 points

Time accuracy

±0.3%

Swing amplitude of the baset

±1mm

Paddle swing amplitude

±0.5mm

Axis eccentricity

±2.0mm

Electric heater power

1000W

Power supply

220V50Hz

Total power

1200W

Dimensions (L*W*H)

96*32*48cm

96*40*48cm

Weight

45kg

56kg
