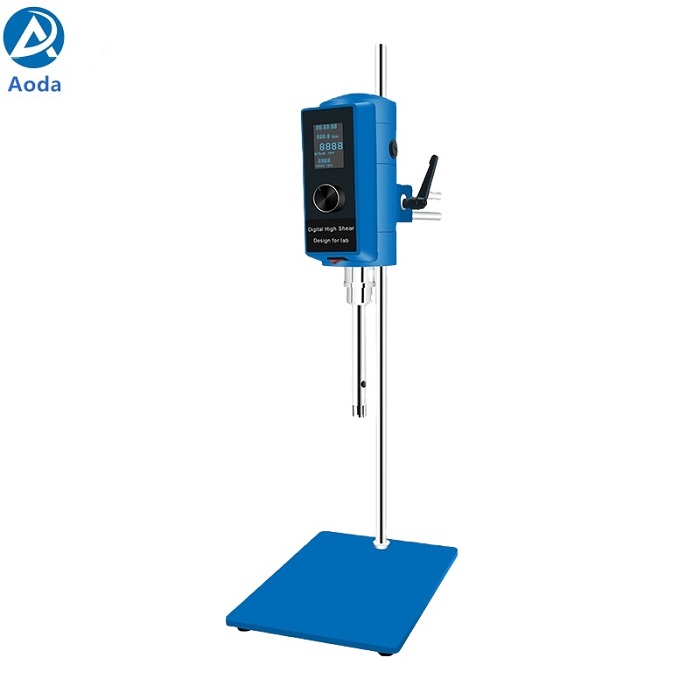

AHR-500DG High Shear Homogenizer Emulsifier
High Shear Homogenizer Emulsifier is handheld operation,high speed 2000-28000rpm,standard including head #18,process capacity 50-1500ml....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
AHR-500DG High Shear Homogenizer Emulsifier
High Shear Homogenizer Emulsifier is smart and convenient,handheld operation.
Adopt high-quality motor, more stable operation and less noise.
It can run for a long time, with a variety of working heads(#12,#18,#28,#36) to choose from, which can realize vacuum operation and easily meet a variety of high-demanding experimental requirements for dispersion,
emulsification and homogenization.
● Select high-quality motor, stable operation, lower noise, safe and reliable design;
● All parts of the working head contacting materials are made of high-quality stainless steel, with good corrosion resistance;
● The working head is connected with the drive motor by a coupling, which is easy and flexible to disassemble and assemble;
● The speed controller is stepless ,which is convenient for speed regulation and stable in operation.
Model | AHR-500DG High Shear Homogenizer Emulsifier |
Speed Range(No load) | 2000-28000rpm |
Standard head | 18G |
Rated power(HZ) | 50/60 |
Input Power | 850W |
Output Power | 500W |
Rated Torque(N.cm) | 17.1 |
Working mode | Intermittent |
Operation model | Combined control knob |
Rated Voltage(V) | AC220 |
Speed Control | stepless |
Digital Display | LED |
Time Set | 99h59m59s |
Working head Torque(N.cm) | 17 |
Working head material | SS304 stainless steel |
allowable ambient temperature | ≤40℃ |
allowable ambient humidity | ≤80% |
ExteriorDimension (mm) | 215*310*720 |
Net Weight(kg) | 8.7 |

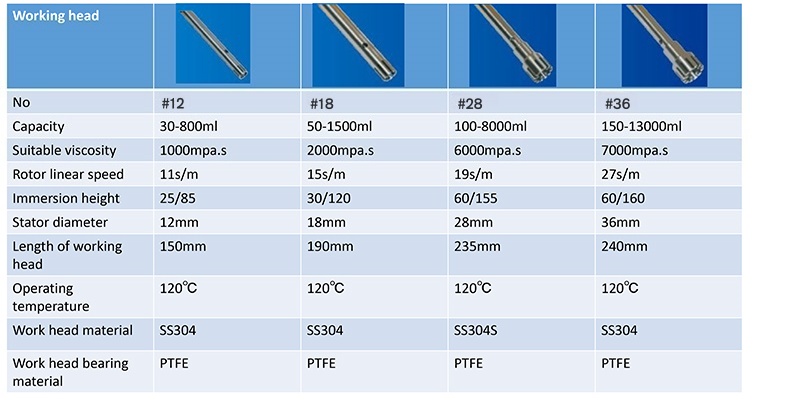

Optional working heads
