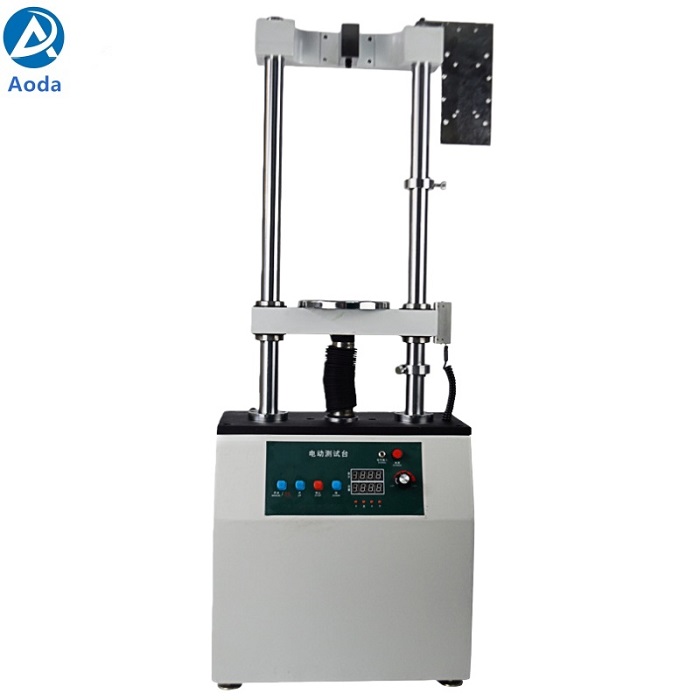

AEV Electric Vertical Double Column Machine

AEV Electric Vertical Double Column Machine

The electric vertical double-column testing machine is a push-pull load test stand specially used for digital display and pointer push-pull force gauge series. This product adopts double pole structure, which has the advantages

of good stability, wide application range, convenient use, etc., and has stepless speed regulation, manual (jog), automatic control switching functions. Suitable for rubber and plastic, light industrial textiles, building doors and windows, composite materials, wires and cables, auto parts, power machinery, scientific research institutions, etc.

The industry's push-pull load, insertion force, destruction test and other tests.

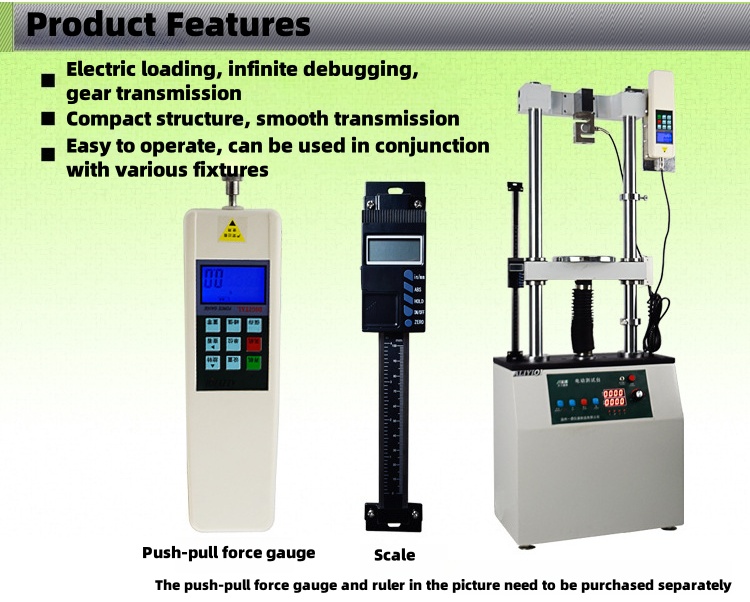

■ Electric loading, stepless speed regulation, gear transmission;

■ Compact structure and stable transmission;

■ Simple operation and can be used in combination with various fixtures.

· Maximum load: 5000N;

· Effective stroke: 220 / 450mm;

· Test speed: 60 ～ 240 mm / min;

· Working voltage: 220V;

· Dimensions: (mm): 640x400x2400;

· Net weight: 56 (58 for heightened type) kg.
