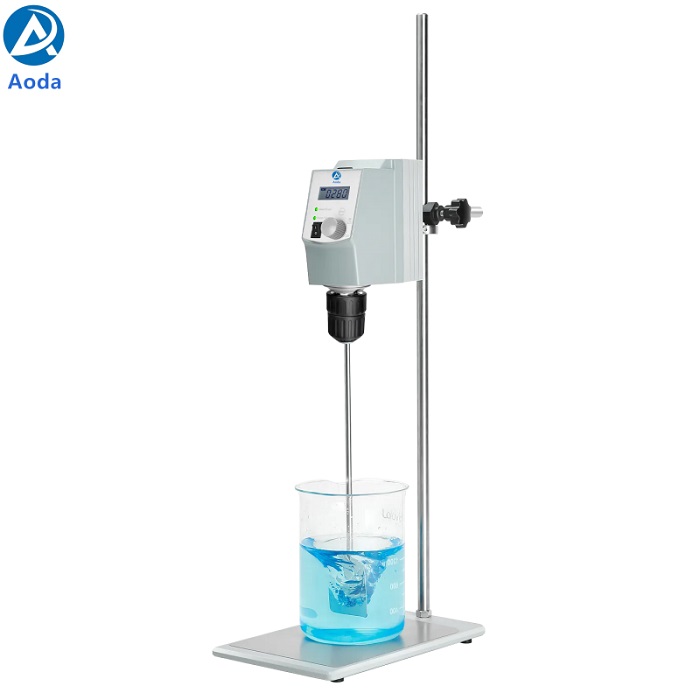

Aoda OS40-Pro 40L Laboratory Digital Overhead Stirrer

Aoda OS40-Pro 40L Laboratory Digital Overhead Stirrer

OS40-Pro Laboratory Digital Overhead Stirrer max load 40L,rotation speed 50-2200rpm....

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

Aoda OS40-Pro 40L Laboratory Digital Overhead Stirrer

The Overhead Stirrer is suitable for mixing medium to high viscosity liquids or solid-liquid mixtures. Mainly used in fields such as chemical synthesis, drug synthesis, physicochemical analysis and chemical industry.


Features 蓝.jpg

  • Stirring paddle “top- cross" design, easy to replace the container

  • LCD display of set and actual speed, torque

  • Spillage and overload protection safety circuits

  • Brushless DC motor for long life, maintenance free

  • Self - locking drill chuck, tools free

  • Start/run smoothly, prevent sample splatter or overflow

  • Constant speed despite viscosity change of the sample

  • Silicone cover protecting drill chuck from erosive vapor


Laboratory Digital Overhead Stirrer

Model

OS20-Pro

OS40-Pro

OS70-Pro

Max. stirring quantity[H2O]

20L

40L

70L

Rotation speed

50-2200rpm

50-2200rpm

50-1100rpm

Speed display accuracy

±3rpm

±3rpm

±10rpm

Max. torque

40N·cm

60N·cm

300N·cm

Viscosity max.

10,000mPa·s

50,000mPa·s

100,000mPa·s

Timer

/

/

0-99H59min

Parameters display

Speed,Torque,Overload protection

Communication interface

RS232

Chuck clamp range diameter

0.5-10mm

Protection class

IP21

Motor input power

60W

120W

180W

Motor output power

50W

100W

160W

Power

70W

130W

200W

Power supply

AC 100-240V, 50/60Hz

Weight

3kg

Size

83x220x186mm

Work environment

Temperature : 5-40C

Humidity ≤80%RH
