Aoda TU200P Portable Turbidity Meter

TU200P Turbidity meter measuring range (0~20.00) NTU,(20.0~200.0) NTU...

Fast Delievery
Quality Assurance
24/7 Customer Service

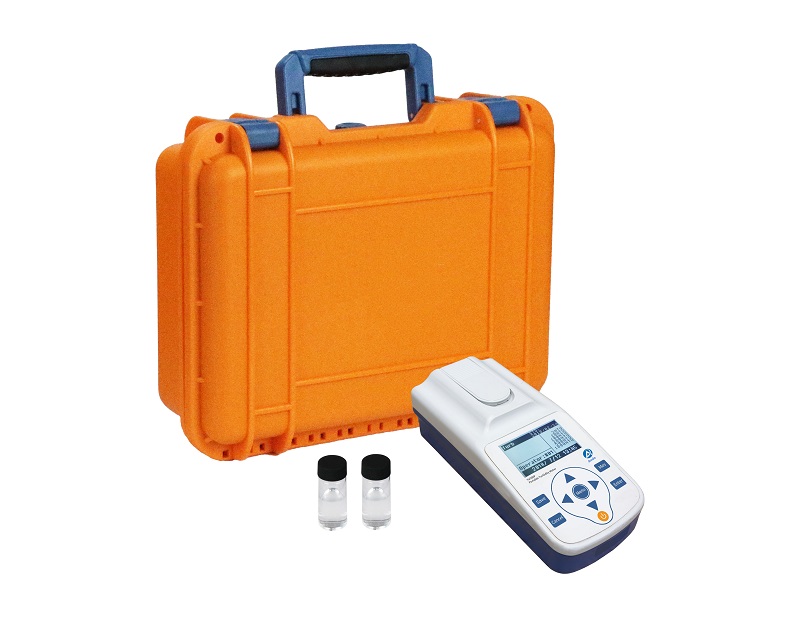

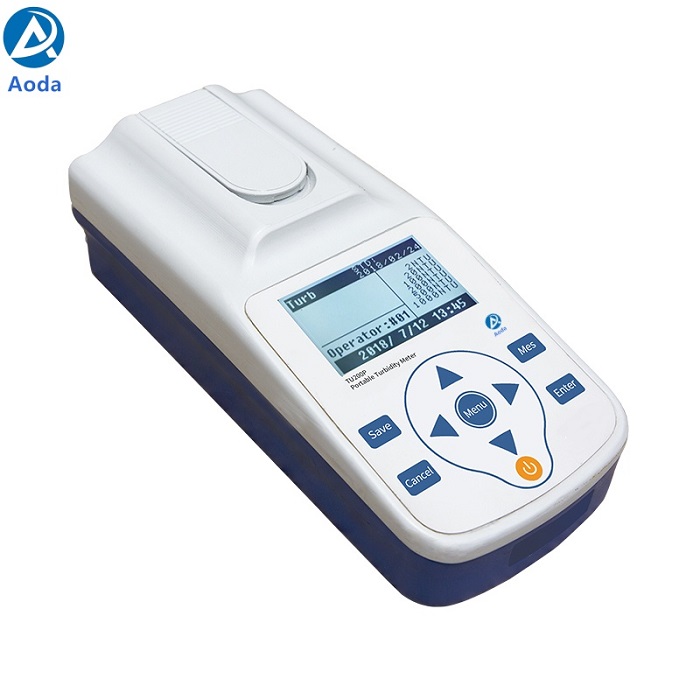

Aoda TU200P Portable Turbidity Meter

Turbidimeter is used to measure the scattering degree of light produced by insoluble particulate matter suspended in water or transparent liquid, and can quantitatively characterize the content of these suspended particulate matter. It can be widely used in turbidity measurement in power plants, pure water plants, water plants, domestic sewage treatment plants, beverage plants, environmental protection departments, industrial water, wine making industry, pharmaceutical industry, epidemic prevention departments, hospitals and other departments.

Features

850nm LED light Source.
Uses Nephelometric principle with 90° detection.
Meets ISO 7027 and offers consistent light source for higher accuracy.
Selectable turbidity units, including the NTU, FNU and EBC.
Settable parameters, including user ID, number of calibration points, data and time, etc.
Auto-power-off feature effectively extends the battery usage time.
IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.
1-3 points calibration using Formazin standards or zero water.
Autoranging from 0-200 NTU.

Specifications

Model		TU200P Turbidity meter
Measuring Unit	Range	(0~20.00) NTU, (20.0~200.0) NTU
	Resolution	0.01NTU, 0.1NTU, 1NTU
	Accuracy	±2% of reading+0.02NTU
	Repeatability	≤1.0%
	Fluctuation	±1.0% FS/30min
General	Power Supply	AA Battery, AC Adapter， 200-240 VAC input，DC 5V output
General	Dimension (mm)& Weight (kg)	100×220×80,0.8
