37XF-PC Inverted Biological Microscope ship to Brazil
Oct 30, 2024
37XF-PC Inverted Biological Microscope ship to Brazil

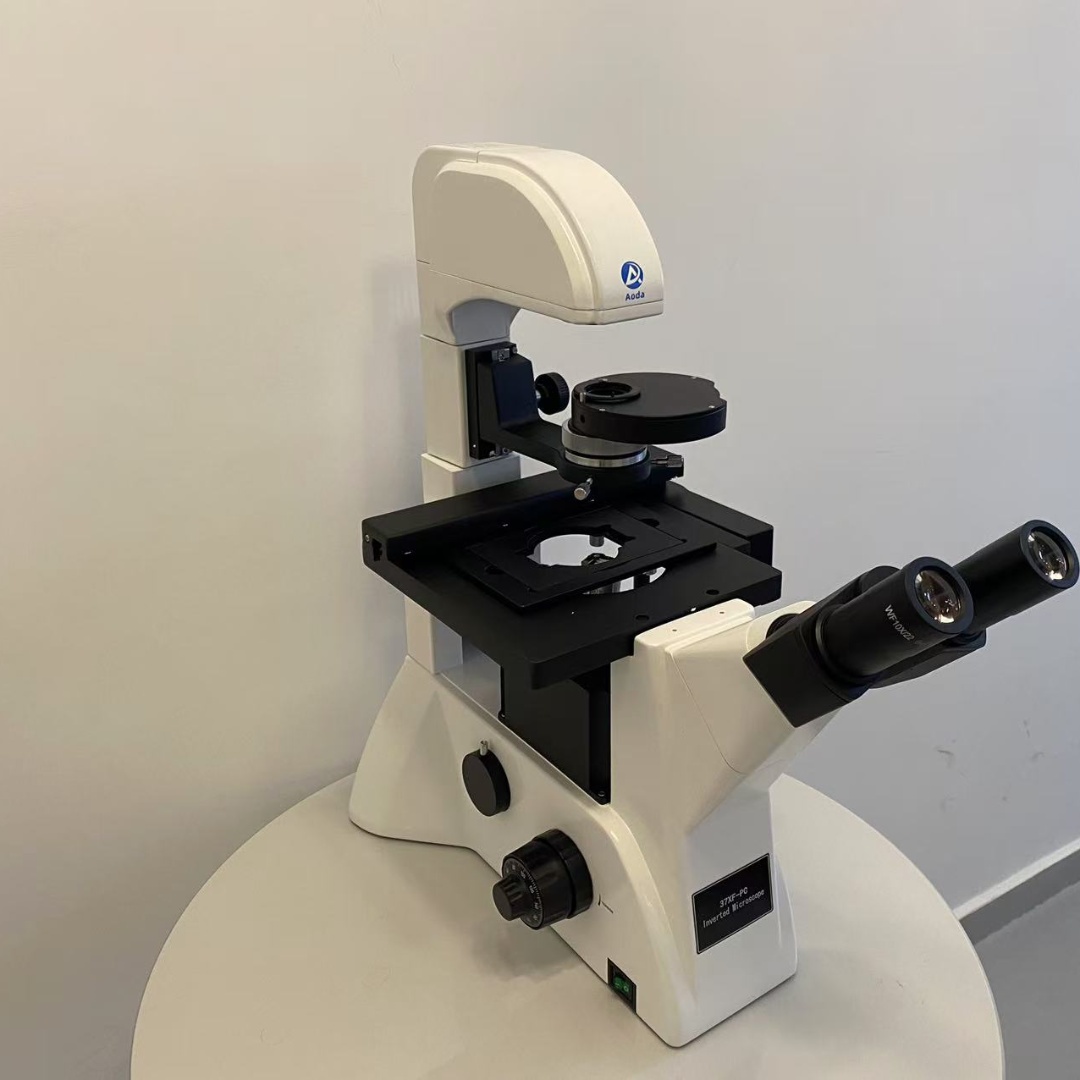

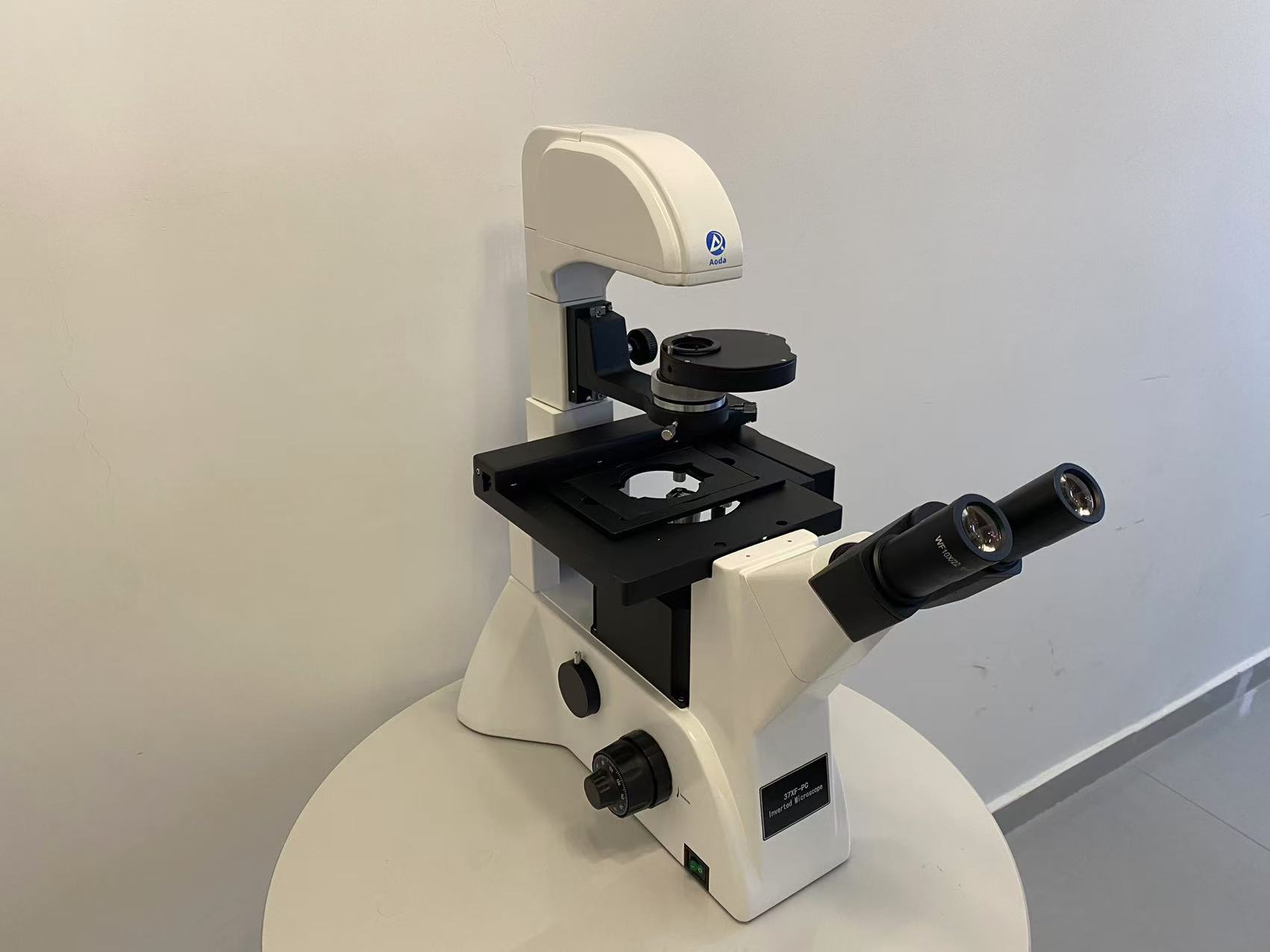

Product : 37XF-PC Inverted Biological Microscope
Purchase quantity : 1 set
Purpose : Do analysis for lab
Lead time : 5-7days after paying
Ship by Fedex
Technical specifications
1. Eyepiece tube: trinocular (tilted 45˚, 100% light-through photography)
2. Wide field eyepiece: WF10X (Φ20mm)
3. Objective lens
Infinity long working distance plan achromatic objective lens: 10X, 20X, 40X
Infinity long working distance plan phase contrast objective lens: 10X
Type | Enlargement factor | Numerical aperture | Operating distance (mm) | Remarks |
Long-distance phase-contrast objective lens | 10× | 0.25 | 4.3 | “PHP2” |
Infinite long distance flat field achromatic objective | 10× | 0.25 | 4.3 | |
20× | 0.40 | 8.0 | ||
40× | 0.60 | 3.5 |
4. Numerical aperture (N.A): 0.25, 0.4, 0.60
5. Working distance: 8.1 mm, 4.8 mm, 3.3 mm
6. Total magnification: 100X, 250X, 400X
7. Focusing mechanism: coaxial coarse and fine focusing, coarse and fine adjustment, with locking and limit device plate, fine adjustment value: 2μm.
8. Converter: five holes (ball internal positioning)
9. Stage
Fixed stage size: 227mm×208mm.
Glass round stage plate size: Ф118mm.
Mechanical moving size, moving range: horizontal (X) 114mm, vertical (Y) 77mm
10. Specimen rack
a. Petri dish support plate 1
b. Petri dish support plate 2
Inner groove size: 34mm (width) × 77.5mm (length), can adapt to round petri dishes Ф68.5mm
c. Petri dish support plate 3
Inner groove size: 57mm (width) × 82mm (length)
11. Plug-in type phase contrast device: centering telescope, 10X plug-in type phase contrast ring plate;
The condenser can be raised and lowered, NA.=0.4, working distance: 30mm
12. Condensing system: long working distance condenser, working distance 55mm, with turntable phase contrast device
13. Illumination system: 6V30W halogen lamp, adjustable brightness
14. Color filter: frosted glass, blue and green color filters
