BDS400-FL Trinocular Inverted Fluorescence microscope Ship to Honduras
Mar 10, 2025

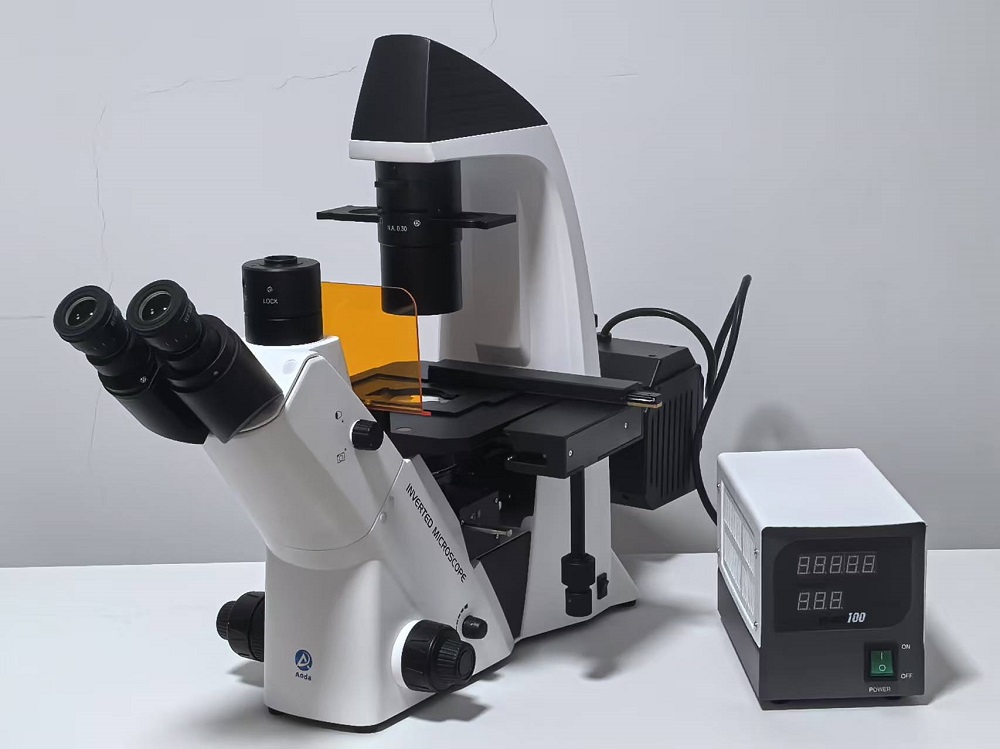

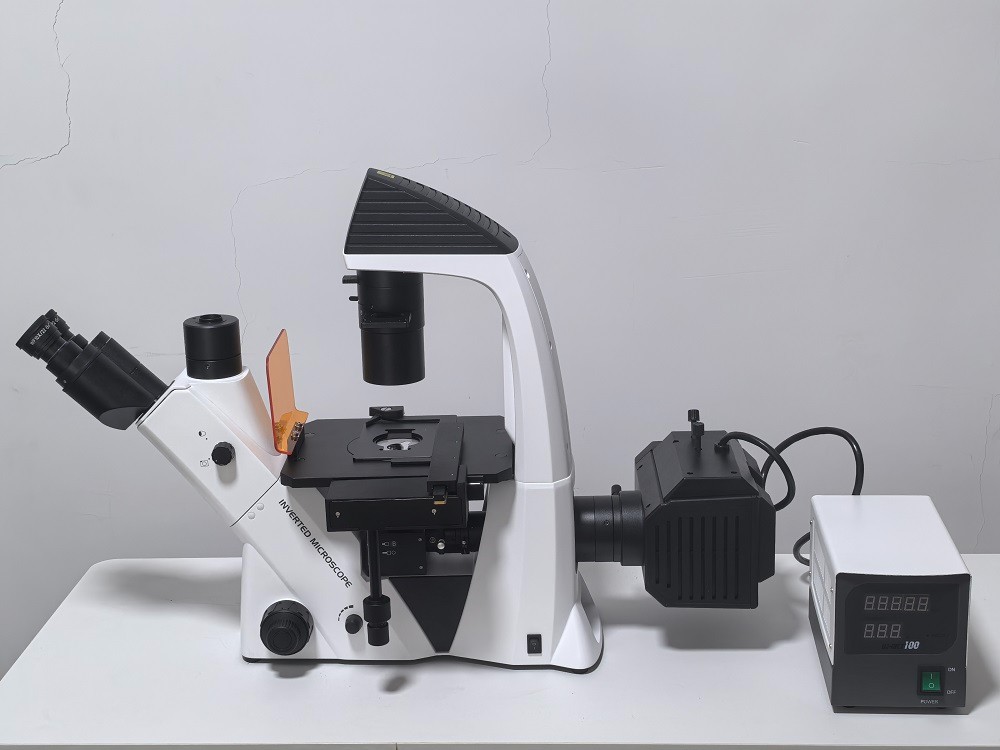

BDS400-FL Trinocular Inverted Fluorescence microscope Ship to Honduras
Product : Trinocular Inverted Fluorescence microscope
Quantity : 1set
Usage : for microscopic observation of live cells and cell culture in vitro
Lead time : 1 week after payment received
Ship by UPS,arrive in 7-10days
Long working distance condenser N.A. 0.30
Working distance, 72mm
Working distance: 195mm (without condenser), available for extra high culture dish.
Large size stage, convenient for research. Size: 240mm（X）× 210（Y）mm
A mechanical stage is available for the 96-hole plate. Moving range：128mm（X）× 80（Y）mm
Large diameter quintuple nosepieces can be installed more objectives, more convenient for use
Light distribution (both): 100 : 0 (100% for eyepiece); 80: 20 (80% for trinocular head and 20% for eyepiece)
| ltem | Specification | Outfits | |
| Eyepiece | WF10×/22mm | ●● | |
| LWD Infinity Plan Objectives | Plan FL 2X/0.06 | W.D.=7.2mm | ○ |
| L Plan FL 4X/0.11 | W.D.=12.1mm | ○ | |
| L Plan FL 10X/0.25 | W.D.=10.3mm | ○ | |
| L Plan FL 20X/0.45 | W.D.=5.8mm | ○ | |
| L Plan FL 40X/0.65 | W.D.=5.1mm | ○ | |
| LWD Infinity Plan Phase Contrast Objectives | L Plan FL PHP 4X/0.10 (Both for Bright Field &Phase Contrast) | W.D.=9.2mm | ○ |
| L Plan FL PHP 10X/0.25 (Both for Bright Field &Phase Contrast) | W.D.=10.3mm | ● | |
| L Plan FL PHP 20X/0.45 (Both for Bright Field &Phase Contrast) | W.D.=5.8mm | ● | |
| L Plan FL PHP 40X/0.65 (Both for Bright Field &Phase Contrast) | W.D.=5.1mm | ● | |
| LWD Infinity Plan Fluor Objectives | L Plan Fluor 10x/10.30 | W.D.=14.0mm | ○ |
| L Plan Fluor 20x/0.45 | W.D.=6.6mm | ○ | |
| L Plan Fluor 40x/0.65 | W.D.=3.9mm | ○ | |
| Annular Spot | 10×/20×/40× | ● | |
| 4× | ○ | ||
| Seidentopf Trinocular Head | Inclined 45°,interpupilary distance:48-76mm | ● | |
| Light distribution (both) | |||
| 100:0(100%for eyepiece) | |||
| 80:20(80%for trinocular head,and 20%for eyepiece) | |||
| Seidentopf Trinocular Head | Inclined 45°,interpupilary distance:48-76mm Light distribution (both): | ○ | |
| 100:0 and 0:100(100%for eyepiece or 100%for trinocular head) | |||
| Nosepiece | Quintuple | ● | |
| Mechanical Stage | Stage size:X×Y:210×241mm,Round slide size:φ110mm, | ||
| Attached mechanical stage | ● | ||
| (available for 96 holes plate,moving range X×Y:128×80mm.) | |||
| Culture Dish Holder | 65mm+35mm | ○ | |
| 54mm | ● | ||
| blood cell counter | O | ||
| Glass Holder | O | ||
| Universal Holder | O | ||
| Condenser Koehler Illumination | Long working distance,Quickly detachable,N.A.0.3, Working distance:72mm (with condenser),195mm(without condenser). | ● | |
| Koehler Illumination | 12V/30W(input voltage:100V～240V) | ● | |
| 5WLED (input voltage:100V～240V) | O | ||
| Filter(Φ34) | Blue | ● | |
| Green | ● | ||
| Amber IGrey | O | ||
| C-mount | 1X10.35X10.5X10.75X C-Mount (focus adjustable) | O | |
| Epi Fluorescence Illumination | Epi fuorescence media unit ,field diaphragm,center adjustable. | O | |
| 100W mercury lamp ,5WLED(input voltage:100V～240V) | O | ||
| B,G,V,UV fluorescence filters can be chosen | O | ||
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
