Class I Sonometer ship to Peru
May 21, 2025
Class I Sonometer ship to Peru

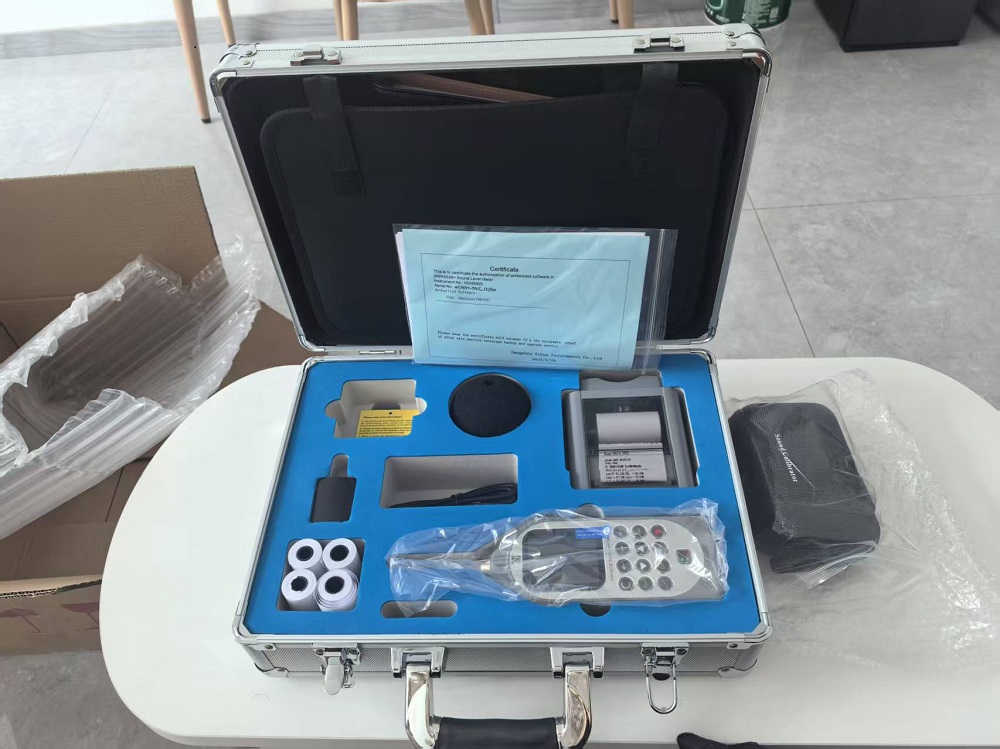

Product name : Class I Sonometer and Calibrator
Model : AWA6228+
Quantity : 1set
Ship to Peru by DHL
Measurement range 20~142dB;Accuracy : ±0.7;
Comply with IEC 61672 Class 1 and IEC61260 Class 1 and IEC 61252;
32G SD card function for precise audio recording, GPS positioning

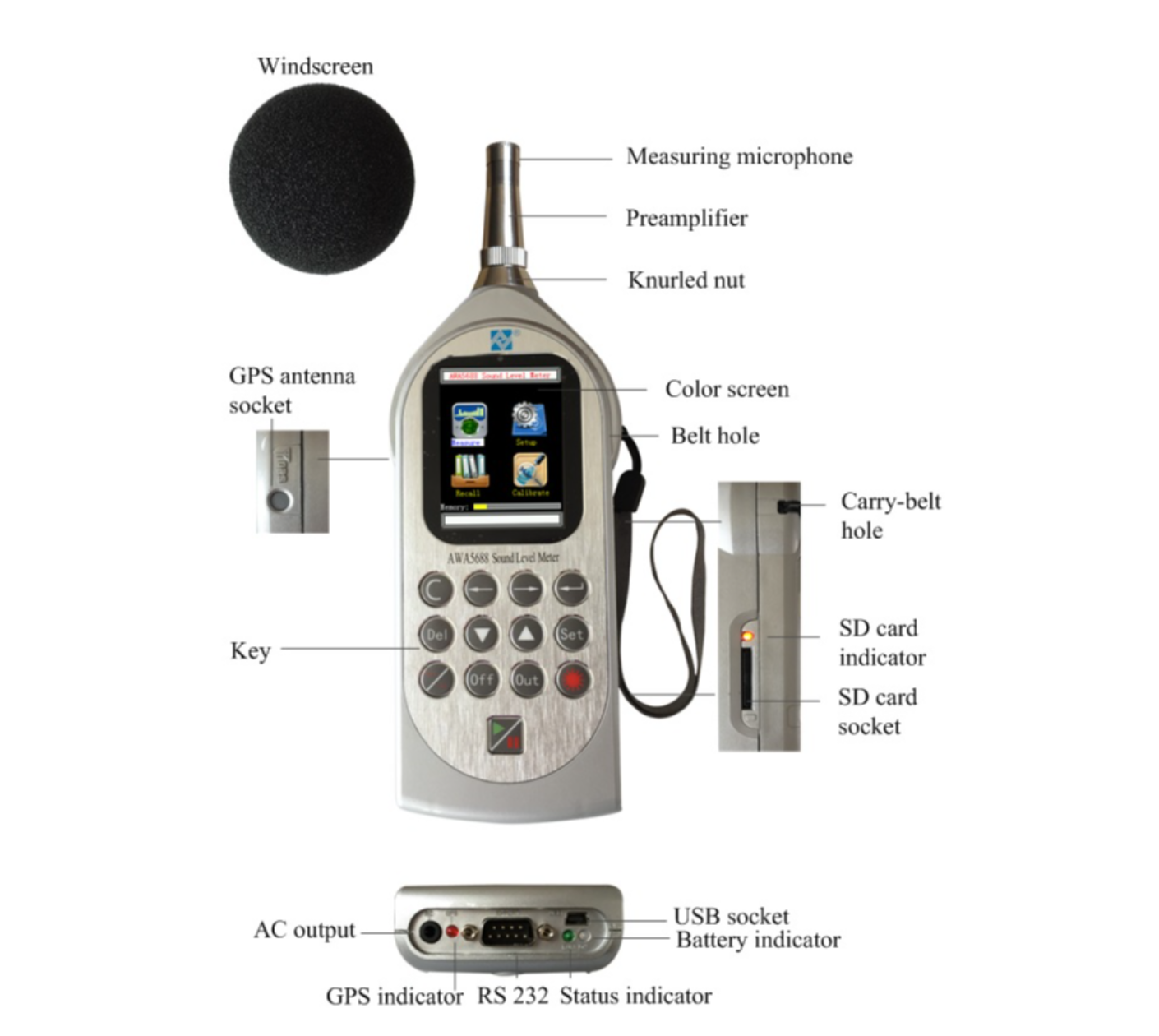

AWA6228+ Class I Multifunction Sonometer
Key Features
■ A handhold noise measuring instrument
■ Multifunction and user- friendly sound level meter(integrating SLM, 1/1 OCT, 1/3 OCT analyzer, Noise dosimeter)
■ 240×320 color screen
■ Measurement range 20~142dB
■ Synchronously do statistical, real-time 1/1 OCT, 1/3 OCT, and noise dosimeter measure
■ Comply with IEC 61672 Class 1 and IEC61260 Class 1 and IEC 61252
■ CE Mark
■ 32G SD card function for precise audio recording, GPS positioning
Model | AWA6228+ Multifunction Sound Level Meter |
Fulfills Standards | IEC 61672 Class 1, IEC 61260 Class 1, IEC61252:2002, IEC 60651:2001 Type 1, IEC 60804: 2000 Type 1, ANSI S1.4: 1983 Type 1, ANSI S1.4A:1985 Type 1, ANSI S1.43:1997 Type 1, ANSI S1.25:1991 |
Microphone + Preamplifier | 1/2” prepolarized condenser microphone+ Preamplifier (Sensitivity Level: -28dB) |
Correction Function | Diffusion field correction in order to comply with standards ANSI S1.4 |
Preamplifier | AWA14601 removable preamplifier |
Frequency Range | 10 Hz ~ 20 kHz ± 1 dB (not including microphone) |
Total Measurement Range | Low range: (20～132)dBA, (25-132)dBC, (30-132)dBZ High range: (16～142)dBA, (35-142)dBC, (40-142)dBZ |
Self-generated Noise | <12 dB(A), 17 dB(C), 22 dB(Z) |
Frequency Weighting | Parallel (simultaneous) A, C, Z, B, D and user1&2-defined weighting |
Time Weighting | Parallel (simultaneous) F, S, I, Peak |
A/D Bits | 24 bits |
Sampling Frequency | 48 kHz |
Calibration | Using Sound Calibrator Class 1 model AWA6221A |
Correction Function | Diffusion field correction in order to comply with standards ANSI S1.4 |
Delay Time | The meter can delay 0~99s after pressing start measuring button |
Back Erase Function | Elimination of undesired noise; example barking dogs, cars, doors |
Display | 240×320 color screen, adjustable brightness, backlight can be closed |
Display Resolution | 0.1 dB |
Low battery indication | Symbol indicate low battery |
Data Storage (32 Mb FLASH RAM. SD card is optional) | ◆ 3328 groups of integrating measuring results only. |
◆ 3328 groups of statistical results only (‘statistical 1’ and ‘statistical 2’ analysis index are same.) | |
◆ 2663 groups of statistical results only (‘statistical 1’ and ‘statistical 2’ analysis index are different.) | |
Mini-printer | |
Internal Clock | Error less than 1 min/month |
Output Interface | AC Output (full scale): 1.0V AC RMS; Output Impedance: 1k Ω; Connector: φ3.5 mm stereo plug |
DC Output: 20mV/dB; Output Impedance: 1k Ω; Connector: DB-9 plug | |
RS232 Interface: To computer for output some measurement results instantaneous values , also to mini-printer for printing Transmission speed: 4800, 9600,115200 bps | |
USB Interface: available and no need device drive. Allow USB to be controlled via communication commands | |
Power Supply | 4×LR6 alkaline battery or rechargeable batteries |
5 V external power supply | |
Battery Life | Longest time of 30 hours continuously with 4×LR6 alkaline battery |
Dimensions | 260 (H) x 80 (W) x 30 (D), mm. |
Weight | 0.35 kg. (include batteries) |
EMC | Type X |
Environment | Working Temperature: -10 ~ 50 °C, Storing Temperature: -20 ~ 70 °C, Relative Humidity: 25 ~ 90 % |
Accessories | AC adaptor, USB cable, RS232 transmission cable, windscreen, hand strap, windscreen fall prevention rubber, carrying case, U-disk, user’s manual |
Bluetooth Module | Wireless printing |
