BDS500-FL Inverted fluorescence microscope ship to Mexico
Jun 24, 2025
BDS500-FL Inverted fluorescence microscope ship to Mexico
Product name : Inverted Fluorescence microscope + 12M Plex microscope camera
Quantity :1 set
Purpose : Microbial observation
Ship by Fedex. Arrive in a week.

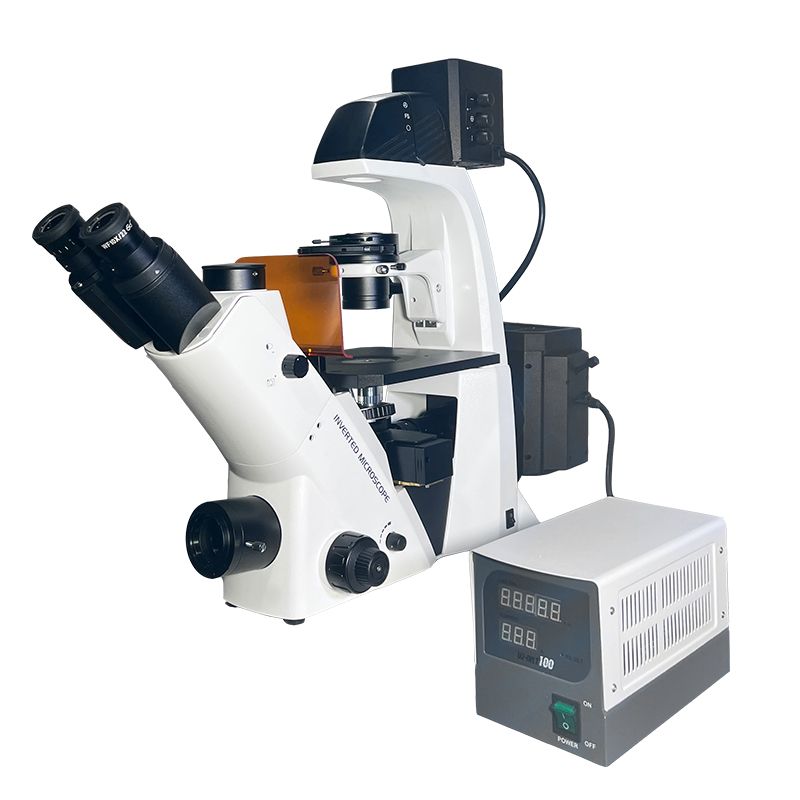

BDS500-FL Inverted fluorescence microscope
Item | Specification | Outfits | ||
Eyepiece | WF10X／22mm (adjustable) | ●● | ||
Centering telescope | ● | |||
LWD Infinity Plan Objectives | L Plan FL 4X／0.11 | W.D.=12.1mm | ● | |
L Plan FL 10X／0.25 | W.D.=10.3mm | ○ | ||
L Plan FL 20X／0.45 | W.D.=5.8mm | ○ | ||
L Plan FL 40X／0.65 | W.D.=5.1mm | ○ | ||
LWD Infinity Plan Phase Contrast Objectives
| L Plan FL PHP 4X／0.10 (Both for Bright Field & Phase Contrast) | W.D.=9.2mm | ○ | |
L Plan FL PHP 10X／0.25 (Both for Bright Field & Phase Contrast) | W.D.=10.3mm | ● | ||
L Plan FL PHP 20X／0.45 (Both for Bright Field & Phase Contrast) | W.D.=5.8mm | ● | ||
L Plan FL PHP 40X／0.65 (Both for Bright Field & Phase Contrast) | W.D.=5.1mm | ● | ||
Annular Spot | 10×/20×/ 40× | ● | ||
4× | ● | |||
Seidentopf Trinocular Head | Inclined 45°, interpupilary distance: 48-76mm Light distribution (both): 100: 0 （100% for eyepiece） 80:20 (80% for trinocular head, and 20% for eyepiece) | ● | ||
Seidentopf Trinocular Head | Inclined 45°, interpupilary distance: 48-76mm Light distribution (both): 100: 0 and 0:100 (100% for eyepiece or 100% for trinocular head) | ○ | ||
Adaptor for Digital Photography | 100% light for Photography Port (Adaptor for CANON or NIKON SLR Digital Photography Camera) | ● | ||
Nosepiece | Quintuple | ● | ||
Mechanical Stage | Stage size: X×Y 210×241mm， Round slide size：φ110mm Attached mechanical stage(available for 96 holes plate, moving range X×Y: 128×80mm.) | ● | ||
Culture Dish Holder | 65mm | ○ | ||
54mm | ● | |||
35mm | ○ | |||
blood cell counter | ○ | |||
Glass Holder | ○ | |||
Universal Holder | ○ | |||
Condenser | 4-hole rotating disc phase contrast condenser N.A.0.4, W.D.45mm, It can be up-down adjusting | ● | ||
Koehler Illumination | 12V/50W Halogen, input voltage: 100V～240V | ● | ||
5WLED, input voltage: 100V～240V | ○ | |||
Filter | Blue | ● | ||
Green, | ● | |||
Amber / Grey | ○ | |||
C-mount | 1 X/ 0.35X/0.5X /0.75X C-Mount (focus adjustable) | ○ | ||
Epi Fluorescence Illumination | Epi fluorescence media unit , field diaphragm，center adjustable. | ● | ||
100W mercury lamp ,5WLED(input voltage: 100V～240V) | ● | |||
B, G, V, UV fluorescence filters can be chosen | ● | |||
Infinity Fluorescence objective | L Plan Fluor 10X/0.3 W.D.=10mm | ○ | ||
L Plan Fluor 20X/0.45 W.D.=6.6mm | ○ | |||
L Plan Fluor 40X/0.6 W.D.=3.5mm | ○ | |||
LWD Infinity Plan Fluor Objectives | L Plan Fluor 10x | 0.30 | 14.0 | ○ |
L Plan Fluor 20x | 0.45 | 6.6 | ○ | |
L Plan Fluor 40x | 0.65 | 3.9 | ○ | |
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
Packing Size: 660mm×590mm×325mm Gross Weight: 18 kgs Net Weight: 13.5 kgs
