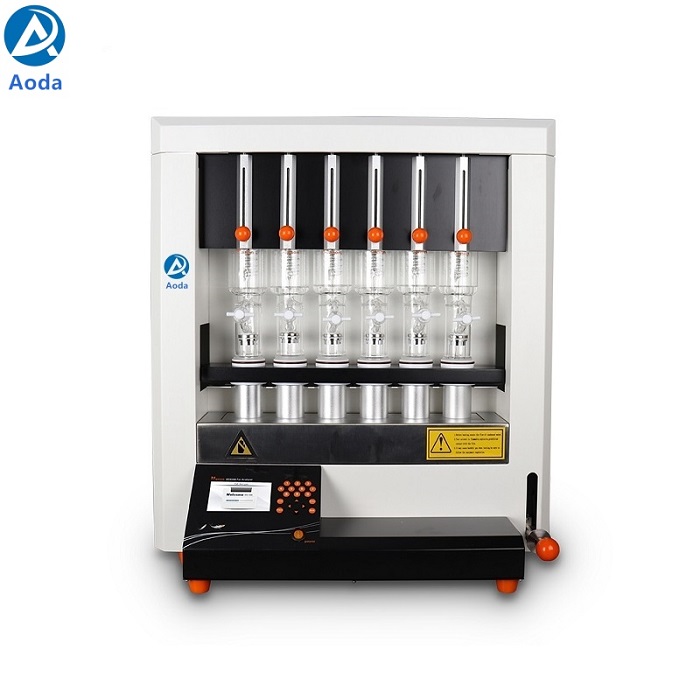

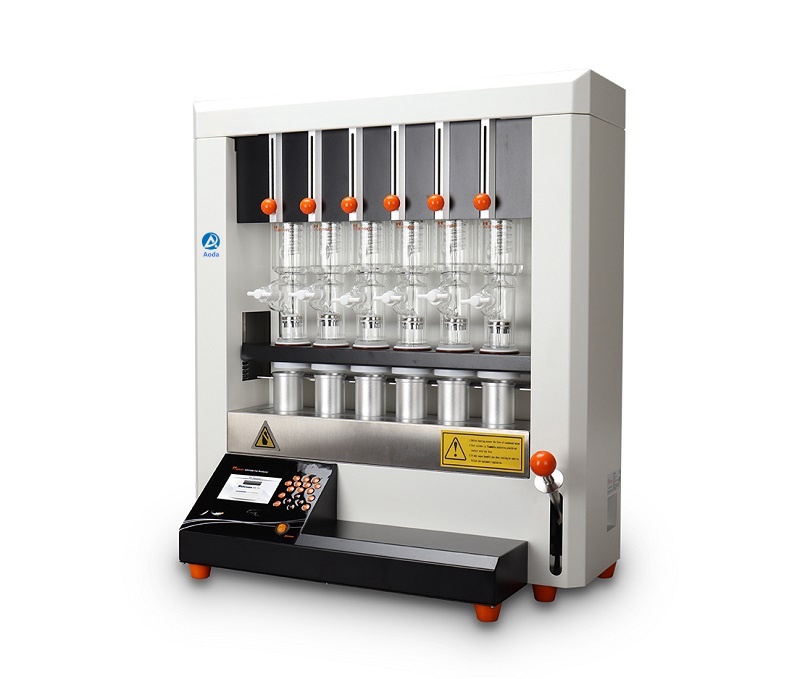

Aoda SOX406 Soxhlet extraction Fat analyzer
SOX406 Fat Analyzer can quickly separate one substance from solid or semi-solid mixtures, can determine the soluble organic compounds contained in foods, feeds, medicines, soil, sludge, polymers, fiber products, petrochemical products, detergents, rubber,...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Aoda SOX406 Soxhlet extraction Fat analyzer
SOX406 Fat Analyzer is based on the Soxhlet extraction principle and integrates such functions as soaking, extraction, leaching, heating, condensation, and solvent recovery. It features sealed metal bath heating with automatic temperature control, ensuring uniform heating and safe operation; six samples can be tested at the same time, and optimal temperature can be selected according to the difference between reagent boiling point and ambient temperature to achieve quick analysis; reagents can also be recycled to reduce test cost; and soaking, extraction and solvent recovery can be done in one step. Therefore, this device is characterized by reasonable design, stable performance, good reproducibility, high accuracy, easy operation, saving time and effort, and so on.
SOX406 Fat Analyzer can quickly separate one substance from solid or semi-solid mixtures, can determine the soluble organic compounds contained in foods, feeds, medicines, soil, sludge, polymers, fiber products, petrochemical products, detergents, rubber, plastics, and other materials.
Integral metal heating, while the scope and high precision of temperature control
The electric circuit is isolated from the extraction space, ensuring devices security
Over-temperature alarming and timer reminding functions are available
The timer circuit is isolated from the extraction space, ensuring device security
Triple alarms i.e. sound, light, LCD screen word prompts are available
Abundant interface contents give simultaneous display of given temperature, actual temperature, given time, and heating time
The lifting connection of linear bearing conduction technique gives smooth and comfortable lifting operation
Intelligent man-machine dialogue control system
Exclusive air insulation technique leaves the case in room temperature, has thermal insulation and temperature maintenance two functions
4.3" LCD screen and microcomputer control system are adopted
Temperature range | Room temperature +5℃～280℃ |
Measuring range | 0～100% |
Temperature accuracy | ±1℃ |
Sample weight | 0.5～15g(generally 2~5g,depending on sample) |
Capacity per batch | 6pcs/batch |
Solvent cup volume | 80mL |
Solvent recovery | ≥80% |
Shortened extraction time | 20~80% |
Power supply | 220VAC±10%, 50Hz |
Power | 1KW |
Dimensions | 650mm×320mm×715mm |
Net Weight | 35Kg |
 |  |
Q : What is Soxhlet Extraction?
A : Soxhlet extraction is a laboratory technique used for the extraction of compounds from solid materials. It involves the continuous washing of the sample with a solvent, through a cycle of boiling and condensation, enabling efficient extraction of the desired compounds into the solvent.
Q : How Does Soxhlet Extraction Work?
A : The process starts with placing the solid sample in a thimble within the Soxhlet apparatus, which is then placed atop a flask containing the extraction solvent. Upon heating, the solvent vaporizes, condenses in a condenser, and drips onto the sample. The solvent chamber fills until the siphon tube initiates a solvent exchange, allowing the extract to flow back into the flask. This cycle repeats, ensuring thorough extraction.
Q : What Are the Advantages of Soxhlet Extraction?
A : High extraction efficiency through continuous, repeated solvent washing. Suitable for extracting compounds from a small amount of material. Requires minimal monitoring once set up. Can extract compounds with varying solubilities by changing the solvent.
Q : What Are the Disadvantages of Soxhlet Extraction?
A : Time-consuming, often taking hours to complete. Potential degradation of heat-sensitive compounds due to prolonged exposure to heat. Not suitable for volatile compounds due to the risk of evaporation with the solvent.
Q : What Solvents Can Be Used in Soxhlet Extraction?
A : The choice of solvent depends on the compound of interest’s solubility. Common solvents include ethanol, hexane, dichloromethane, and ethyl acetate. The ideal solvent should have a good solubility for the target compound and a boiling point that allows efficient cycling in the Soxhlet apparatus.
Q : Can Soxhlet Extraction Be Used for All Types of Samples?
A : Soxhlet extraction is most effective for solid samples with compounds that are not volatile or sensitive to heat. It is not suitable for volatile organic compounds or thermally unstable substances.
Q : What Is the Typical Duration of a Soxhlet Extraction?
A : The duration of a Soxhlet extraction can vary widely, typically ranging from a few hours to overnight, depending on the compound’s solubility, the solvent used, and the sample matrix.
