Aoda Medical Fully automatic Pulsating vacuum autoclave sterilizer

Aoda Medical Fully automatic Pulsating vacuum autoclave sterilizer

Fully automatic Pulsating vacuum autoclave sterilizer with fully automatically route of the water inlet, pulse vacuum, heating. sterilizing,draining. exhausting and vacuum drying....

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

Aoda Medical Fully automatic Pulsating vacuum autoclave sterilizer

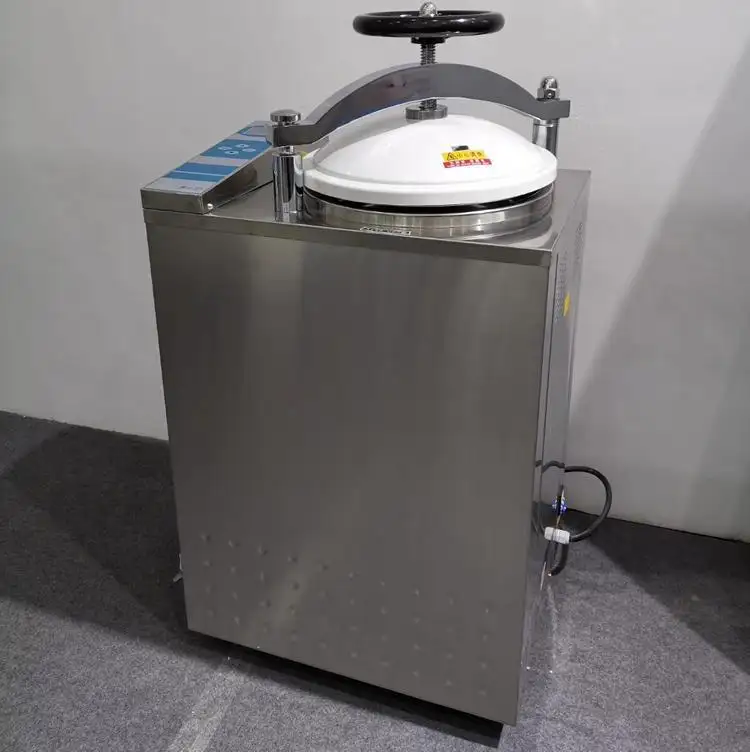

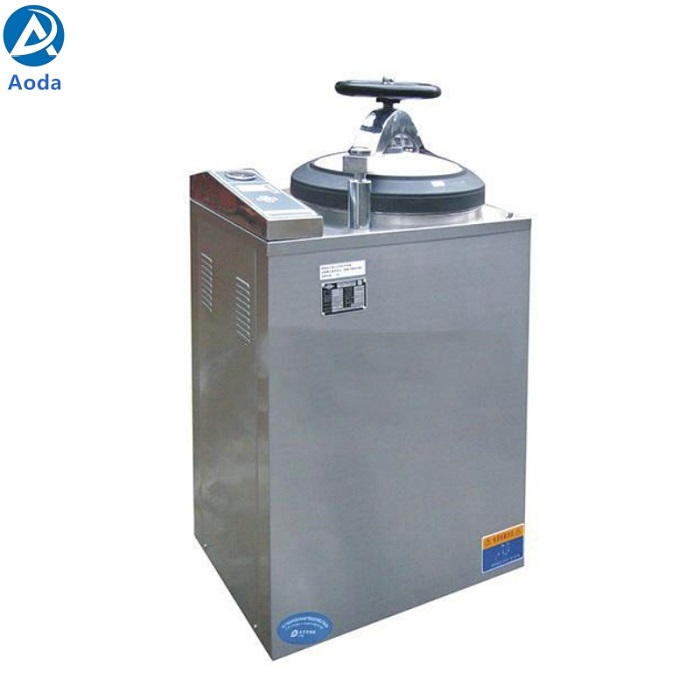

The vertical Fully automatic Pulsating vacuum autoclave sterilizer are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.



Characteristics

• Microcomputer controlled, digital display of working statues, touch type key.

• It dynamically shows the temperature, pressure time ,vacuum rate and the cycle status.

• With fully automatically route of the water inlet, pulse vacuum, heating. sterilizing,

• draining. exhausting and vacuum drying.

• 3 times pulse vacuum, the vacuum rate would reach -0.081mpa after that, which ensurethe completely extracting of inner air from the dressing and A,B typc hollowed appliance.

• With 4 fixed programs for the appliance, medical dressing, rubber and fluid, the user alsocould sct the program as they need randomly.

• Equipped with the PY/TT testing connector, easy for running the testing.

• Multiple pulsc vacuum drying after sterilizing. which ensure the goodsterilizing result.

• Equipped with 0.22pum bacteria filter, it ensure the air which enter theinner vacuumed chamber is sterilc. avoid thc second time contamination.

• Hand wheel type for quick- -open the door. Sclfinflating type seal.

•The design pressure is 0.3MPa.

• The maximum working pressure is 0.21mpa.

• The vacuum pumping limit is 0.081mpa.

• The designed pressure bearing range of the cavity is: - 0.1mpa-0.3mpa.

• Adopted with immersed heating tube, with high heating fficiency.

• Steam-watcr inner circulation system: no steam discharge. and the environment for the      sterilizing will be clean and dry.

• Automatically shut off with beep reminding after sterilization.

• Fully high quality stainless, equipped with double stainless steel baskets.



Technical Data

LS-HV series Fully automatic Pulsating vacuum autoclave sterilizer

MODEL

LS-50HV

LS-75HV

LS-100HV

Chamber volume

50L

φ340×550mm

75L

φ400×600mm

100L

φ440×650mm

Working pressure

0.22Mpa

Working temperature

134℃

Max. working pressure0.23Mpa

Heat average

≤±1℃

Timer range

0-99min

Temperature adjust range

0-134℃

Power

3000W/AC220V 50HZ

4500W/AC220V 50HZ

4500W/AC220V 50HZ

 Overall dimension(mm)690×470×1140730×510×1270750×550×1305
Transport dimension(mm)760×550×1290820×600×1380840×640×1410

G.W/N.W

120Kg/100Kg

140Kg/118Kg

160Kg/128Kg
