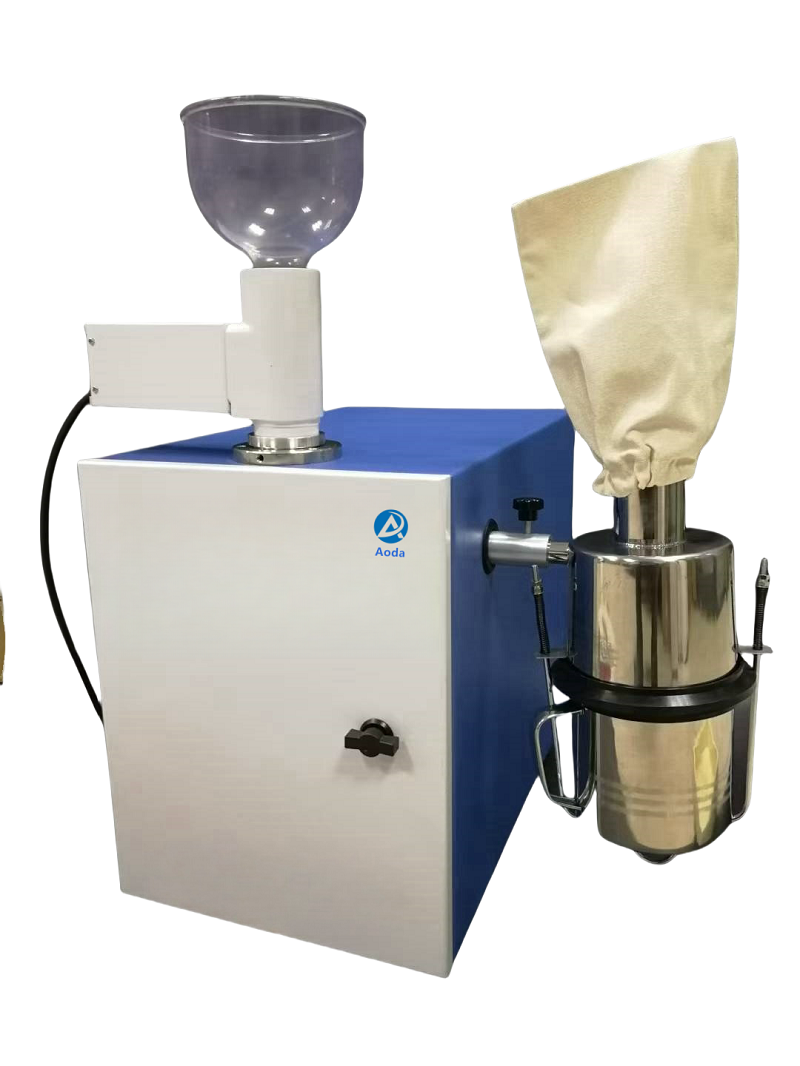

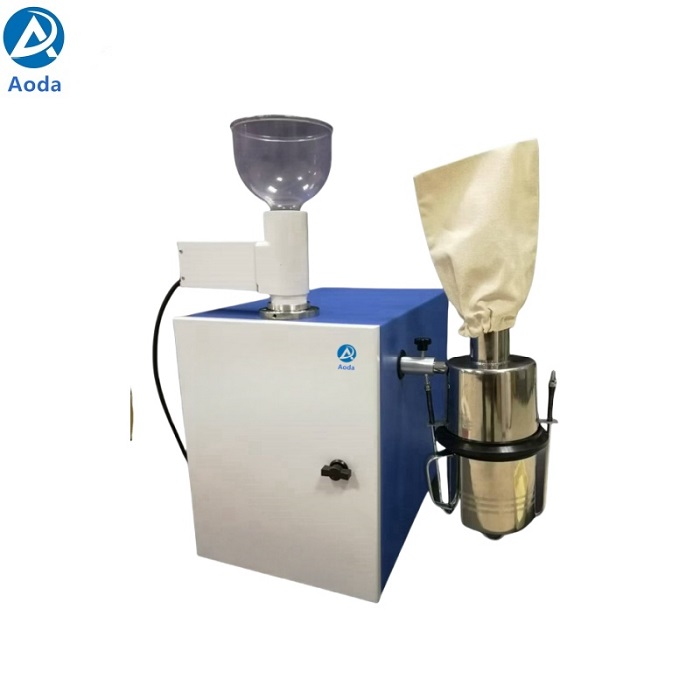

Aoda JXFM-110 Sample crushing and grinding Hammer Mill

Aoda JXFM-110 Sample crushing and grinding Hammer Mill

JXFM110 Hammer mill is suitable for crushing and grinding wheat, corn and other samples in grain and oil inspection studios, scientific research units, etc. It has the characteristics of beautiful

appearance, compact structure, simple operation, stable operation, durability, high speed, high efficiency, and fine crushed materials.

There are two types of Hammer mills: fully automatic and semi-automatic. The fully Hammer mill is equipped with a fully automatic feeder.

Features of the Hammer mill

1. High speed, high efficiency, and fine crushed materials. The sample is hammered into fine and uniform powder by a high-speed mill, and enters the integrator with the high-speed airflow through a

stainless steel screen to prepare the sample.

2. The inner wall of the box is pasted with domestic advanced sound-absorbing and insulating materials, and the noise is lower than similar products at home and abroad

3. The motor has a built-in temperature protector. Once the motor exceeds the set temperature, it will automatically shut down, and it can restart after the temperature drops to normal.

4. The automatic feeder can be directly installed, which can effectively control the feeding speed of samples with high moisture content and hulled grain samples, and improve the crushing effect.

5. The crushed sample is suitable for the determination of gluten quantity, quality, grain viscosity, wheat falling number, near-infrared composition and other indicators.

6. Built-in protection switch, safe to use.

7. The instrument is not suitable for measuring sample moisture.

Technical parameters of the Hammer Mill

Power supply: AC220±10V 50Hz

Motor power: 750W

Working room diameter: 110mm

Hammer speed: 16800r/min

Sieve plate aperture (mm): 0.5, 0.8, 1.5mm

Machine weight: 51kg
