Aoda PQ001-Fiber NMR fiber oiling rate analyzer

Aoda PQ001-Fiber NMR fiber oiling rate analyzer

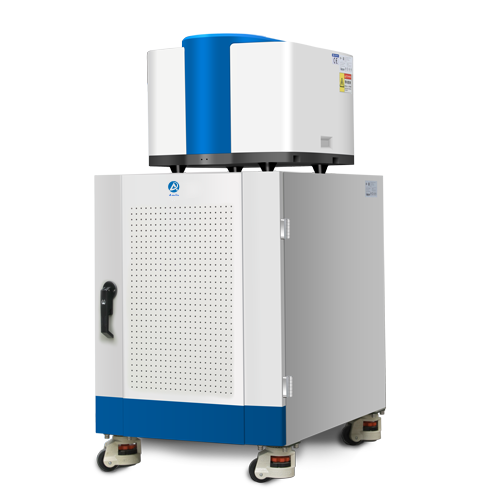

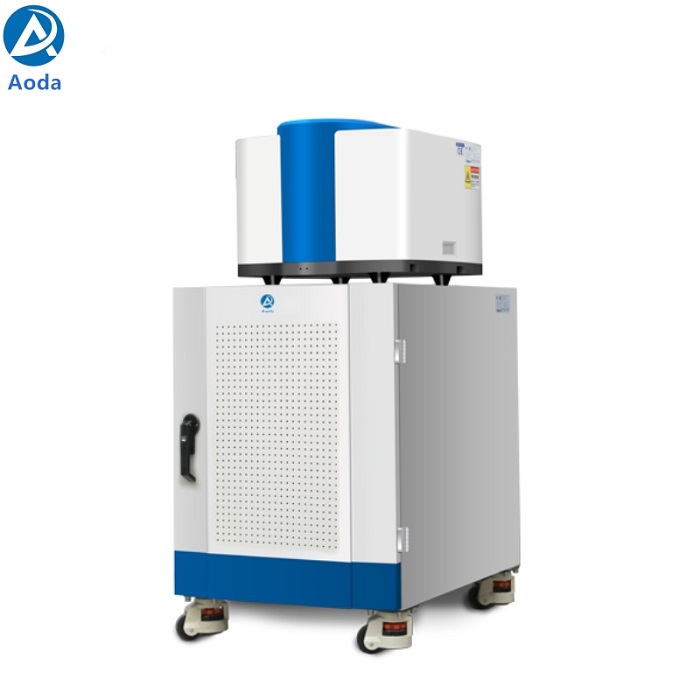

PQ001-Fiber NMR Fiber Oil Content Analyzer is a small NMR specially designed for fiber enterprises. It has been maturely applied to the analysis and testing of fiber oil content. It is equipped with professional fiber oil content testing software. The test is convenient and fast, and the software operation is user-friendly and very easy to use.

PQ001-Fiber NMR(Nuclear Magnetic Resonance) Fiber Oil Content Analyzer integrates advanced technology and is continuously upgraded in terms of appearance design, hardware configuration, and software operation, ensuring the effective combination of excellent product performance and friendly customer experience.

Fiber oiling rate test except spandex :

Repeatability of fiber oiling rate relative standard deviation (oil content ≥ 1%) ≤ 1.0%;

Repeatability of fiber oiling rate relative standard deviation (0.5% < oil content < 1%) ≤ 2.0%;

Repeatability of fiber oiling rate relative standard deviation (0.2% < oil content ≤ 0.5%) ≤ 3.0%;

Extreme difference of fiber oiling rate repeatability (0.1% ≤ oil content ≤ 0.2%) ≤ 0.04%

Spandex fiber oiling rate test :

Repeatability of fiber oiling rate relative standard deviation (oil content ≥ 1%) ≤ 2.0%;

Repeatability of fiber oiling rate relative standard deviation (0.5% < oil content < 1%) ≤ 4.0%;

Repeatability of fiber oiling rate relative standard deviation (0.2% < oil content ≤ 0.5%) ≤ 6.0%

Magnet type: permanent magnet

Magnetic field strength: 0.5T±0.01T

Sample size range: Ø16mm*H40mm cylinder

Magnetic uniformity: ≤30ppm
