Aoda LGJ-30F Laboratory commercial in situ freeze drying Pilot Freeze dryer
Pilot Freeze dryer freeze drying in situ,prevent sample pollution during transfering....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Aoda LGJ-30F Laboratory commercial in situ freeze drying Pilot Freeze dryer
Our Freeze Dryer offers a range of specialized products, including ultra-low-temperature freeze dryers with partition temperatures of -55°C, -65°C, -75°C, and -100°C. These are widely used in domestic research institutions and biopharmaceutical companies.
Our Pilot Freeze dryer advantage
1. Meeting Unique Sample Requirements:
In fields like pharmaceuticals, life sciences, and specialized materials freeze-drying, some products have critical temperatures lower than those conventional freeze dryers can handle. Our Freeze Dryer achieve breakthroughs by using targeted design and process optimizations.
2. Compliance with Industry Standards:
SONYAN Freeze Dryer adhere to strict standards such as U.S. FDA CFR PART 11 and updated GMP requirements. Our proprietary control systems ensure user-friendliness and process compliance.
3. Tray and Cold Trap Technology for Uniform Drying:
Specialized tray and cold trap technology in Our Freeze Dryer deliver uniform drying. The stable control system simplifies process optimization.
4. Rapid Heating and Cooling:
Heating and cooling
rates of up to 1°C/minute match industrial freeze dryers.
5. Thermal Radiation Layer:
The top tray functions as a thermal radiation layer for even heating.
6. Hygienic Design:
Our Freeze Dryer use high-quality stainless steel for sample contact materials, ensuring easy cleaning.
7. Advanced PLC System:
Our systems utilize the same PLC technology as industrial freeze dryers, offering precise control and process repeatability.
Our Pilot Freeze dryer specification
Model | LGJ-20F Standard | LGJ-30F Standard | LGJ-50F Standard | LGJ-100F Standard | |
Freeze Drying Area | ㎡ | 0.3 | 0.4 | 0.7 | 1.03 |
Cold Trap Temperature | ℃ | ＜-75 (no-load) | |||
Vacuum Level | Pa | ≤1 (no-load) | |||
Shelf Temperature Range | ℃ | -55-+70 (no-load) | |||
Maximum ice capacity | kg/24h | ≥6 | ≥8 | ≥10 | ≥15 |
Number of Shelf Layers | pcs | 3+1 | 4+1 | 4+1 | 6+1 |
Material Tray | mm | 400×270 | 340×300 | 480×360 | 480×360 |
Shelf Spacing | mm | 70 | 50 | 50/ Optional 70 | 70 |
Overall Power | kW | 3 | 4.5 | 5.5 | 6.5 |
Weight | kg | 300 | 400 | 600 | 700 |
Dimensions | mm | 1033×781×1580 | 825×928×1366 | 823×1008×1420 | 876×1190×1727 |
Loadable Materials | L/kg | 3 | 4 | 7 | 10 |
Defrost Mode | - | Electric Defrost | Natural Defrost | Natural Defrost with Optional Electric Defrost | Electric Defrost |
Safety Devices | - | Audible Alarm, Emergency Stop Switch, Overpressure Protection | |||
Power Supply | - | Single-phase 3-wire, 220 volts | Single-phase 3-wire, 220 volts | Single-phase 3-wire, 220 volts Three-phase 5-wire, 380 volts | Three-phase 5-wire, 380 volts |

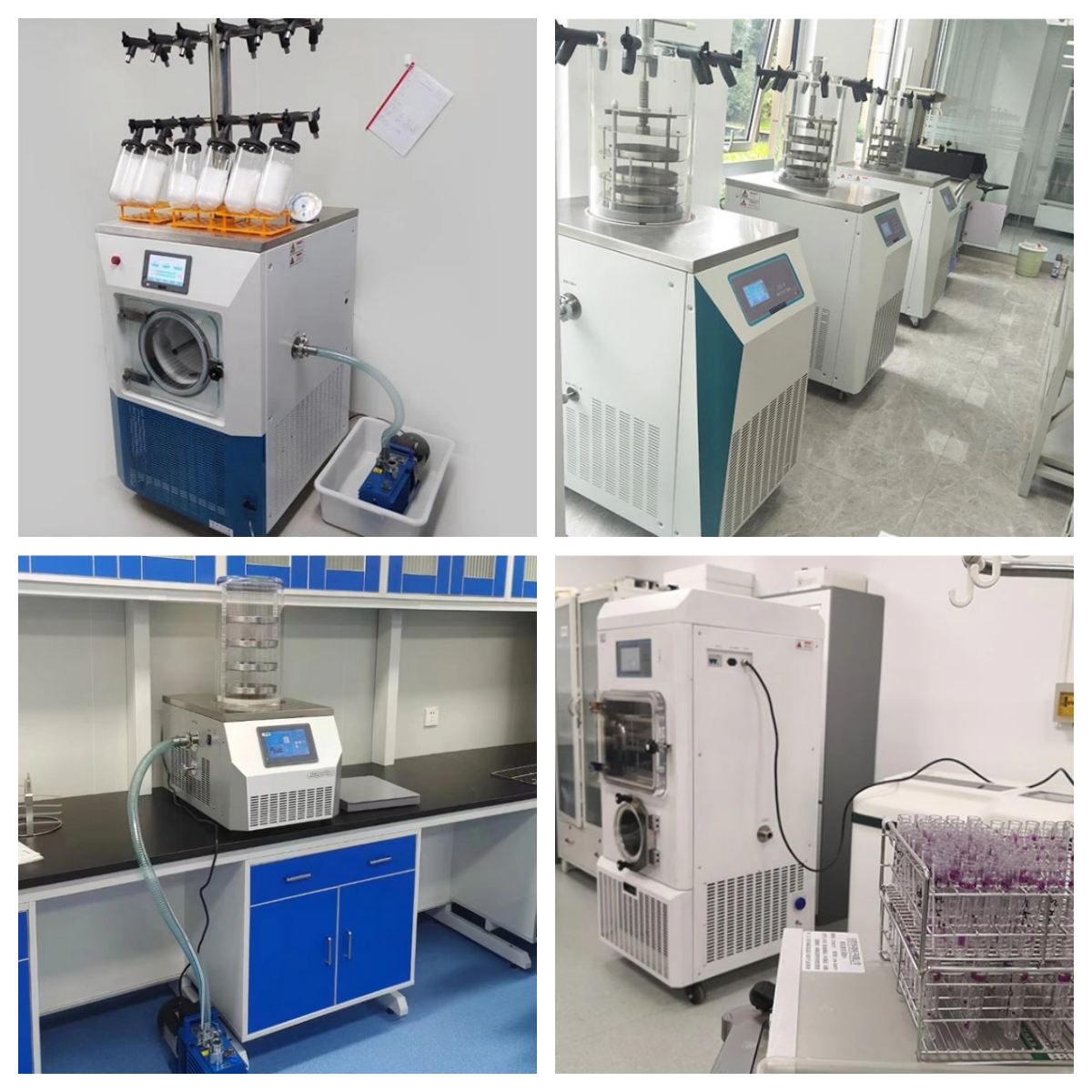

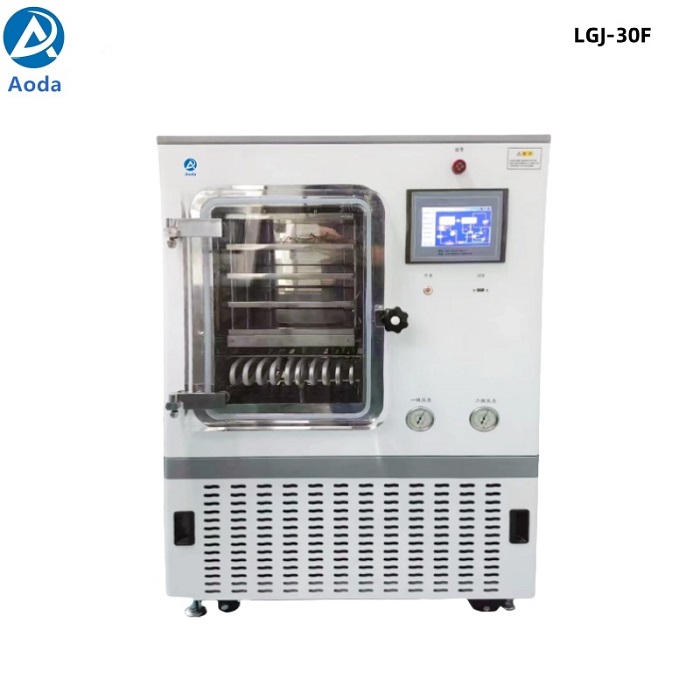

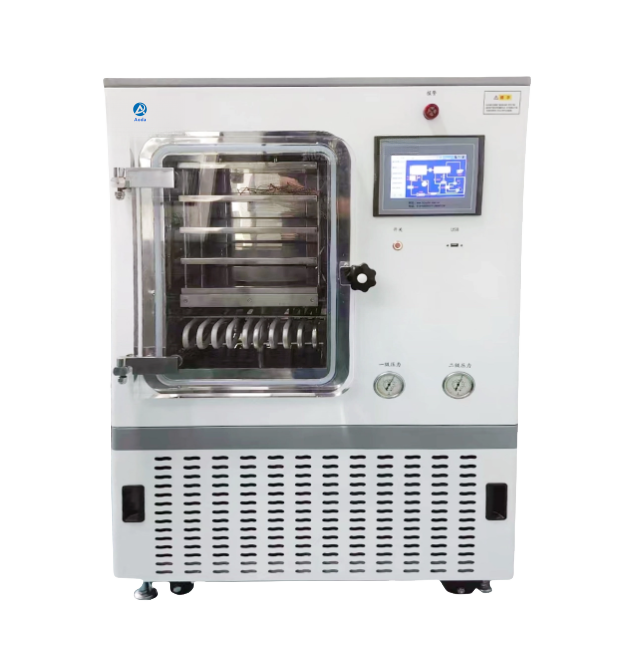

LGJ-30F Silicon oil heating Pilot Freeze dryer photo

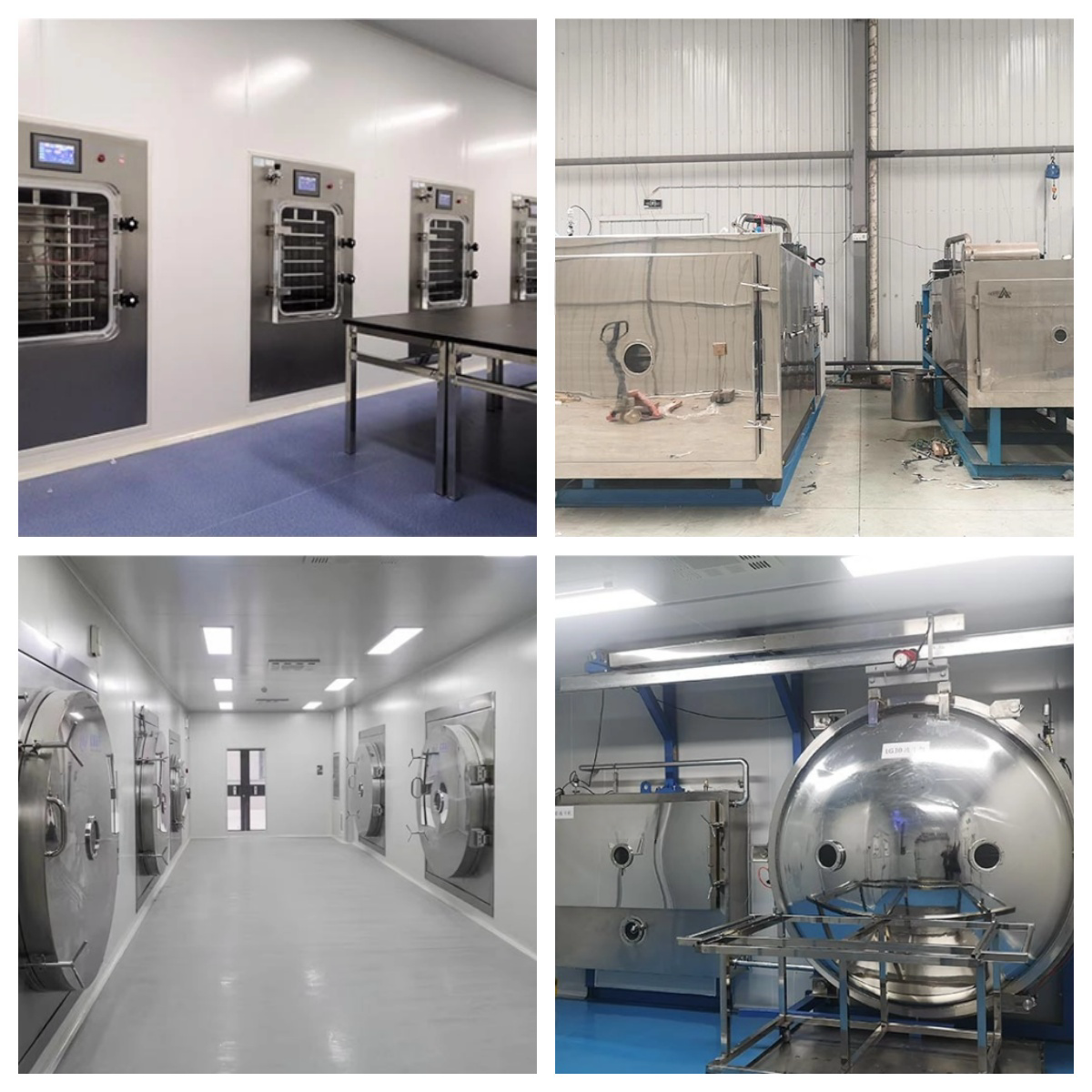

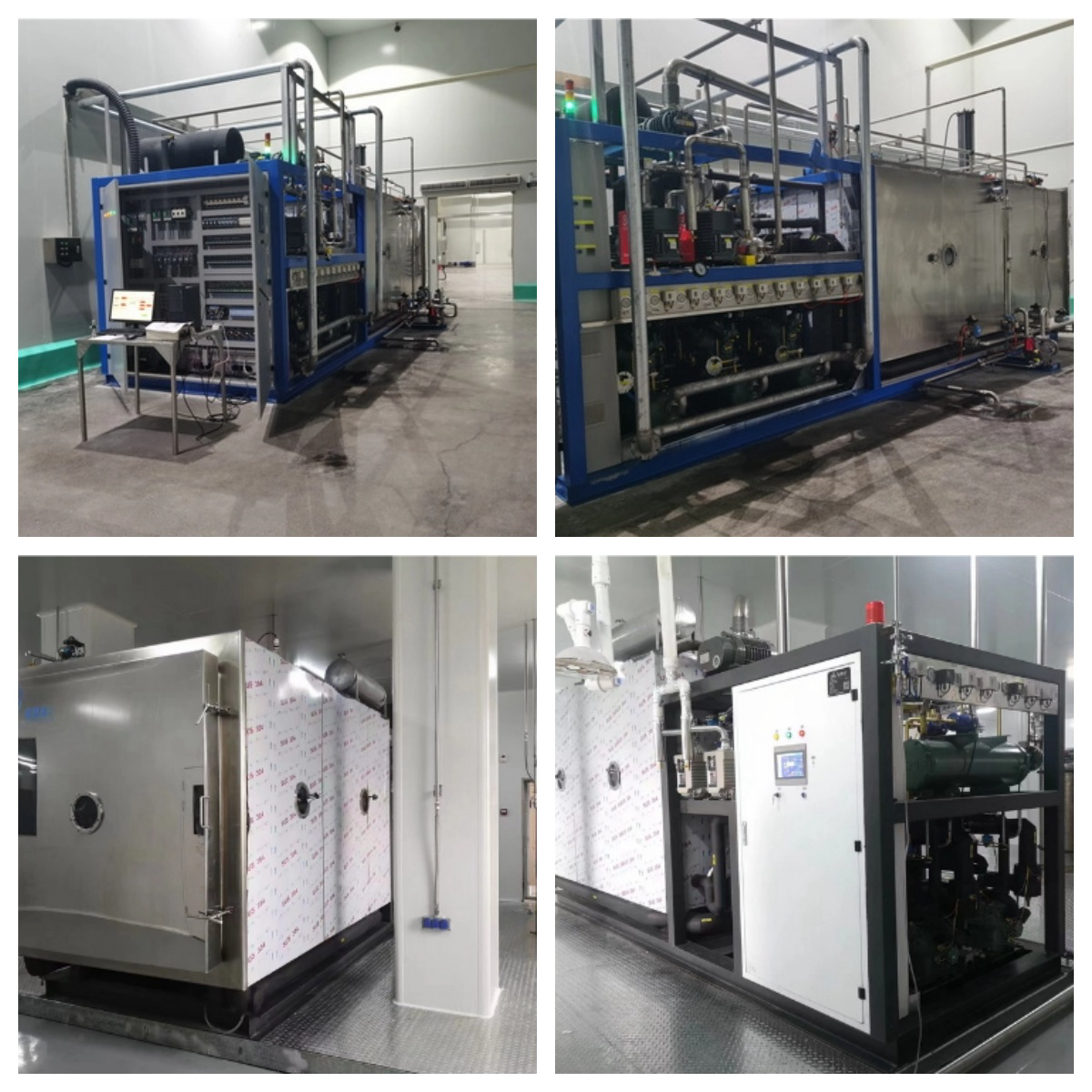

Factory & Workshop
