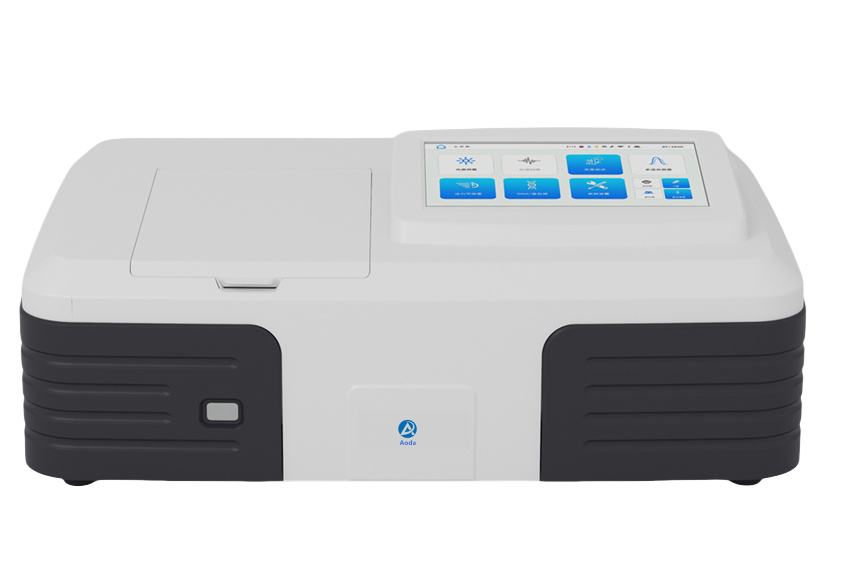

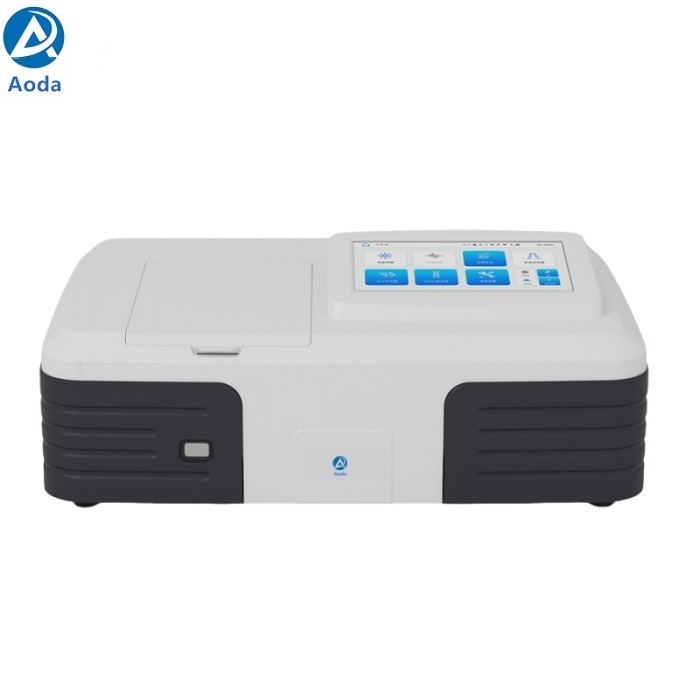

Aoda X9DS Double beam UV-Vis spectrophotometer with Peltier temperature control

Aoda X9DS Double beam UV-Vis spectrophotometer with Peltier temperature control

Double beam UV-Vis spectrophotometer,10inch touch screen,with Peltier temperature control...

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

Aoda X9DS Double beam UV-Vis spectrophotometer with Peltier temperature control

X9DS touch screen dual beam UV visible spectrophotometer features a brand new optical path design, superior instrument performance, and a high-resolution 10.1-inch touch screen, greatly meeting the analytical needs of professional users. It can be widely applied in scientific research and production in various fields such as organic chemistry, biochemistry, food inspection, environmental protection, and life sciences.


Features 蓝.jpg

  • A dual-beam optical system ensures high performance stability and low background noise of the instrument.

  • A 10-inch high-definition smart true-color touch screen with sensitive touch operation and clear display of data and spectra

  • Perfect data analysis function, the host can independently complete photometric measurement, quantitative measurement, spectralscanning, dynamics, DNA/protein testing, multi-wavelength testing and data printing and other functions.

  • Adopts the suspension optical system design, and the overall optical path is independently fixed on the 20 mm thick cut aluminumdefomation-free base.

  • The deformation of the bottom plate and extemal vibration do not afect the optical system, thus improving the stability and reliability of the instrument

  • Six-speed spectral bandwidth can be adjusted to meet the multi-dimensional needs of users.

  • The storage function is perfect, and the data can be exported to the USB fash drive, the instrument can be connected to a universal inkjet printer (HP1100/1200 series) to directly realize the output of A4 paper report.

  • Large data storage capacity (eguiamount to PC terminal), users do not need to worry about instrument storage space.

  • The standard meta-analvsis company's spectral scanning software can achieve more poweful data processing functions in addition to all the test functions of the host when operating online

  • The software follows GLP/GMP laboratory usage specifications and has buit-in complete user management, logging, data storage trace ability and report output functions

  • It can be equipped with automatic multi-connection pool rack, trace color tray rack, constant temperature automatic sampler, reiective accessonies, rotary solid sample rack integral ball and other accessoriles to meet the multi-dimensional testing needs of user and expand the application field of the instrument.


Model

X9DS Double beam UV-Vis spectrophotometer

Optical system

Double beams

Wavelength range

190-1100mm

Light source

Deuterium lamp,Tungsten lamp

Spectral bandwidth

0.1/0.2/0.5/1.0/2.0/4.0nm

Operation mode

Stand-alone / connected computer dual modes

Display screen

10 "high-definition intelligent touch screen

Wavelength accuracy

±0.3nm

Wavelength repeatability

≤0.1nm

Photometric accuracy

±0.2%T0-100%T

Photometric repeatability

≤0.1%T(0-100%T)

Stray light

≤0.01%T

Noise level

0.3%T

Data output

USB/USB flash drive, WIFI/Bluetooth (optional)

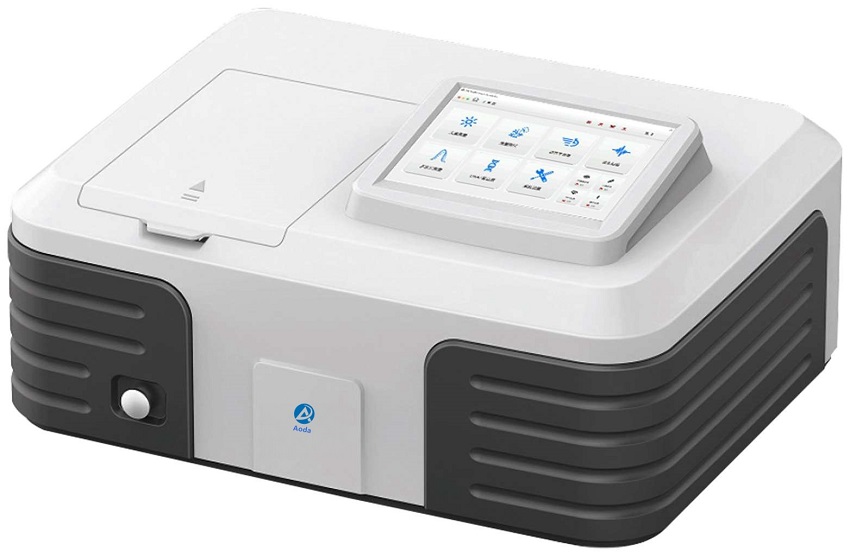

Product photo 蓝.jpg

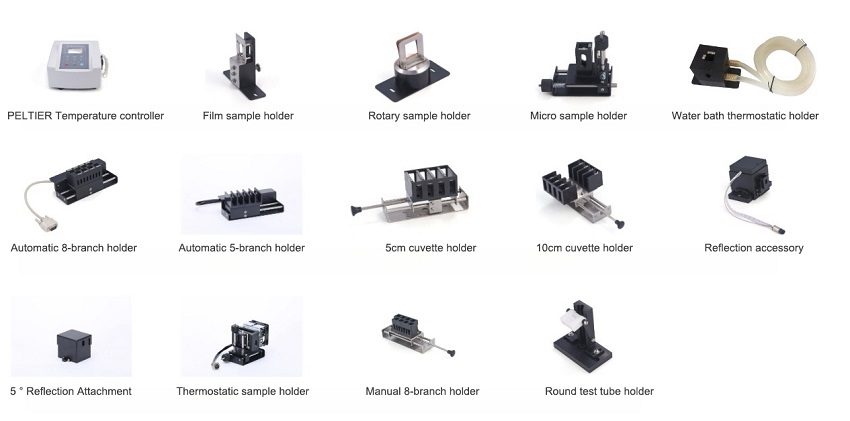

Optional parts for X9DS Double beam UV-Vis spectrophotometer
