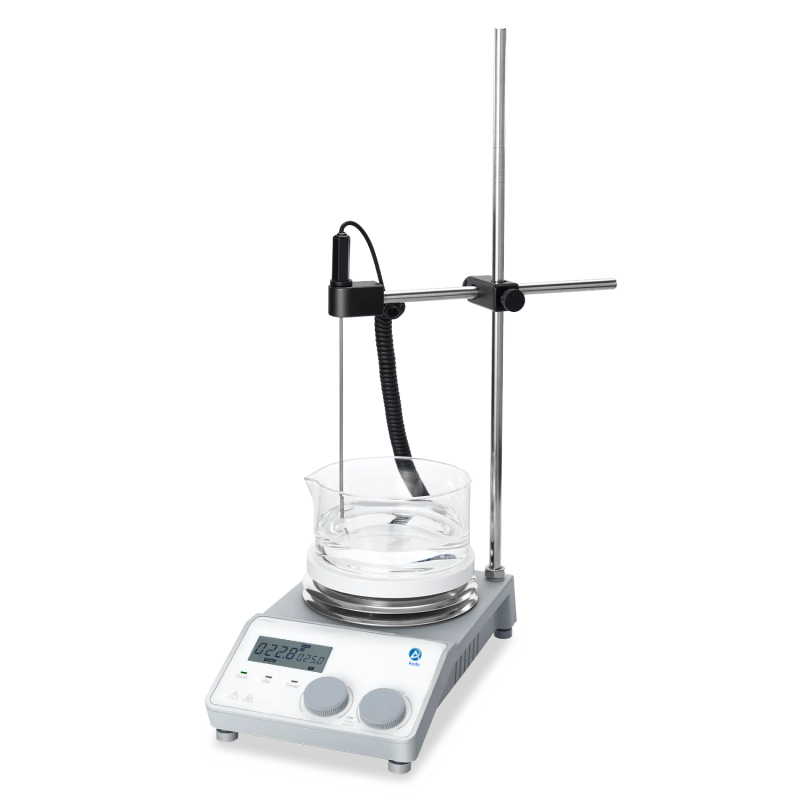

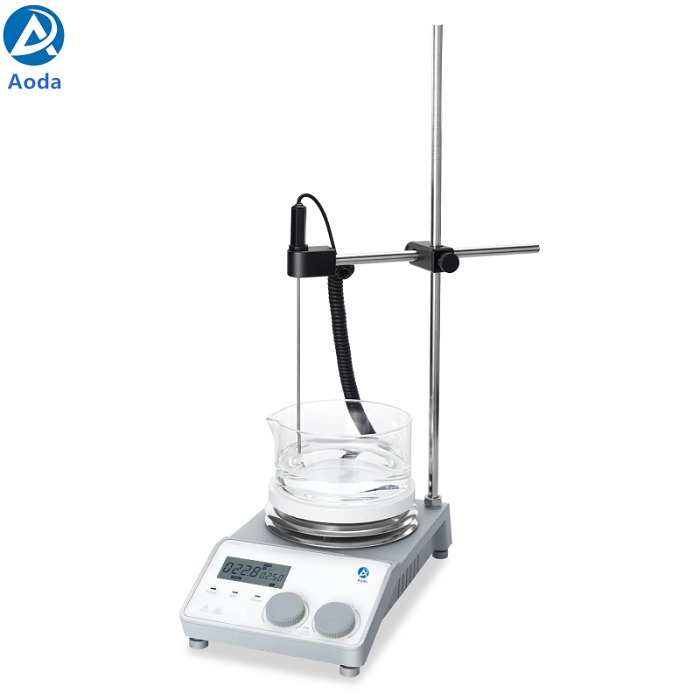

Aoda MS-H-ProA LCD Digital Magnetic Hotplate Stirrer
MS-H-ProA LCD Digital Magnetic Hotplate Stirrer Digital temperature control up to 340°C...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Aoda MS-H-ProA LCD Digital Magnetic Hotplate Stirrer
DC brushless motor free of maintenance and spark, and with long service life
Digital temperature control up to 340°C
Digital speed control up to 1500rpm
Maximum stirring quantity of H2O is 20L
Safety circuits provide overheating protection
"HOT" warning flashes if plate temperature is above 50°C even when hotplate is turned off
External temperature control is possible by connecting the temperature sensor(PT 1000)with accuracy at ±0.2°C
Work plate with ceramic coating provides good chemical-resistantperformance
Remote function provides PC control and data transmission
Wide variety of accessories available to choose
| Work plate Dimension | Ø135mm（5 inch） |
| Work plate material | Aluminum cover with ceramic coating |
| Max. stirring quantity [H2O] | 20L |
| Speed range | 100-1500rpm |
| Heating temperature range | Room temp.-340℃，increment 1℃ |
| Temperature control accuracy | ±1℃(<100℃) ±1%(>100℃) |
| Temperature display accuracy | ±0.1℃ |
| External temperature sensor | PT1000 ( accuracy±0.2℃ ) |
| "Hot" warning | 50℃ |
| Overheating temperature protection | 420℃ |
| Stirring positions | 1 |
| Max. magnetic bar length | 80mm |
| Data connector | RS232 |
| Timer range | 1min~99h59m |
| Protection class | IP21 |
| Power | 650W |
| Heating power | 600W |
| Power supply | 100-120V/200-240V，50/60Hz |
| Dimensions(L*W*H) | 280×160×100mm |
| Weight | 3kg |
