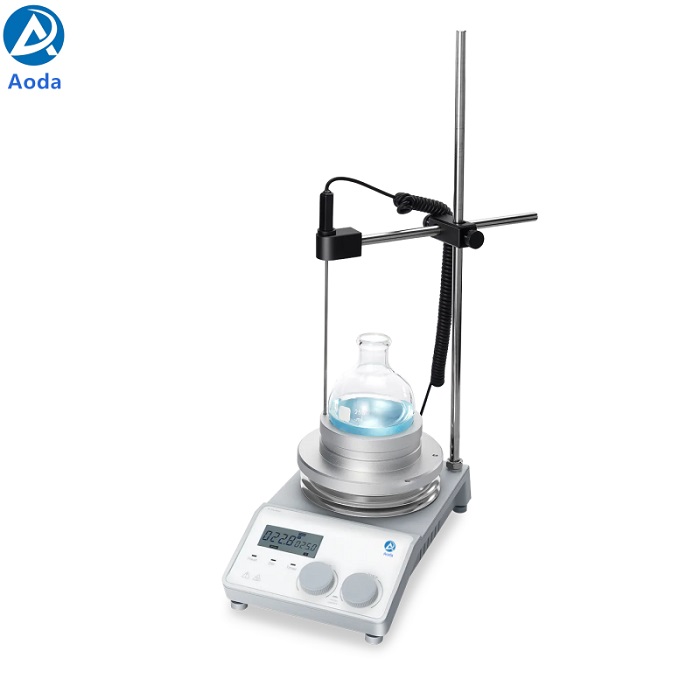

Aoda LCD Digital Enhanced Magnetic Hotplate Stirrer
MS-H-ProM LCD Digital Enhanced Magnetic Hotplate Stirrer with Timer...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Aoda LCD Digital Enhanced Magnetic Hotplate Stirrer
Enhanced magnets and powerful motors for outstanding performance in the stirring of viscous liquid.
Smooth acceleration and deceleration for stable running without spillage
Timer control from 1 minute to 99 hours and 59 minutes. When the time countdown completes, it will keep stirring but turn off heating to keep the sample safe from heat damage.
Three heating modes for different demands: A) Fast heating; B) Standard heating; C) Steady heating.
“HOT” warning flashes on the LCD display if the work plate tempe rature is above 50 °C after the user turn off the power switch.
Two independent safety circuits keep monitoring the instrument.When overheating is detected and the sensor malfunctions, it will stop heating and sound alarm; When short circuit is detected, it will cut off the power to ensure the human safety.
Can be connected to PC with remote control.
| MS-H-ProM Magnetic Hotplate Stirrer | |
| Work plate Dimension | Ø135mm (5 inch) |
| Work plate material | Aluminum with ceramic coating |
| Max. stirring quantity [H2O] | 20L |
| Speed range | 100-1500rpm |
| Heating temperature range | Room temperature ~ 340℃, increment 1℃ |
| Temperature control accuracy | ±1℃(<100℃)，±1%(>100℃) |
| Temperature display accuracy | 0.1℃ |
| External temperature sensor | PT1000 (accuracy±0.2℃ ) |
| "Hot" warning | 50℃ |
| Overheating temperature protection | 420℃ |
| Stirring positions | 1 |
| Max. magnetic bar length | 80mm |
| Data connector | RS232 |
| Timer range | 1min ~ 99h59min |
| Protection class | IP21 |
| Power | 720W |
| Heating output | 600W |
| Power supply | 100-120/200-240V，50/60Hz |
| Weight | 3kg |
| Size(L*W*H) | 16*28*10cm |
