Aoda AK1100F Full automatic Kjeldahl Nitrogen analyzer
AK1100F Automatic Kjeldahl Analyzer is an automatic device integrating distillation and titration functionsand it is designed based on classic Kjeldahl nitrogen determination method....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service

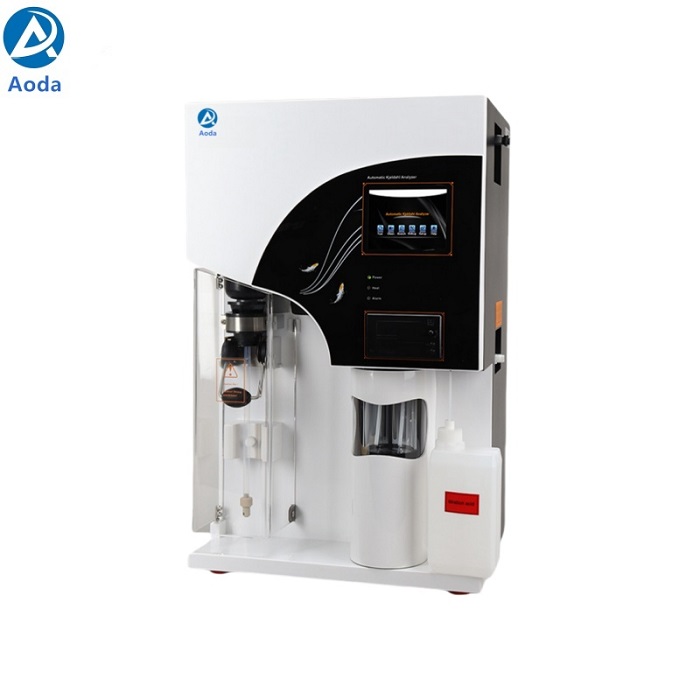

Aoda AK1100F Full automatic Kjeldahl Nitrogen analyzer
AK1100F Automatic Kjeldahl Analyzer is an automatic device integrating distillation and titration functionsand it is designed based on classic Kjeldahl nitrogen determination method. It's equipped with the latest core control system, powerful automation and high-quality components; can easily achieve automatic waste discharge and cleaning of digestion tubes and titration cups, control steam supply and real-time detection of condensation temperature. High-accuracy charging pump and titration system ensure test results accuracy, and multiple fluid level detection gives smooth test process.
Characteristics:
Automatic distillation, titration, calculation, printing, drain and cleaning function, safety and time-saving.
Visibletitration cup design gives the operator real-time control of the whole test process.
Steam flow is controllable, satisfying different test requirements.
Regent tank enjoys fluid absence warning function, ensuring smooth test going.
High-precision charging pump and titration system ensure test results accuracy.
Large LCD touch screen gives visual operation, and enabling user to have a good command of it.
USB or RS485 interface is optional for PC connection.
Distilled liquid temperature is detected real-time. Emergency stop against temp anomaly.
Double distillation model meets different experiments, to retard the speed of acid-base reaction.
Digestion tube fast drain function is used to avoid operator touch distilled hot reagents, protecting operators.
The printer is built in.
Complete microcomputer control
Automatic completion of distillation, titration, calculation, printing, waste discharge and multiple protections, i.e.failure self-detection, hints of condensed water shortage, displacement of safety door and digestion tube and so on.
Large LCD Touch Screen Panel
Large LCD touch screen gives visual operation and abundant information, enabling user to have a good command of it.
Performance advantage
Compatible with φ 42mm digestion tube
Titration while distillation, enhance the efficiency rapidly.
User-friendly design, color touch screen, easy for operating
Faster ARM system, faster operating rate
Digestor model SH220F and SH420F are matching AK1100F, with φmm digestion tube
Specification
AK1100F Full automatic Kjeldahl nitrogen analyzer | |
Measuring range | 0.1mg ~240mg N |
Analysis time | 5~10min/sample |
Reproducibility | Average value relative error ±0.5% |
Recovery | ≧99.5% |
Burette volume | 1.0μL/step |
Sample capacity | solid≦5g/sample, liquid≦20mL/sample |
Water consumption in the distillation process | 1.5L/min |
Data storage capacity | 1800 groups |
Power supply | 220VAC±10%, 50Hz |
Power | 2Kw |
Net weight | 38Kg |
Dimensions | 455mm×391mm×730mm |

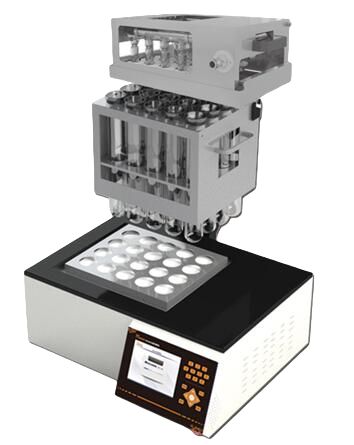

Kjeldahl digestor
Model | SH420F | SH220F |
Temperature range | Room temperature +5 - 450℃ | · |
Temperature accuracy | ±1℃ | · |
Heating method | Infrared heating and high-purity graphite conduction | · |
Heating insulation method | Unique air duct insulation technology | · |
Digestion tube capacity | 300mL | · |
Capacity per batch | 20pcs/batch | · |
Power supply | 220 VAC±10% 50HZ | · |
Power | 3600W | · |
Dimensions | 515mmX458mmX730mm | 515mmX421mmX211mm |
Net weight | 40Kg | 25Kg |

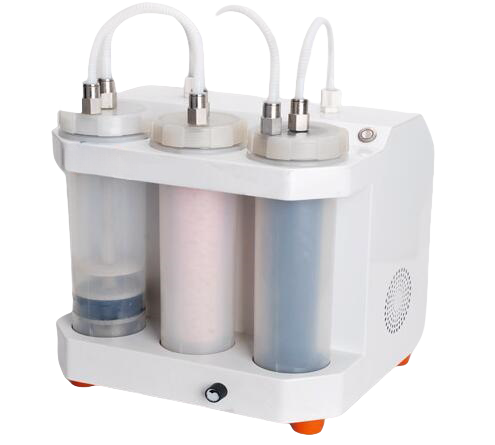

Neutralization unit
Pump suction capacity | 40L/min |
Power consumption | 320W |
System suction capacity | 50-400mBar |
Power | 220 VAC±10% 50HZ |
Weight | 40Kg |
