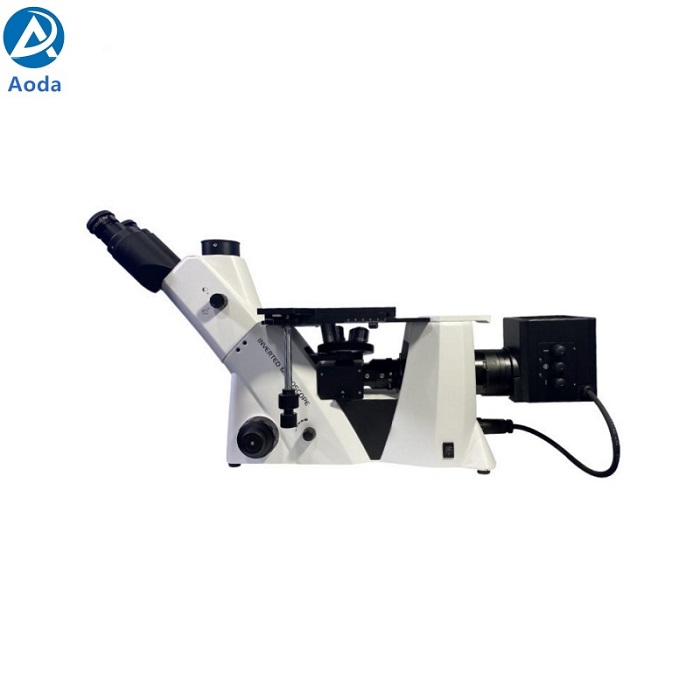

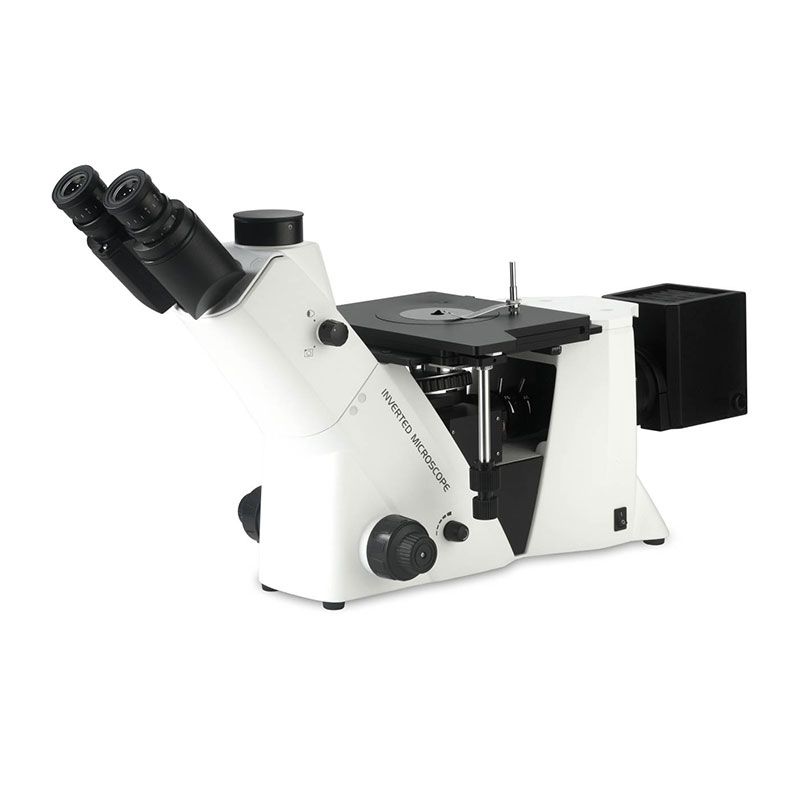

MDS400 Inverted Metallurgical Microscope
MDS400 inverted metallurgical microscope is a laboratory-grade inverted metallographic microscope. This kind of inverted microscope has powerful functions and stable performance. It is generally used for bright field observation. If dark field observation is required, this metallographic microscope can also achieve it. The maximum magnification of this inverted metallographic microscope is 1000X.
The semi-apochromatic objective lens is used, the observation effect is better, and the imaging is clearer.
The Inverted Metallurgical Microscope is a laboratory instrument, which can be used in metallographic and other laboratories, university teaching, metallographic industry, metallurgical industry, etc. This is a professional metallographic microscope, which has a better observation effect and can conduct excellent observation of metallographic samples.
| Features of MDS400 Inverted Metallurgical Microscope
Bright field objective is standard, dark field objective is optional. Dark field microscope can be used for both dark field observation and bright field observation.
Oversize view field up to 22mm for comfortable observation.
Three-layer working Stage with attached travel stage.
Light Distribution: Both 100:0 and 80:20.
| Objective specification: ( “●” Is Standard outfits, “○” Is Optional Accessories.)
| Objective | N.A. | Working Distance(mm) | MDS400 | MDS400D | |

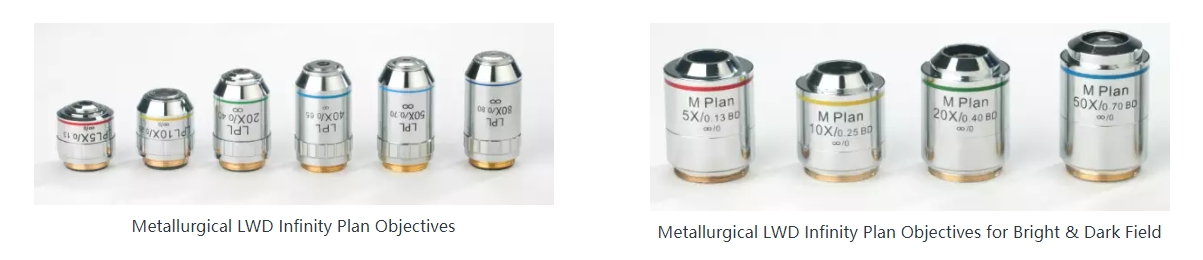

| Metallurgical LWD InfinityPlan Objectives | LMPlan FL 5× (Semi Apochromatic Objective) | 0.15 | 21.00 | ● | |
| LMPlan FL 10×(Semi Apochromatic Objective) | 0.30 | 20.00 | ● | ||
| LMPlan FL 20×(Semi Apochromatic Objective) | 0.40 | 15.00 | ● | ||
| LMPlan FL 50×(Semi Apochromatic Objective) | 0.75 | 4.25 | ● | ||
| LPL 80× | 0.80 | 0.85 | ○ | ||
| LMPlan 100×（Dry）(Semi Apochromatic Objective) | 0.85 | 3.00 | ○ | ||
| Metallurgical LWD InfinityPlan Objectives for Bright/Dark Field | M PLAN 5× BD | 0.13 | 7.30 | ● | |
| M PLAN 10× BD | 0.25 | 11.50 | ● | ||
| M PLAN 20× BD | 0.40 | 5.60 | ● | ||
| M PLAN 50× BD | 0.75 | 1.60 | ● |
| MDS400 Inverted Metallurgical Microscope Outfits
| Item | Specification | MDS400 | MDS400D | |
| Eyepiece | WF10×／22mm (adjustable) | ● | ● | |
| WF10×／22mm(adjustable，reticule 0.1mm) | ● | ● | ||
| Metallurgical LWD InfinityPlan Objectives | LMPlan FL 5×/0.15 (Semi Apochromatic Objective) | W.D.=21.00mm | ● | ○ |
| LMPlan FL 10× /0.30(Semi Apochromatic Objective) | W.D.= 20.00mm | ● | ○ | |
| LMPlan FL 20× /0.40(Semi Apochromatic Objective) | W.D.= 15.00mm | ● | ○ | |
| LMPlan FL 50× /0.75(Semi Apochromatic Objective) | W.D.= 4.25mm | ● | ○ | |
| LMPlan FL 50X/0.55(Semi Apochromatic Objective) | W.D.=10.00mm | ○ | ||
| LPL 80×／0.80 | W.D.= 0.85mm | ○ | ○ | |
| LMPlan FL 100×0.85 (Dry)(Semi Apochromatic Objective) | W.D.= 3.00mm | ○ | ○ | |
| Metallurgical LWD InfinityPlan Objectives for Bright & Dark Field | M PLAN 5×／0.13 BD | W.D.=7.30mm | ● | |
| M PLAN 10×／0.25 BD | W.D.= 11.5mm | ● | ||
| M PLAN 20×／0.40 BD | W.D.= 5.60mm | ● | ||
| M PLAN 50×／0.75 BD | W.D.= 1.60mm | ● | ||
| Seidentopf Trinocular Head | Inclined 30°, interpupillary distance: 48-76mm Light distribution (both):100: (100% for eyepiece) 80:20(80% for trinocular head, and 20% for eyepiece) | ● | ● | |
| Nosepiece | Quintuple | ● | ||
| Quadplex(specially for bright /dark field objectives) | ● | |||
| Mechanical Stage | Stage size: 210 mm×180mm, Moving range:50×50mm, Scale : 0.1mm | ● | ● | |
| Coaxial Coarse and Fine Focusing unit | Coarse stroke: 10mm, Fine stroke per rotation: 0.2mm, fine division 2 μm. | ● | ● | |

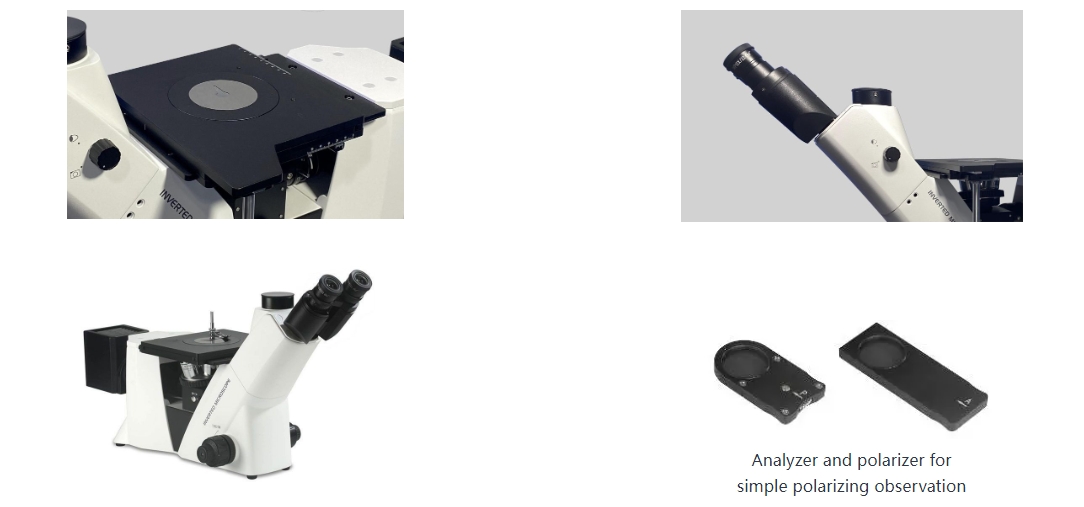

| Polarizing Unit | Polarizer /Analyzer | ● | ● | |
| llumination | 12V/50W Halogen (Universal voltage：100V～240V） | ● | ● | |
| 5WLED lamp DC input (universal voltage：100V～240V) | ○ | ○ | ||

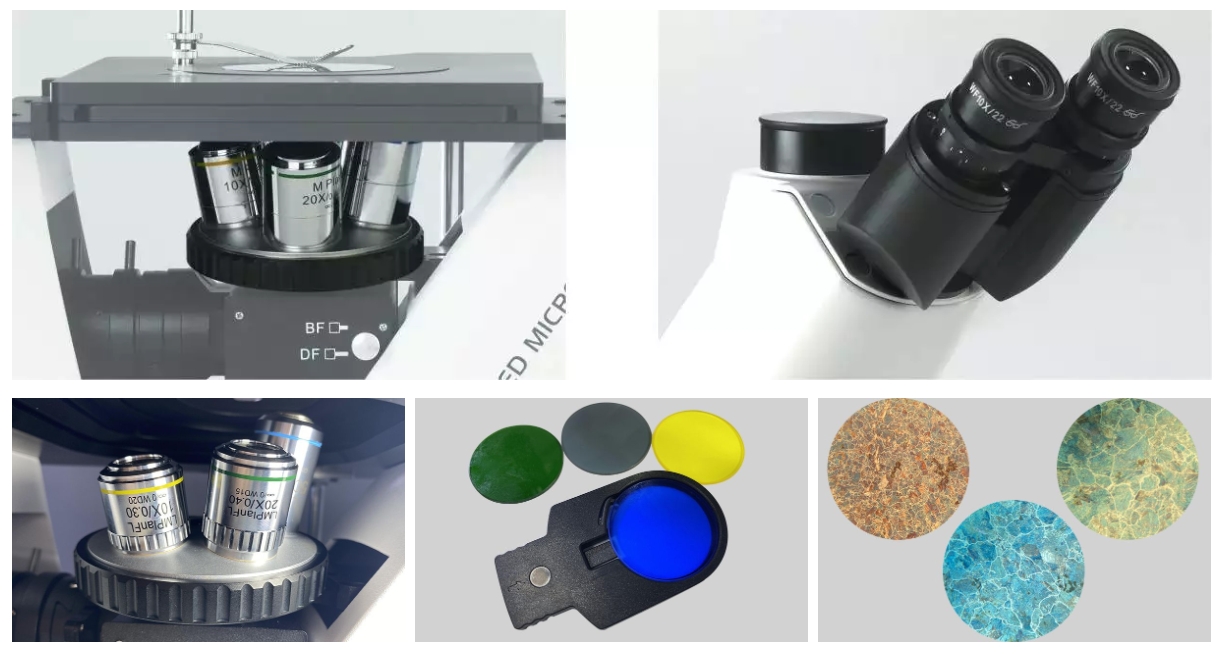

| Filter | Blue | ● | ● | |
| Green/ Amber/ Grey | ○ | ○ | ||
| C-mount | 1×/0.75×/0.5 /0.35× C-Mount (focus adjustable) | ○ | ○ | |
| Adaptor for Digital Photograph | Use for CANON／NIKON／OLYMPUS etc. | ○ | ○ | |
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
Packing Size: 660mm×590mm×325mm /Gross Weight: 17 kgs / Net Weight: 12.5 kgs
