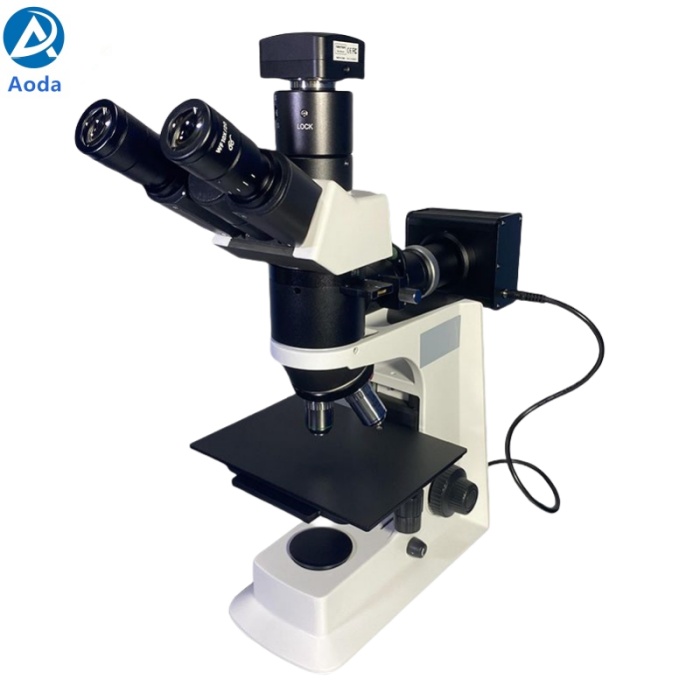

MIT200 Metallurgical Microscope

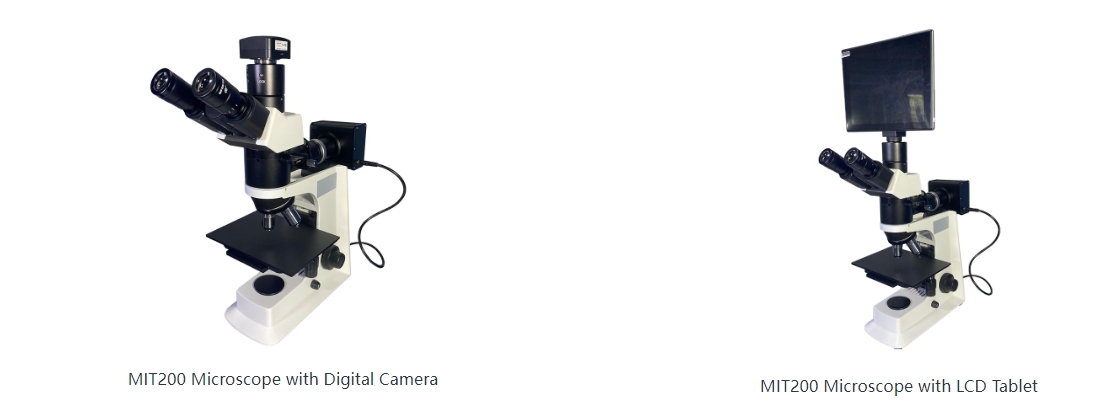

MIT200 is a basic upright metallographic microscope that needs to be used with a polarizing device. The objective lens of this configuration is the long working distance LPL 5X/10X/50X objective lens. These three are standard, and other objective lenses are also available. This metallographic microscope has binocular and trinocular options. The binocular can only be observed with the eyes, and the trinocular can add a digital port to operate the measurement software on the computer.
The metallographic microscope is used for qualitative and quantitative analysis of metal substances, material organization, etc. It is a precision instrument required for professional metallographic analysis.

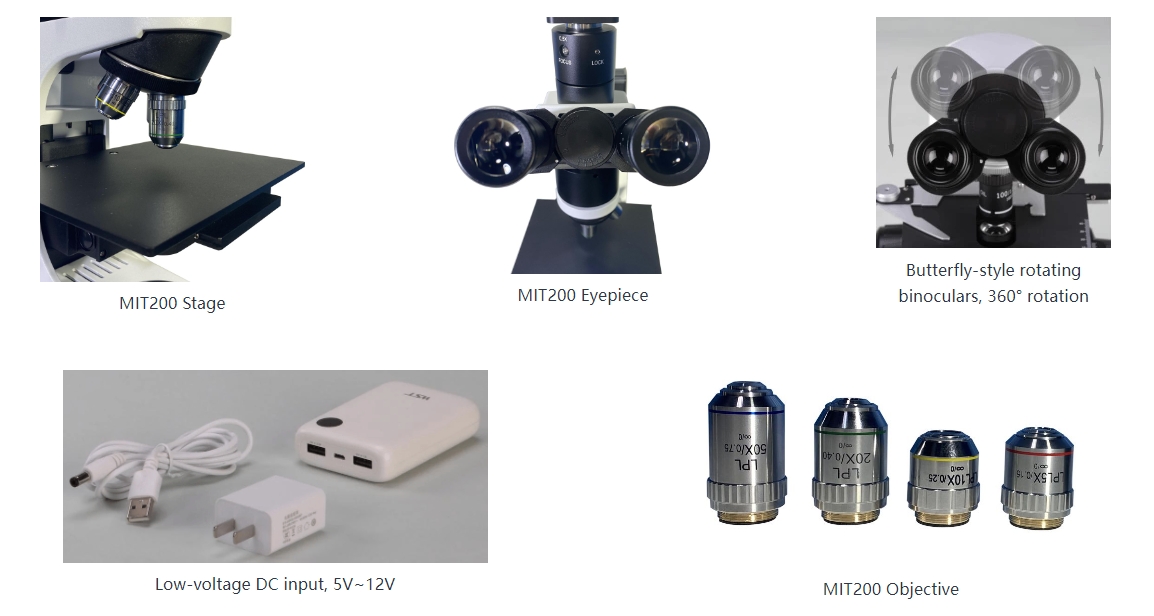

| Features of MIT200 Metallurgical Microscope
Butterfly-style rotating binoculars, 360° rotation. With ergonomically designed viewing angles, users can observe more comfortably.
Low-voltage DC input, 5X~12V.
The low-voltage mode design allows you to connect to a power bank anytime, anywhere. It breaks through the limitations of the use site.
| MIT200 Metallurgical Microscope Specification
| Items | Specification | MIT200 | |
| Eyepiece | WF10X/20mm (High eyepoint) | ● | |
| WF10X/20mm(H, adjustable Focus,Reticule 0.1mm) | ● | ||
| Long Working DistanceInfinity Plan Objective(no cover glass) | LPL 5×/0.15 | W.D=15.00mm | ● |
| LPL 10×/0.25 | W.D=18.48mm | ● | |
| LPL 20×/0.4 | W.D=8.35mm | ○ | |
| LPL 50×/0.75 | W.D=2.55mm | ● | |
| LPL 80×/0.8 | W.D=0.85mm | ○ | |
| LMPlan FL 100×／0.85(Dry) | W.D=3.00m | ○ | |
| Swiveling Seidentopf Binocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance: 48 -75mm | ● | |
| Swiveling Seidentopf Trinocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance: 48 -75mmLight Distribution 80:20 | ○ | |
| Nosepiece | Quadplex | ● | |
| Mechanical Stage | Stage Size: 200×140mm, Travel: 76mm×52mm Coaxial Coarse and Fine Focusing Knobs | ● | |
| Reflection Illumination | 5WLED lamp (Input voltage: 100V～240V) | ● | |
| Filter(Φ12) | Five-hole filter unit (blue, green, amber, grey, empty) | ● | |
| Polarizing Attachment | Analyzer/ Polarizer | ○ | |
| C-mount | 1×/0.5×/0.35×/0.75×（Focus Adjustable） | ○ | |
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
Packing Size: 550mm×380mm×285mm Gross Weight: 10.5 kgs Net Weight: 8 kgs
