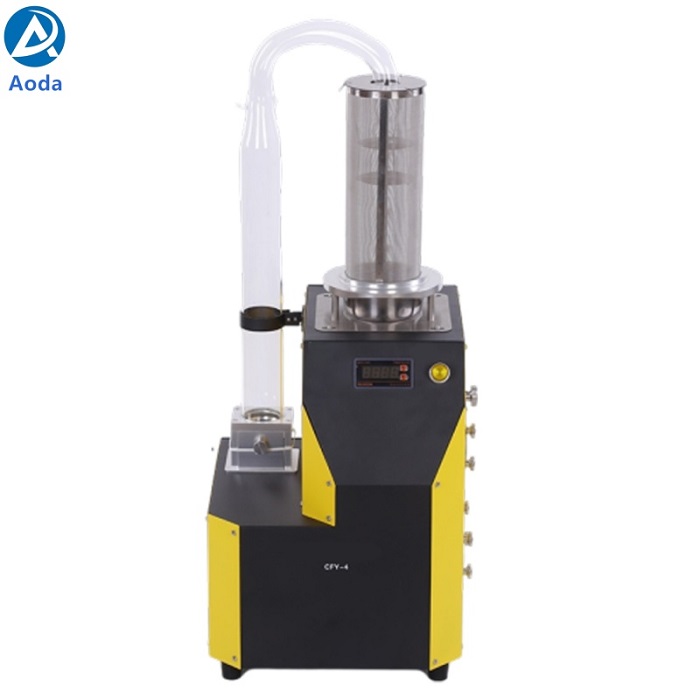

Aoda CFY-4 Small partical Seed wind sorting cleanliness Seed blower

Aoda CFY-4  Small partical Seed wind sorting cleanliness Seed blower

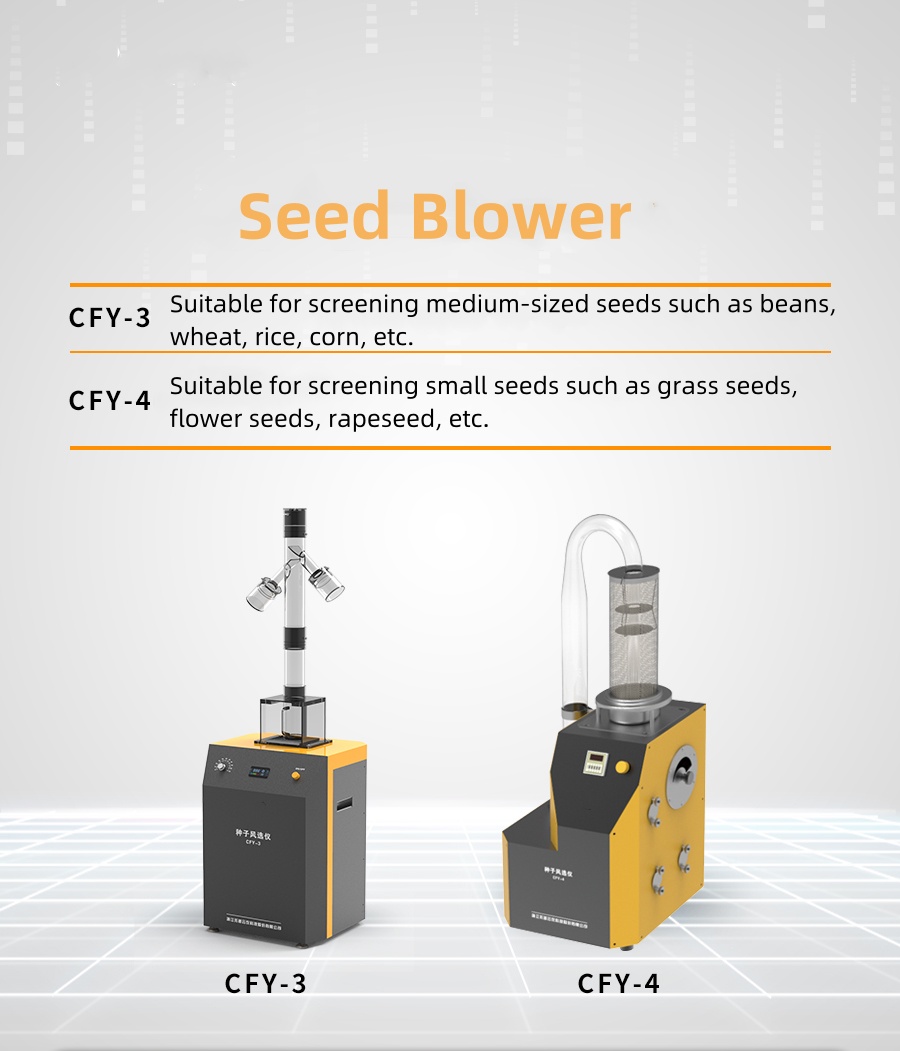

CFY-4 Seed blower is suitable for the wind separation of small-grain seeds, such as forage, flowers, sesame, rapeseed, Chinese cabbage, pine nuts, large-leaf celery, chicory and other small-grain seeds. It can separate impurities and light and deflated seeds from pure seeds to obtain pure seeds.

Work principle

The Seed blower is an instrument specially developed for seed purity testing based on the aerodynamic behavior (floating speed) of material particles in the airflow and using microelectronic control technology. It can separate impurities in seeds and light, deflated seeds from pure seeds.

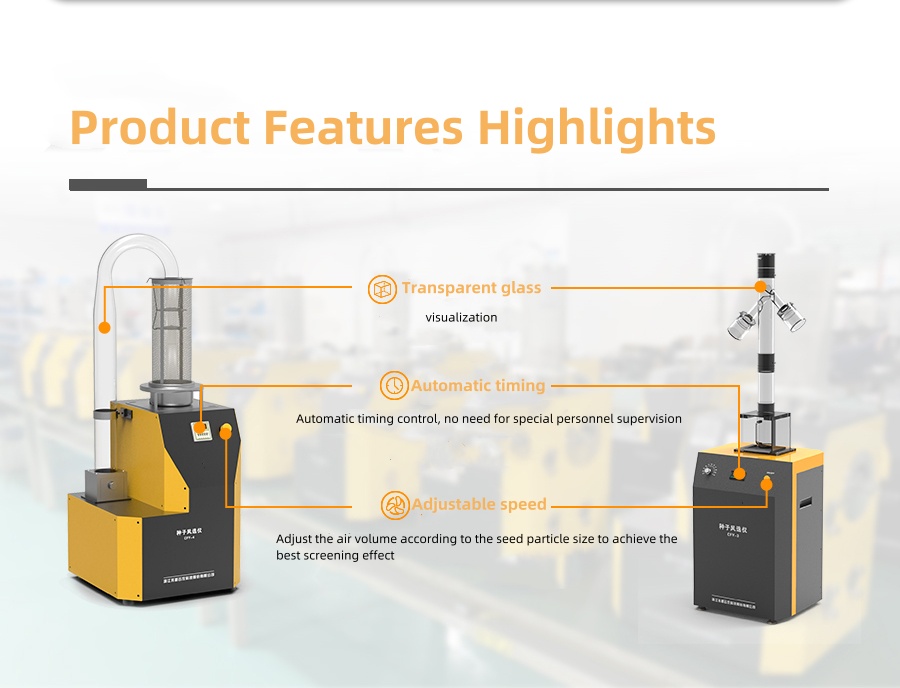

Features

1. The shell is made of all metal, which meets the strength requirements and is strong and durable;

2. Low noise, long life, power saving, safe and reliable; small size, easy to transport and move;

3. The pipeline is made of high-quality glass tube material, and the operation process is visualized;

4. The instrument is automatically controlled by timing, no special person is required to watch, and the operation is simple;

5. The wind speed can be continuously adjusted by the scale knob;

6. The mesh ventilation pipe has good ventilation performance. Through the glass pipe and the mesh ventilation pipe, impurities enter the debris cup and are separated from the seeds. The filter air cylinder pendant of the mesh ventilation pipe can prevent impurities from rebounding.

Technical parameters

1. Maximum wind pressure: 47pa

2. Motor power: 85W

3. Timing: 0~99.99H

4. Dimensions: 350*350*900mm

5. Working voltage: 220V 50HZ

6. Mesh size of material cup: 40 mesh

7. Motor speed: 2600 r/min

8. Noise value: ≤70dB

9. Wind speed: 8.5m/s

10. Air volume: 0.250m³/min
