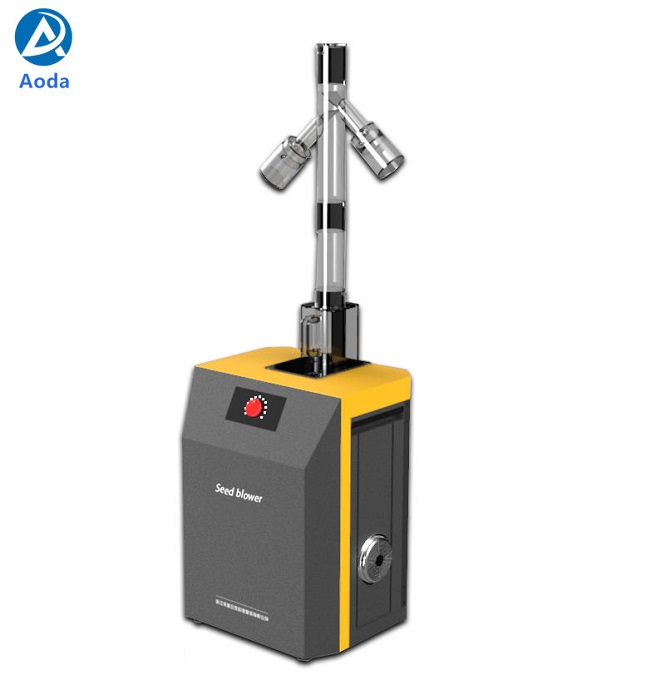

Aoda CFY-3 Agricultural Laboratory Seed air separator Paddy Seed Blower

Aoda CFY-3 Agricultural Laboratory Seed air separator Paddy Seed Blower

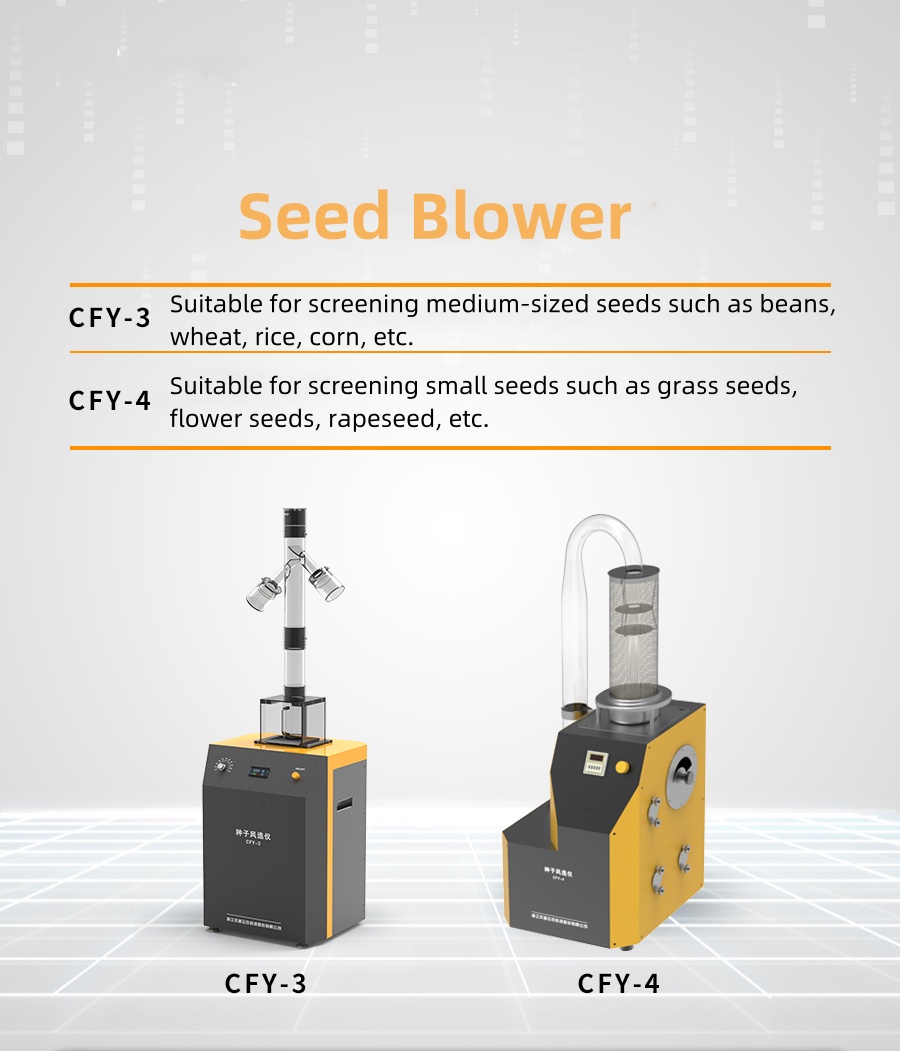

CFY-3 Seed Blower is suitable for the air separation of large and medium-sized seeds such as corn, wheat, rice, red beans, black beans, and soybeans, and can quickly complete the seed air separation work. Separating impurities, light and shriveled seeds, and pure seeds from seeds,mainly used for variety testing and small sample separation in seed companies, agricultural science institutes, and inspection units.

Work principle

The Seed blower is a specialized instrument developed using microelectronic control technology based on the aerodynamic behavior (floating speed) of material particles in the airflow, specifically designed for seed air purification.

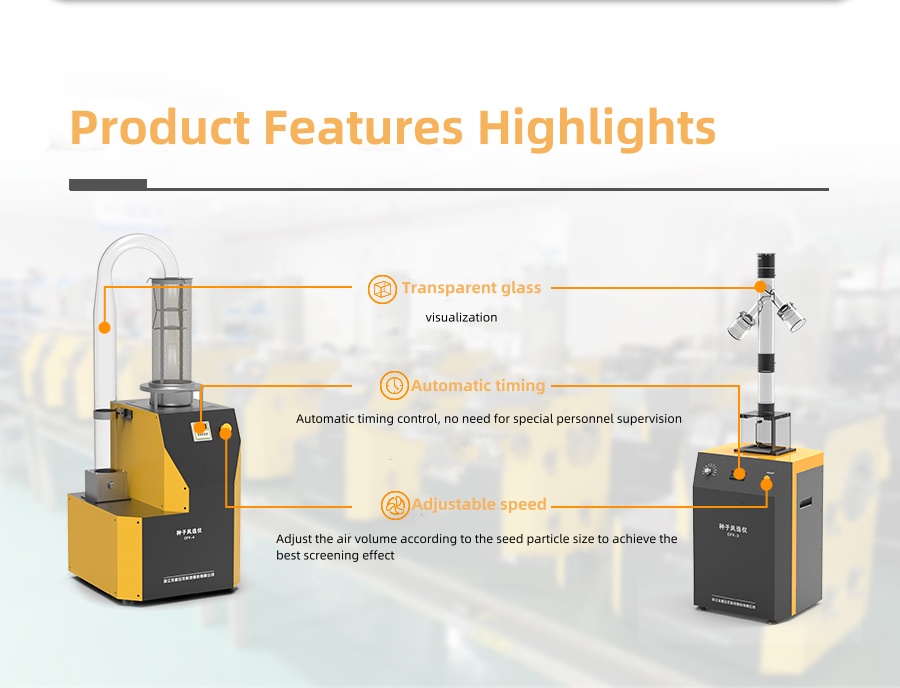

Functional features

1. The instrument shell is made of all metal, which is sturdy and durable;

2. Low noise, long life, power saving, safe and reliable;

3. The pipeline is made of high-quality glass tube material, and the operation process is visualized;

4. The instrument is automatically controlled by timing, no special person is required to watch, and the operation is simple;

5. The wind speed and air volume can be adjusted according to the particle size to achieve better screening effect;

6. Impurities enter the debris cup through the separation tube and are completely separated from the seeds;

7. The base of the material cup is elastic and has good air tightness.

Technical parameters

1. Maximum wind pressure: 689pa

2. Motor power: 550W

3. Timing: 0~99.99H

4. Dimensions: 526*455*1680mm

5. Working voltage: 220V 50HZ

6. Motor speed: 2800 r/min

7. Noise value: ≤81dB

8. Wind speed: 31.1m/s

9. Air volume: 0.914m³/min
