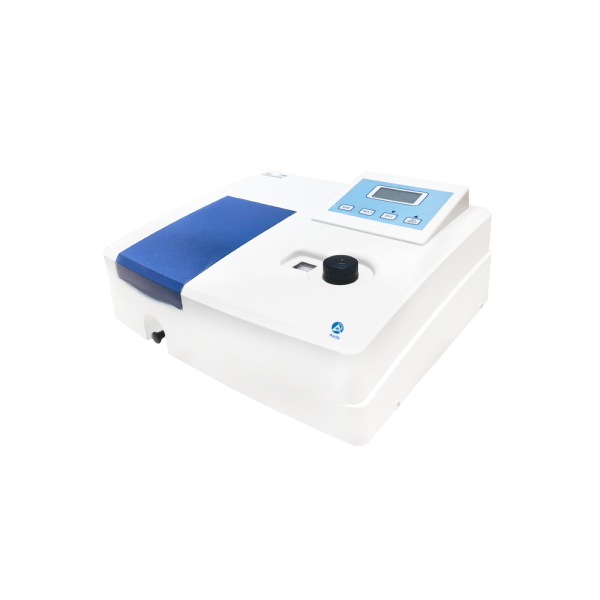

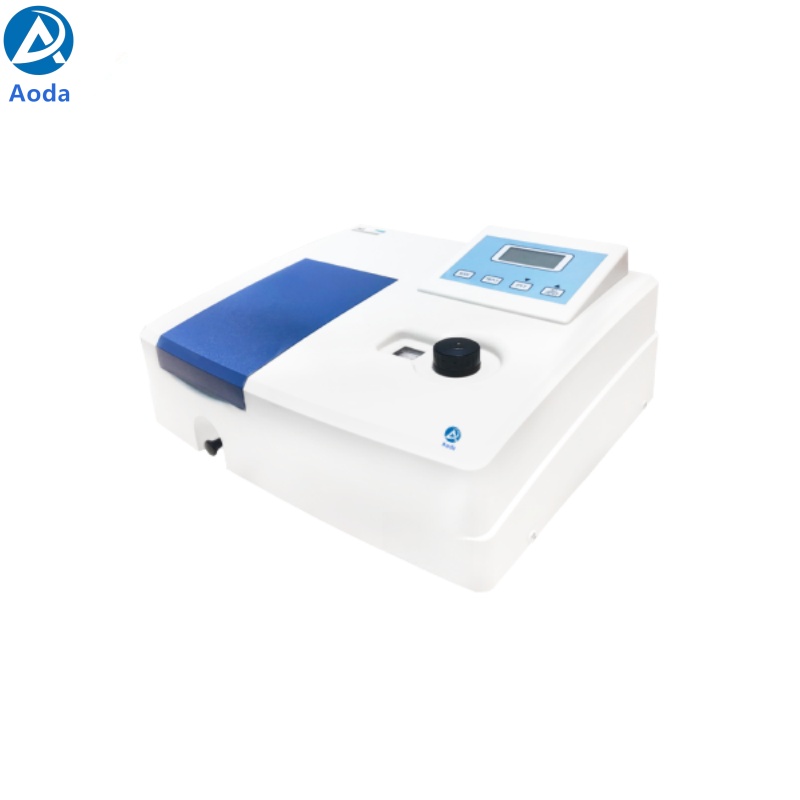

Aoda 752N UV-VIS Spectrophotometer

Aoda 752N UV-VIS Spectrophotometer

752N UV-VIS Spectrophotometer been widely used in colleges and enterprises for general quantitative analysis and experiments based in absorbance measurements.

● High quality silicon photometric diode detector and 1200 lines/mm diffraction grating ensure the  high quality accuracy and precision.

● Backlit LCD display for an easy readout.

● Automatic 0A and 100%T.

● Easy switching of transmittance, absorbance and concentration modes, just by pressing one key.

● Direct concentration read-out and concentration factor setting function.

● Large sample compartment, for 5 - 100mm path length cuvettes with optional holders.

● Easy to change the halogen lamp or deuterium lamp by the user himself.

● Sample compartment for 5-50mm cuvettes

● Precise automatic T/A changeover

● Automatic zero and full scale adjustment

● Equipped with USB port

● Direct concentration read-out and concentration factor setting function

● Automatic light gate technology to protect photoelectric sensors

Photometry:     Split Beam

Monochromator Type:    Czerny-Turner

Focal Length:    160mm

Grating:    1200 lines/mm

Detector:     Silicon Photocell

Spectrum Bandwidth:    2nm

Wavelength Setting:     Manual Turn Knob

Wavelength Range:    200-1000nm

Wavelength Accuracy:    ±2nm

Wavelength Repeatability:    ≤1nm

Stray Light  :     ≤0.1%T( at 220nm NaI, 360nm NaNo2 )

Photometric Range:     0.0-200.0% T

                                    -0.097-4.000 A

                                    0.000-9999 C

Photometric Accuracy:    ±0.5% T

                                        ±0.004 Abs (0-0.5A)

                                        ±0.008 Abs (0.5-1A)

Photometric Repeatability:    ≤0.2% T

                                              0.002 Abs (0-0.5A)

                                              0.004 Abs (0.5-1A)

Noise:    100%（T）noise≤0.3%(T) ， 0%（T）noise≤0.2%(T)

Power:    AC220V±22V 50Hz±1Hz, 120W

Packaging Size:    580mm X 460mm X 345mm 0.1M3 16.5kg

Standrad Accessories

● Operation manual 1pc

● UV WIN8 Spectrum data processing software 1pc

● Glass cuvette 10mm 4pcs

● Quartz cuvette 10mm 2pcs

● Power cable 1pc

● Fuse 2pcs

● Cuvette holder 10mm 1pc

Optional Accessories

● Thermal Plotter

● Cuvette holder 50mm

● Cuvette 20mm 30mm 50mm
