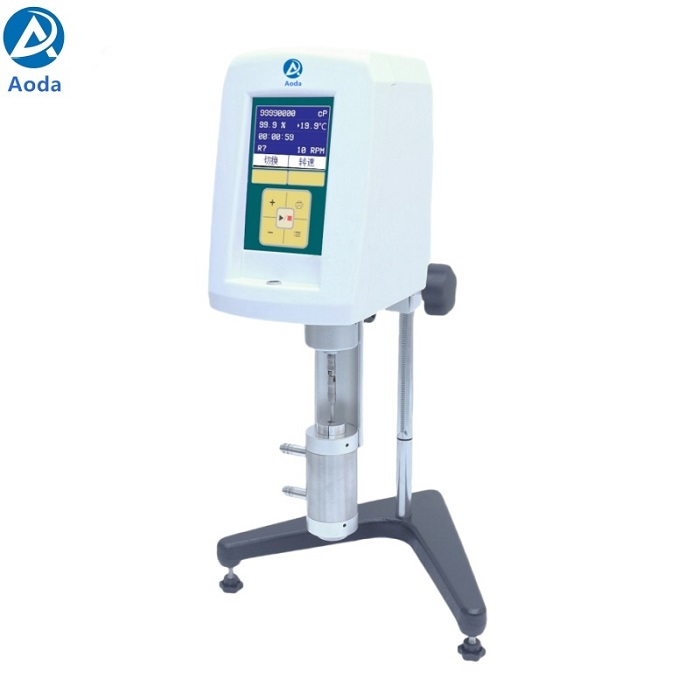

AODA SSR-seris Rotational viscometer for small capacity sample

AODA SSR-seris Rotational viscometer for small capacity sample

SSR series Rotational viscometer (for small samples) adopts coaxial double cylinder structure and uses small sample adapter. The sample volume required for each measurement is very small, only 7ml-13ml. It can be equipped with a circulating constant temperature water jacket and a constant temperature bath to control the temperature of the sample. It is very convenient to operate and has accurate measurement value. It is suitable for precious and rare sample measurement.

. A variety of range models are available, with a maximum measuring range of 16 million mPa.s

. The measurement accuracy can reach ±2% of the full scale, and the repeatability is ±0.5% of the full scale

. Standard 304 stainless steel small sample dedicated rotor

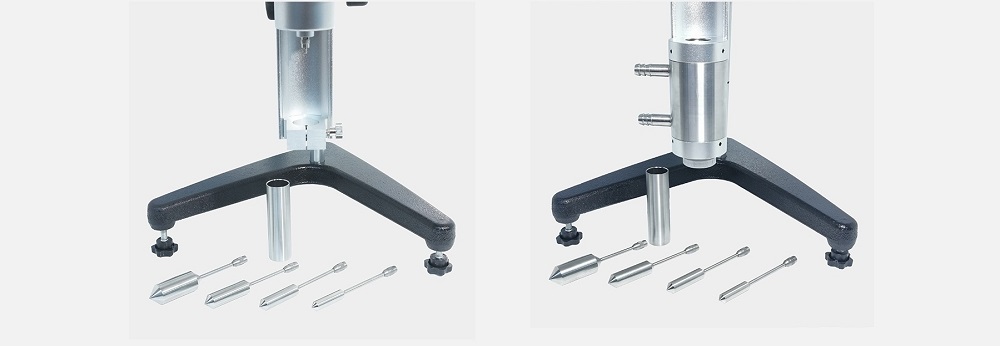

· The measurement adapter with clever structural design is convenient and firm to load and unload

· The circulation jacket accessory can be connected to the thermostatic bath and other equipment to achieve precise temperature control*

· High torque, low noise stepper motor drive system

· High sensitivity front level, more convenient observation

· Rich display content: dynamic viscosity, temperature, torque, full scale range

The * is a non-fixed parameter configuration, please see the parameter table or consult customer service for details. The circulation jacket accessories need to be additionally selected

Optiona kits

Plus constant temperature accessories

NKY-25 Constant temperature heater

Printer

High precision temperature probe

High-low temperature constant temperature water bath

Software
