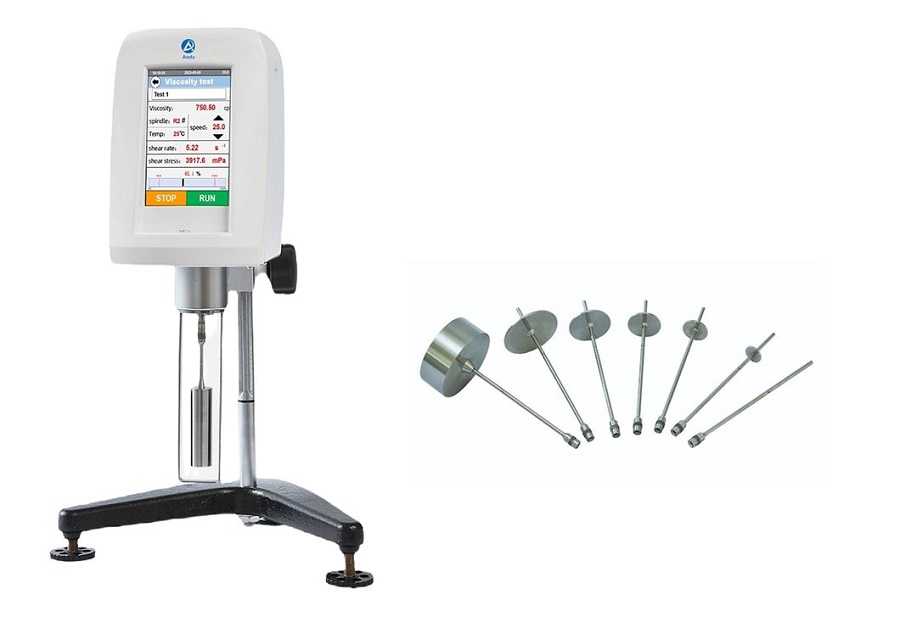

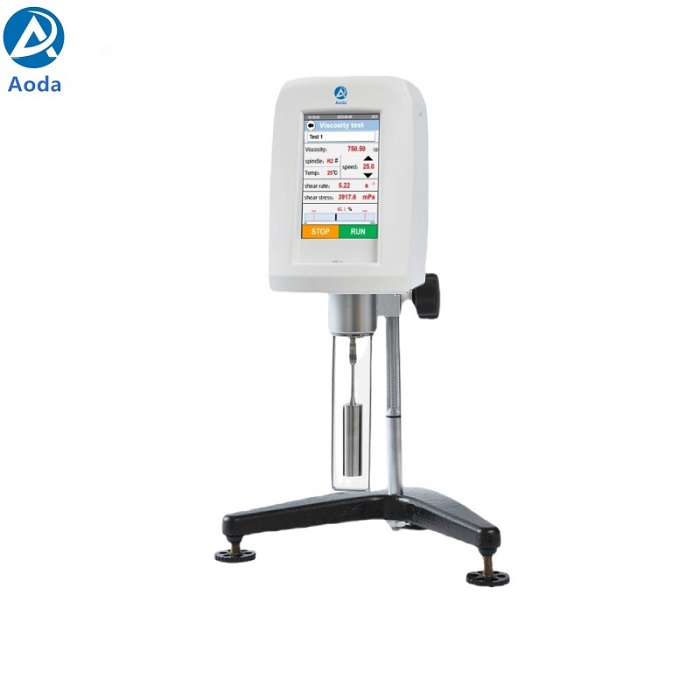

AODA NDJ-T Touch screen Rotational viscometer
T series touch screen rotational viscometer can measure the viscosity of Newtonian liquids or the apparent viscosity of non-Newtonian liquids....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
AODA NDJ-T Touch screen Rotational viscometer
T series touch screen rotational viscometer can measure the viscosity of Newtonian liquids or the apparent viscosity of non-Newtonian liquids.
Rotational Viscometer is Widely used in various fluids that need to measure viscosity and fluids under high temperature melting. Including paints, coatings, cosmetics, inks, pulp, food, oils, starch, solvent-based adhesives, latex, biochemical products, etc.,
as well as industries that require high temperature melting, such as asphalt, paraffin, hot melt adhesives, etc.
① ARM technology is adopted, and Linux system is built in. The operation interface is concise and clear. Through the creation of test programs and data analysis, viscosity tests can be carried out quickly and conveniently;
② Accurate viscosity measurement, each range is automatically calibrated by computer, with high precision and small error;
③ Rich display content: in addition to viscosity, there are temperature, shear rate, shear stress, percentage of full range value (graphic display), range overflow alarm, automatic scanning, maximum measurement range under the current rotor speed combination, date, time, etc. And it can display kinematic viscosity under known density, which greatly meets the different measurement requirements of users;
④ Complete functions, can measure at regular intervals, build 30 sets of test programs, store and access 30 sets of measurement data, display viscosity curves in real time, print data and curves, etc.;
⑤ Front level, intuitive and convenient level adjustment;

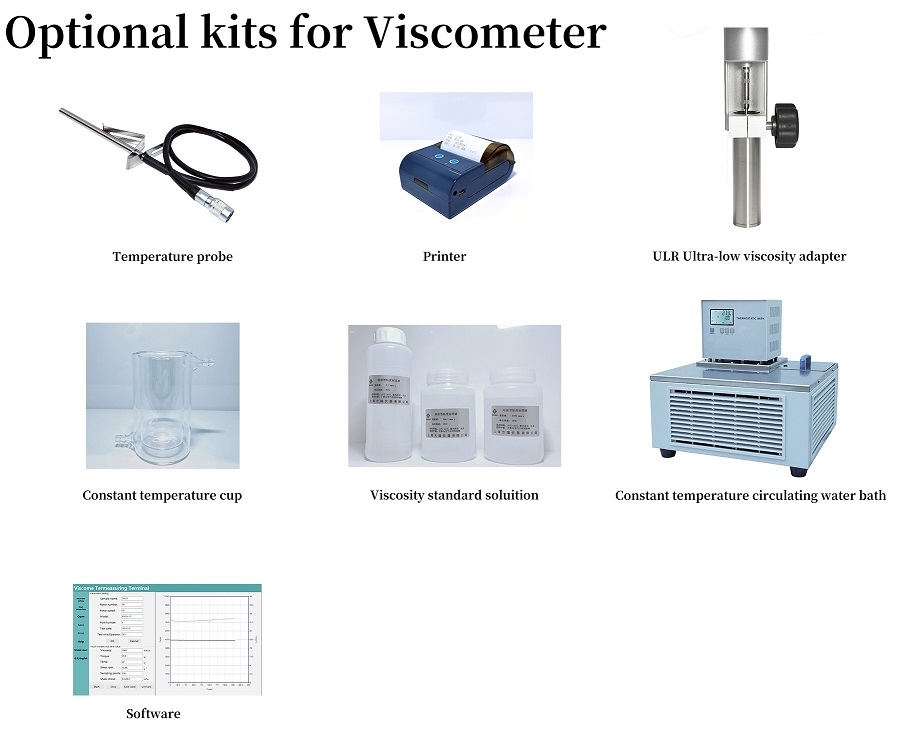

⑥ Optional temperature probe, constant temperature bath, constant temperature cup, printer, standard viscosity sample (standard silicone oil), etc.;
T series touch screen Rotational Viscometer | |||
Model | NDJ-5T | NDJ-9T | NDJ-8T |
Display | 5 inch touch screen | ||
Speed （r/min） | 3/6/12/30/60 | 0.3/0.6/1.5/3/6/12/30/60 | |
Measuring range mPa.s | 1～100000 | 1～2000000 | |
（To measure ultra-low viscosity below 10, a 0# rotor is required） | |||
Rotor | 1 - 4#（standard） 0#（optional） | ||
Measuring error (Newton liquid) | ±1% | ±0.5% | ±0.1% |
Repeatability error(Newton liquid) | ±0.5% | ±0.25% | ±0.5% |
Timing function | Included | ||
Temperature measurement | Standard temperature probe interface (optional temperature probe required) | ||
Auto scan | Automatically scans and recommends the preferred combination of rotor and speed | ||
Display maximum range | Automatically displays the measurable viscosity range for the selected combination of rotor and speed | ||
Display shear stress/shear rate | Standard | ||
Automatic display of kinematic viscosity | The density of the sample needs to be entered | ||
Self-built measurement program | Up to 30 groups can be saved (including rotor, speed, temperature, time, etc.) | ||
Data storage | Up to 30 groups (including viscosity, temperature, rotor, speed, shear rate, shear stress, time, density, kinematic viscosity, etc.) | ||
Viscosity curve | Real-time display of viscosity curve | ||
Printer | Optional | ||
Data output interface | Standard | ||
Constant temperature components | Options (including various Constant temperature bath,Constant temperature cups, etc.) | ||
Power supply | AC110V~220V,50/60Hz | ||
Dimensions | 300 × 300 × 450mm | ||
