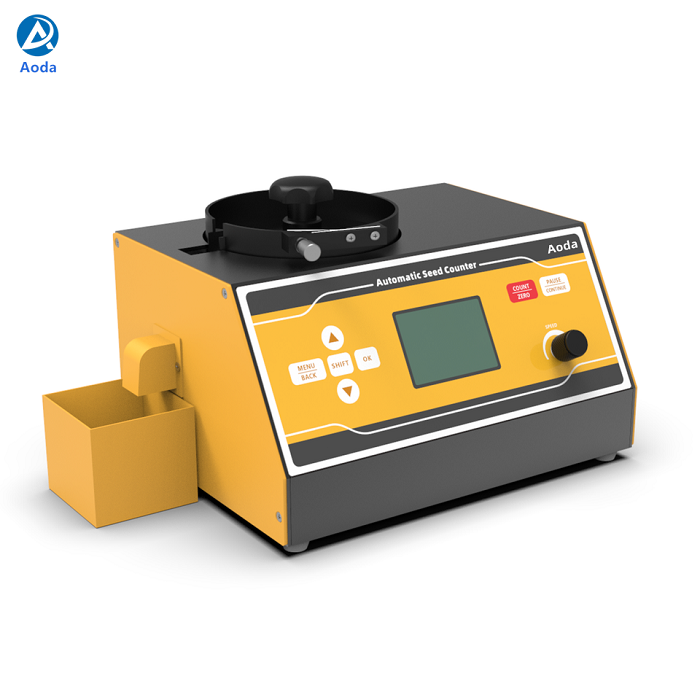

SLY-C plus Microcomputer control Automatic seed counter

SLY-C plus Microcomputer control Automatic seed counter

SLY-C plus microcomputer automatic seed counter is also called electronic automatic grain counter. It adopts microcomputer automatic control, touch buttons, LED display of set numbers and actual numbers. It is widely used in automatic grain counting of corn, wheat, rice, rapeseed, vegetables and other seeds. It is universal for large and small seeds. It is widely used in agricultural science institutes, agricultural colleges, seed companies and grain departments for seed sorting, thousand-grain weight measurement, grain counting and sowing.

The accurate automatic seed counter takes on the complicated work of manual grain counting, reduces the work intensity of manual grain counting for breeders, and provides convenience for users.

Features

1. The microcomputer automatic seed counter adopts microcomputer automatic control, LCD large screen display, humanized design, and fully automatic operation.

2. It has functions such as circuit self-adjustment, arbitrary counting, pre-value self-stop and batch grain counting.

3. It has sensitive gear setting, and can preset the appropriate gear speed of seeds according to different seed particle sizes to reduce the tediousness of manual adjustment by users.

4. It has automatic power-off protection function. After automatically detecting that there is no seed, the vibration material box will stop working protectively. Energy saving and environmental protection, extending the service life of the instrument.

5. The working interface is clear and intuitive, with grain counting mode, set numbers, actual numbers, grain counting time, gear speed, Beijing time, etc.

6. The grain counting speed of the grain counter is adjustable, with low noise and high precision, and is suitable for small and medium-sized seeds.

7. It has an alarm prompt function. When the grain counting is completed and the protective stop is made, there will be an alarm prompt sound to enhance the user experience.

Technical parameters

1. Seed diameter: 1-12mm

2. Counting error: ±2‰ (gear speed and dandruff falling off during seed vibration will affect counting accuracy)

3. Counting speed: ≥1000 seeds/3 minutes (taking sesame as an example)

4. Vibration noise: ≤70dB

5. Counting capacity: 1~99999

6. Preset automatic stop: any value from 1 to 99999, set to 00000 and do not count

7. Instrument size: 284* 210* 176mm

8. External power supply: 110VAC/60Hz and 220VAC/50Hz compatible

9. Continuous working time: ≥5 hours

10. Working environment: ambient temperature: -10℃~50℃; relative humidity: <85%
