SLY-F Automatic seed counting machine with dividing function

SLY-F Automatic seed counting machine with dividing function

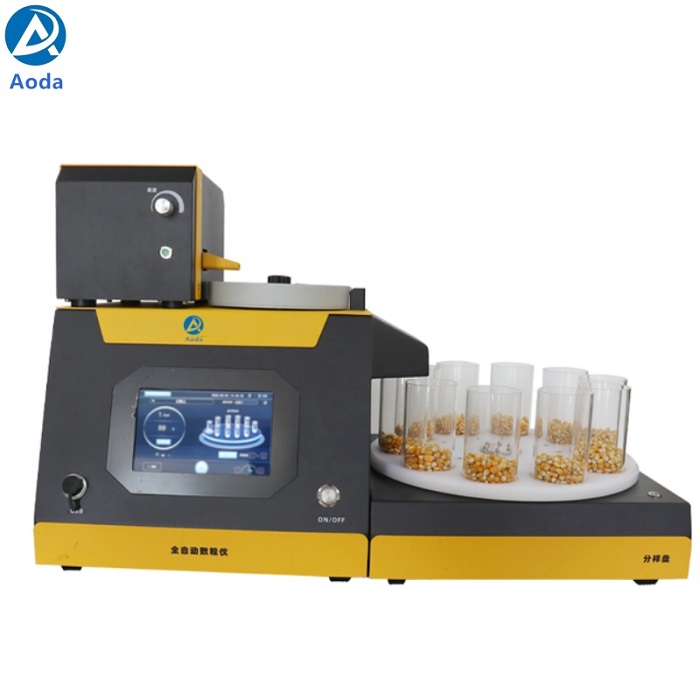

The SLY-F automatic seed counting machine with sample separation is suitable for counting various types of round, long and small and medium-sized seeds such as corn, rice, wheat, rapeseed, and vegetables. In addition to the counting function of the traditional grain counter, it also has the automatic sample separation and automatic recording function.

SLY-F Automatic seed counting machine Features

1. Appearance design: The yellow and black colors are matched alternately, which is simple and generous. The internal space of the mechanism is reasonably arranged, and the reading and operation parts can be presented to the user at a more reasonable angle and position, and the human-computer interaction is relatively reasonable.

2. Modular design: The module functions are adjusted according to the different needs of users to achieve accurate functional output.

3. Intelligent program setting: The automatic grain counting instrument for sample sorting takes grain counting as the core, and the functions are comprehensive. After the program is set, it can automatically count grains in large quantities from the silo to the turntable, reducing labor time.

4. Easy assembly: No complicated assembly and tools are required for the first use, and the assembly can be completed in 6 steps.

5. Ultra-large touch screen design: 7-inch color touch screen, intelligent dynamic picture, enhance the user's human-computer interaction experience.

6. Pre-value setting, full value automatic stop: When the number of grains reaches the set number of cups and grains, the turntable will automatically stop working.

7. Automatic average sampling: The number of material cups and the number of grains in each material cup can be set, and each material cup can be averaged.

8. Rotary multi-station design: After the current cup is counted, it will automatically jump to the next cup, which can continuously drop materials during bagging and placement, improving work efficiency.

9. Built-in deceleration program: After each cup approaches the set number of grains, it will automatically decelerate and count accurately to prevent the inertia of the material from overshooting and affecting the accuracy.

10. Adjustable grain counting disc speed: The sample-dividing automatic grain counter has an infinite speed regulation function, and the grain counting speed is adjustable.

11. Buzzer alarm prompt: One beep when each cup is counted, one long beep when all grains are counted, and 6 beeps when a fault occurs. It is convenient for users to always perceive the status of the instrument.

12. Data recording: The measured data can be automatically recorded and saved, including variety name, measured grain number, counting time and test time, etc.

13. Data printing: The built-in thermal sticker printer can automatically print data. The printed label data can be directly pasted on the seed packaging bag.

14. Data export: Support USB data export.

SLY-F Automatic seed counting machine Technical parameters

Seed length: 1-23mm

Counting error: ±2‰

Counting speed: ≥1000 seeds/3 minutes (taking sesame as an example)

Vibration noise: ≤80dB

Counting capacity: 1~9999 seeds

Preset automatic stop: any value from 1 to 9999, set to 0000 for no counting

Number of material cups: 10 cups

Instrument size: 730mm*365mm*470mm

Continuous working time: ≥8 hours

Working environment: Ambient temperature: -10℃~50℃; Relative humidity: <85%
