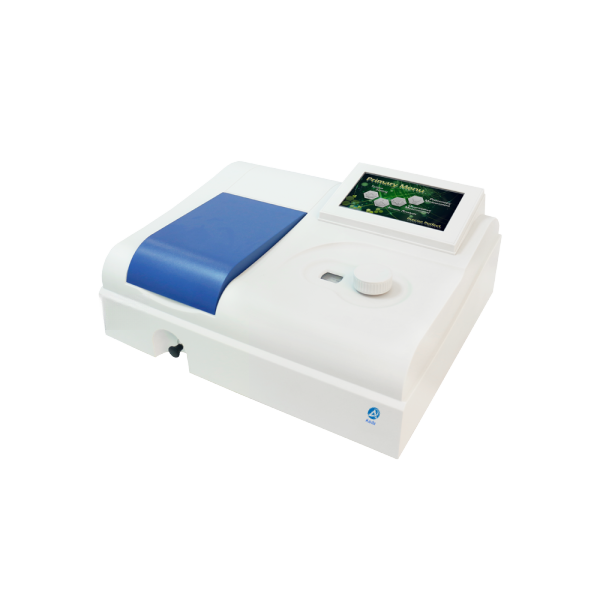

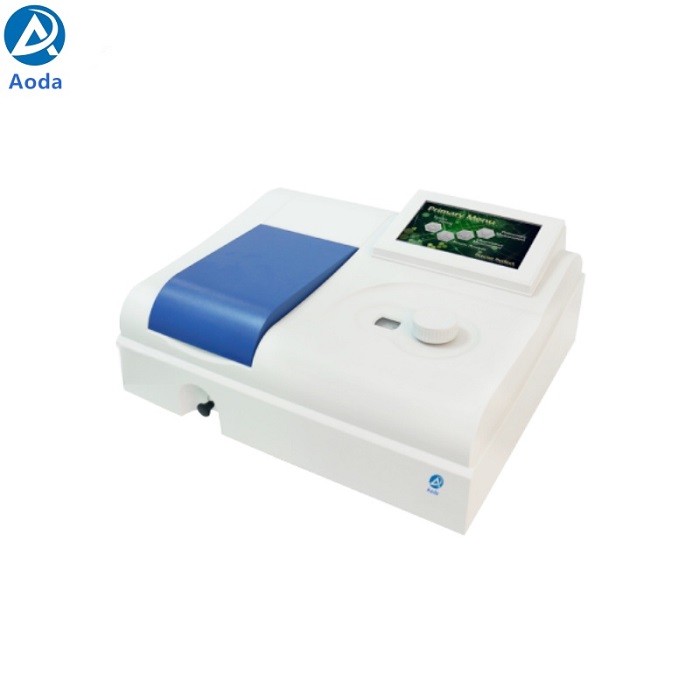

Aoda 752N Plus UV-VIS Spectrophotometer
752N Plus UV-VIS Spectrophotometer has the holographic blazed grating monochromator has the advantages of high wavelength accuracy, good monochromaticity and low stray light....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Aoda 752N Plus UV-VIS Spectrophotometer
752N Plus UV-VIS Spectrophotometer has ?the holographic blazed grating monochromator has the advantages of high wavelength accuracy, good monochromaticity and low stray light.
● 7-inch multi color touch-screen, good human-computer interface.
● Linear regression method and coefficient method are added to the concentration test method.
● USB interface is added, and large capacity memory can store 30 concentration curves.
● Adopt microcomputer measurement system, with high conversion accuracy of T-A, automatic adjustment of
● 0% T and 100% T, concentration factor setting and concentration direct reading.
● High accuracy, Good Reproducibility and Stability of Measurement Readings.
● Automatic light gate technology, No need blackbody, to protect the photoelectric sensor
● Sample compartment for 5-50mm cuvettes
● Precise automatic T/A changeover
● Automatic zero and full scale adjustment
● 7-inch multi color touch-screen
● Equipped with USB port
● Direct concentration read-out and concentration factor setting function
● Automatic light gate technology to protect photoelectric sensors
| 752N Plus UV-VIS Spectrophotometer | |
| Photometry | Split Beam |
| Monochromator Type | Czerny-Turner |
| Focal Length | 160mm |
| Grating | 1200lines/mm |
| Detector | Silicon Photocell |
| Spectrum Bandwidth | 2nm |
| Wavelength Setting | Manual Turn Knob |
| Wavelength Range | 200-1000nm |
| Wavelength Accuracy | ±2nm |
| Wavelength Repeatability | ≤1nm |
| Scanning Speed | Fast-Medium-Slow |
| Stray Light | ≤0.1%T( at 220nm NaI, 360nm NaNo2 ) |
| Photometric Range | 0.0-200.0% T -0.097-4.000 A 0.000-9999 C |
| Photometric Accuracy | ±0.5% T ±0.004 Abs (0-0.5A) ±0.008 Abs (0.5-1A) |
| Photometric Repeatability | ≤0.2% T 0.002 Abs (0-0.5A) 0.004 Abs (0.5-1A) |
| Noise | 100%（T）noise≤0.3%(T) ， 0%（T）noise≤0.2%(T) |
| Power supply | AC220V±22V 50Hz±1Hz, 120W |
| Weight | 17kg |
| Dimensions(L*W*H) | 58*46*35cm |
Standrad Accessories
● Operation manual 1
● UV WIN8 Spectrum data processing software
● Glass cuvette 1cm 4pcs
● Quartz cuvette 1cm 2pcs
● Power cable 1
● Fuse 2pcs
● Cuvette holder 10mm
Optional Accessories
● Thermal Plotter
● Cuvette holder 50mm
