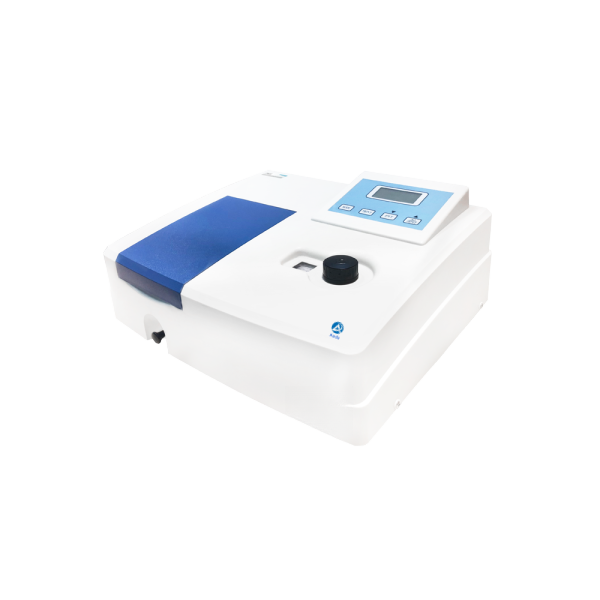

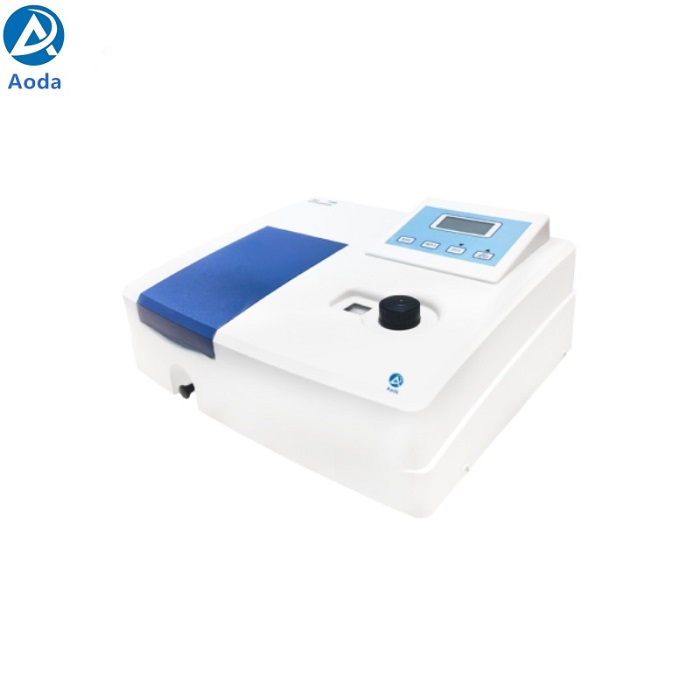

Aoda 752G 200-1000nm UV-VIS Spectrophotometer
752G UV-VIS Spectrophotometer been widely used in colleges and enterprises for general quantitative analysis and experiments based in absorbance measurements....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Aoda 752G 200-1000nm UV-VIS Spectrophotometer
752G UV-VIS Spectrophotometer been widely used in colleges and enterprises for general quantitative analysis and experiments based in absorbance measurements.
● High quality silicon photometric diode detector and 1200 lines/mm diffraction grating ensure the high quality accuracy and precision.
● Backlit LCD display for an easy readout.
● Automatic 0A and 100%T.
● Easy switching of transmittance, absorbance and concentration modes, just by pressing one key.
● Direct concentration read-out and concentration factor setting function.
● Large sample compartment, for 5 - 100mm path length cuvettes with optional holders.
● Easy to change the halogen lamp or deuterium lamp by the user himself.
● Sample compartment for 5-100mm cuvettes
● Equipped with RS232 port
● Precise automatic T/A changeover
● Automatic zero and full scale adjustment
● Direct concentration read-out and concentration factor setting function
● Software optional
● Dedicated printer optional
| 752G UV-VIS Spectrophotometer | |
| Photometry | Split Beam |
| Monochromator Type | Czerny-Turner |
| Focal Length | 160mm |
| Grating | 1200 lins/mm |
| Detector | Silicon Photocell |
| Spectrum Bandwidth | 4nm |
| Wavelength Setting | Manual Turn Knob |
| Wavelength Range | 200~1000nm |
| Wavelength Accuracy | ±2nm |
| Wavelength Repeatability | ≤1nm |
| Stray Light | ≤0.3%T( at 220nm NaI, 360nm NaNo2 ) |
| Photometric Range | 0.0-100.0% T; 0.000-1.999 A; 0.000-1999 C; |
| Photometric Accuracy | ±0.5% T; ±0.004 Abs (0-0.5A); ±0.008 Abs (0.5-1A) |
| Photometric Repeatability | ≤0.2% T; 0.002 Abs (0-0.5A); 0.004 Abs (0.5-1A) |
| Noise | 100%（T）noise≤0.3%(T) ， 0%（T）noise≤0.2%(T) |
| Power | AC220V±22V 50Hz±1Hz, 130W |
| Weight | 16kg |
| Dimensions(L*W*H) | 560mm x 490mm x 285mm |
Standrad Accessories
● Operation manual 1
● UV WIN8 Spectrum data processing software
● Quartz cuvette 1cm 2pcs
● Power cable 1
● Fuse 2pcs
● Cuvette holder 50mm
Optional Accessories
● Thermal Plotter
