AODA 1400degree High temperature Muffle furnace
We have 4L/5L/6L/8L/12L for 1400 degree muffle furnace...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service

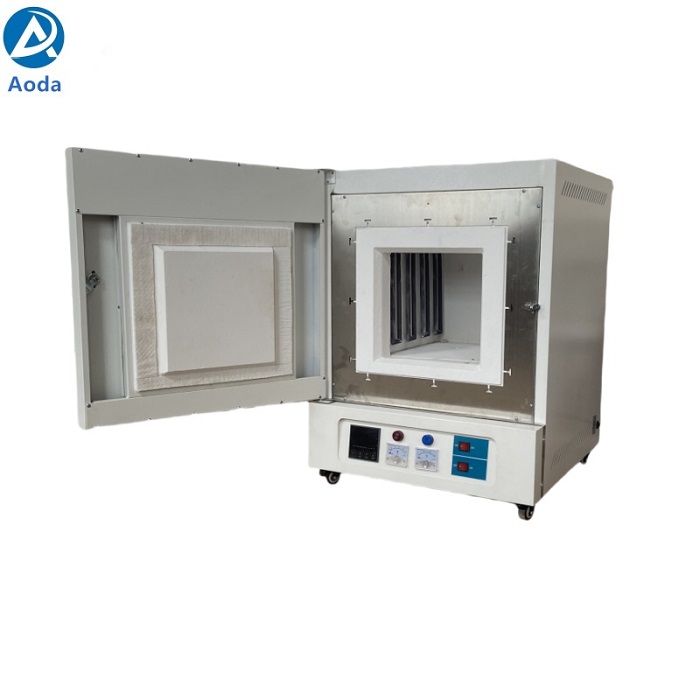

AODA 1400degree High temperature Muffle furnace
1400℃ muffle furnace is supplied to colleges and universities, research institutes, industrial and mining enterprises for powder roasting, ceramic sintering, high temperature experiments, material processing and quality inspection.
The box-type muffle furnace uses high-quality silicon carbon rods as heating elements;
Adopts intelligent temperature control system, thyristor control, phase shift trigger;
The furnace chamber uses high-quality 1600-type alumina polycrystalline fiber inorganic material formed by vacuum adsorption;
The furnace body is a double-layer furnace shell, using the current popular air insulation technology combined with thermal induction technology to drive the intelligent air cooling system, and uses soft start constant current control to extend the life of the heating element.
It has over-temperature alarm power-off function and leakage protection measures, and the operation is safe and reliable
1400℃ muffle furnace | |||||
Model | AZ-4-14TC
| AZ-5-14TC
| AZ-6-14TC
| AZ-8-14TC
| AZ-12-14TC
|
Power supply | AC220V 50/60HZ | AC380V 50/60HZ | |||
Chamber size(can be customzied) (D*W*H) | 250*150*100 mm | 300*200*120 mm | 300*200*200mm | 400*250*160mm | 400*300*300mm |
Rated power | 4kw | 5kw | 6kw | 8kw | 12kw |
Furnace chamber size | 1600 type high quality alumina polycrystalline fiber furnace | ||||
Heating unit | High quality silicon carbon rod | ||||
Temp.measurement unit | S-type small platinum-rhodium thermocouple | ||||
Temp. controller | The temperature control system adopts artificial intelligence regulation technology, with PID regulation, self-tuning function, 8-30 temperature rise and fall programs | ||||
Work temperature | ≤1300℃ | ||||
Max temperature | 1400℃ | ||||
Recommend rises | 10℃~15℃/min | ||||
Constant temperature accuracy | ±1℃ | ||||
