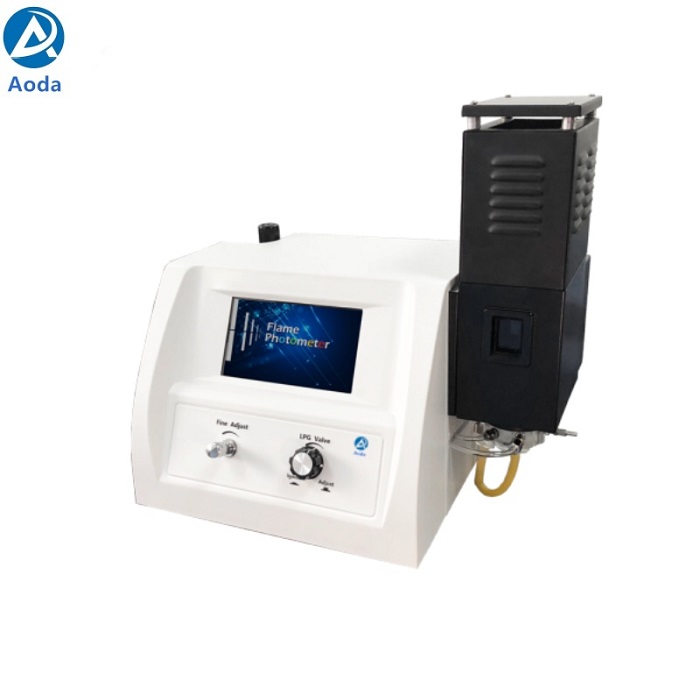

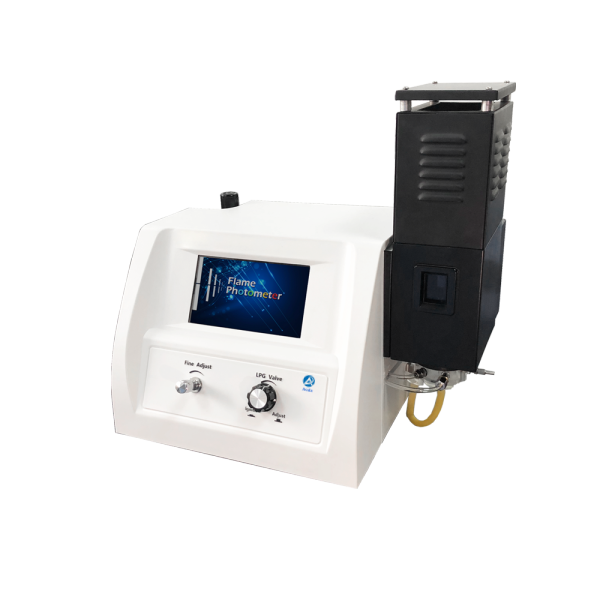

Aoda FP6450 Na K Ca Li Ba test Flame Photometer for laboratory use

Aoda FP6450 Na K Ca Li Ba test Flame Photometer for laboratory use

FP6450 flame photometer is a newly designed instrument. It has the advantages of small size, convenient operation, stability and reliability.

The host uses a 7-inch color capacitive touch LCD screen,It can store up to 200 sets of test data of the standard curve with a set of 10 points.The FP series flame photometer uses liquefied gas as fuel gas.

● 7- inch color touch- screen

● Direct concentration display

● Automatic calculation of correlation coefficient

● Pre-selection of flame sizes

● Flameout protection device

● Measuring range changing

● Concentration units selectable

● Multilingual user interface

● Air compressor provide

FP6450 Flame photometer

● Operation mode: 7- inch color touch- screen

● Display value: Concentration value

● Data range: 0.000～999.9

● Testable: K, Na, Li, Ca, Ba

● Channel Qty: 5

● Range ppm:K 0-100,NA 0-160,LI 0-100,CA 0-1000, BA 0-3000

● LOD ppm: K 0.01,Na 0.01, Li 0.1,Ca 2, Ba 6

● Linear error: K 0.195, Na 0.69,Li 0.15, Ca 3, Ba 9

● Response time: <8s

● Sample uptake: <6ml/min

● Stability: < 3% drift over15s when continuously aspirating.

● Reproducibility: < 3% coefficient of variation for 7 consecutive samples

● Curve Graph: Display

● Printer: Optional build-in thermal printer

● COM: USB

● Fuel: LPG

● Power: AC220V±22V 50Hz±1Hz,250W

● Packing size: 570mmX530mmX400mm 0.12M 18kg
