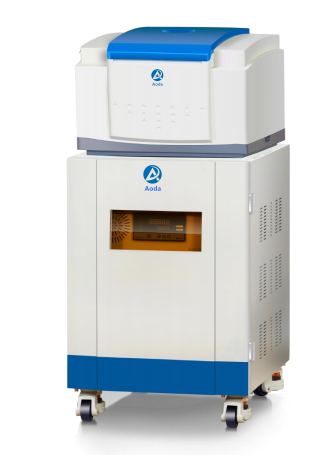

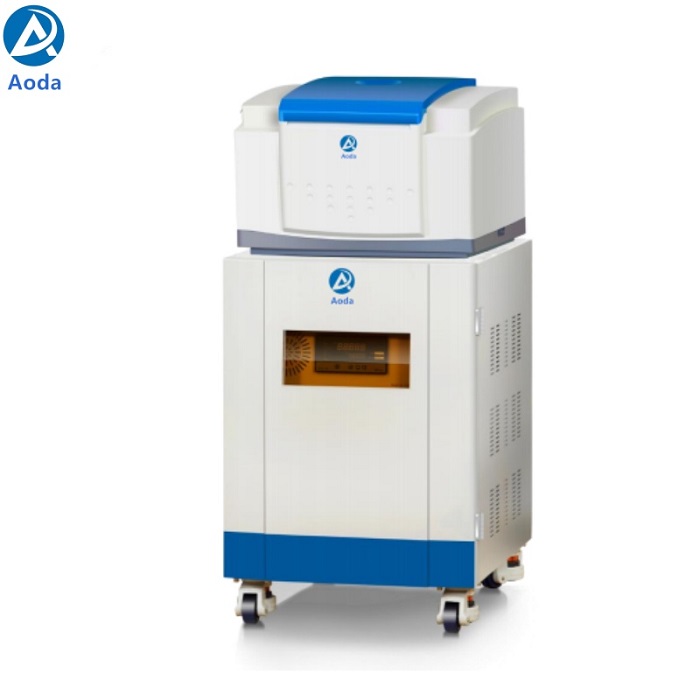

Aoda PQ001 SFC Solid fat content NMR Analyzer

Aoda PQ001 SFC Solid fat content NMR Analyzer

PQ001 NMR solid fat content analyzer is a high performance small NMR, mainly used for solid fat content testing.

PQ001 Nuclear Magnetic Resonance Solid Fat Content Analyzer This product not only has the characteristics of nuclear magnetic resonance that does not require special sample preparation, non-destructive testing, and is green and environmentally friendly, but also has excellent measurement accuracy and repeatability, fast analysis speed, and simple and convenient operation. It is an ideal desktop small nuclear magnetic resonance analyzer with high cost performance.

1. Contains multiple hard pulse sequences such as Fid and FID_SFC1 to meet the test needs of different requirements;

2. High degree of automation, simple and adjustable parameters, easy operation and usability;

3. Sampling can be planned and data can be automatically saved, and data can be queried and exported;

4. Fast inversion speed;

5. No sample processing is required, the test is fast, and the sample can be recycled;

6. The test results meet domestic and international standards.

1. Magnet type: permanent magnet; Magnetic field intensity: 0.5±0.08T;

2. SFC measuring range : 0~100%

3. Magnetic field uniformity: ≤30ppm (Ø10mm×H40mm,Cylinder);

4. Magnetic field stability: <200Hz/Hour;

5. Magnet temperature control: dual system of nonlinear precise temperature control,temperature tunable from 250℃~350℃;

6. RF field: pulse frequency: 1-30MHz; frequency control accuracy: 0.1Hz;

7. RF power amplifier > 300W;

8. Maximum bandwidth: 2000KHz;

9. Probe Size: 10mm (standard configuration);

10. Effective sample detection area: Ø10mm×H40mm (standard configuration);

11. Maximum echo number is 18,000; minimum echo time : 60µs;

12. Based on PCI bus industrial control computer platform, I7 processor, 8G DDR memory, 1T hard disk.

13. Operating Conditions ：

Power supply: 220V, 50Hz

- Temperature: 22-280C

- Humidity: 30-70%

14. Size (L*W*H): 1685mm×520mm×386mm

15. Weight: 134Kg (Magnet box 60Kg, Spectrometer 25Kg, RF unit 35Kg )
