MS10-H500-Pro 1500rpm 500degree 254x254mm 30L Magnetic Hotplate Stirrer

MS10-H500-Pro 1500rpm 500degree 254x254mm 30L Magnetic Hotplate Stirrer

Magnetic Hotplate Stirrer is a laboratory instrument used for liquid mixing, mainly for stirring or simultaneously heating and stirring low viscosity liquids or solid-liquid mixtures....

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

MS10-H500-Pro 1500rpm 500degree 254x254mm 30L Magnetic Hotplate Stirrer


Magnetic Hotplate Stirrer is a laboratory instrument used for liquid mixing, mainly for stirring or simultaneously heating and stirring low viscosity liquids or solid-liquid mixtures.


Features 蓝.jpg

  • Large volume: Up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring

  • Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer

  • LCD display for precise monitoring of speed and temperature . External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at ±0.2°C

  • Digital speed control of 100 -1500rpm

  • Max. heating plate temperature 500℃

  • The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off

  • Data connector : The SD card also records the instrument's running data in real time.

  • Timing function: the running time of the instrument can be set.



MS10-H500-Pro LCD Digital Magnetic Hotplate Stirrer

Work plate size

254x254(10inch)

Work plate material

Glass ceramic

Max load

30L(H2O)

Speed

100~1500rpm

Heating range

RT~500ºC;increment 1ºC

Temp.accuracy

±0.1ºC

Timer function

1min-99h59min

External temperature sensor

PT100

Motor

Brushless motor

Power

1400W

Overheat temperature protection

540ºC

Protection rate

IP21

Data storage

SD card

Power supply

100~240v/50/60hZ

Weight

7kg

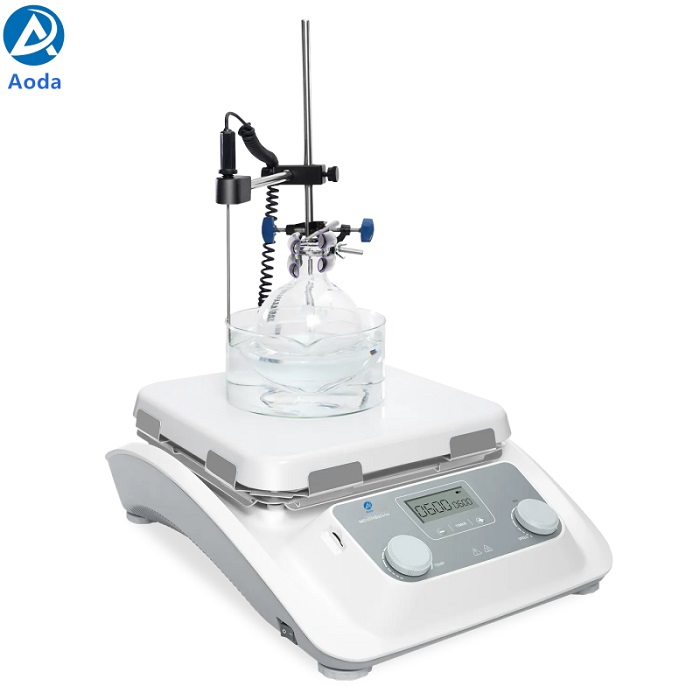

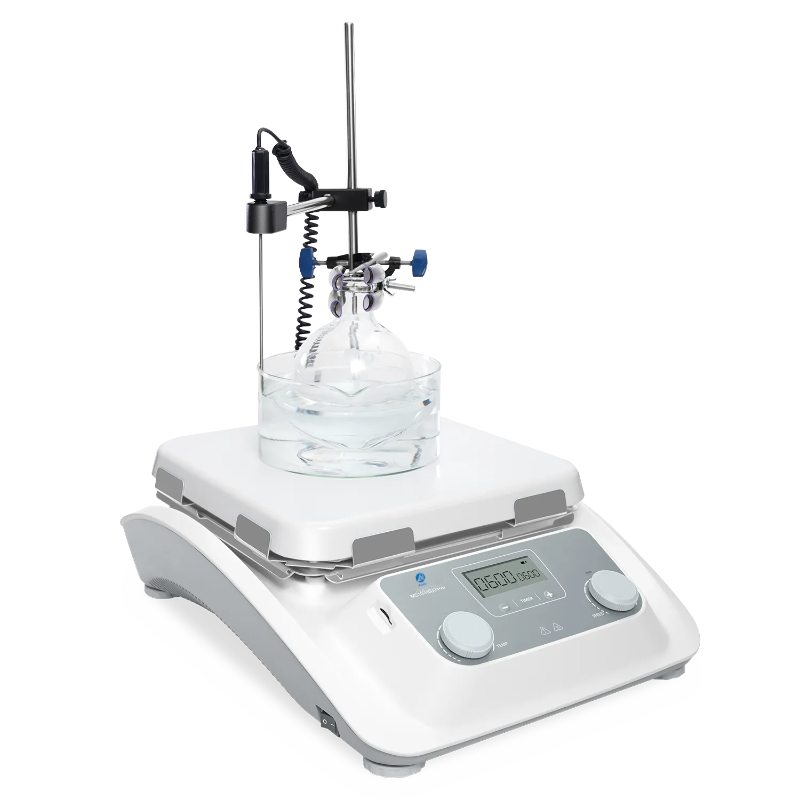

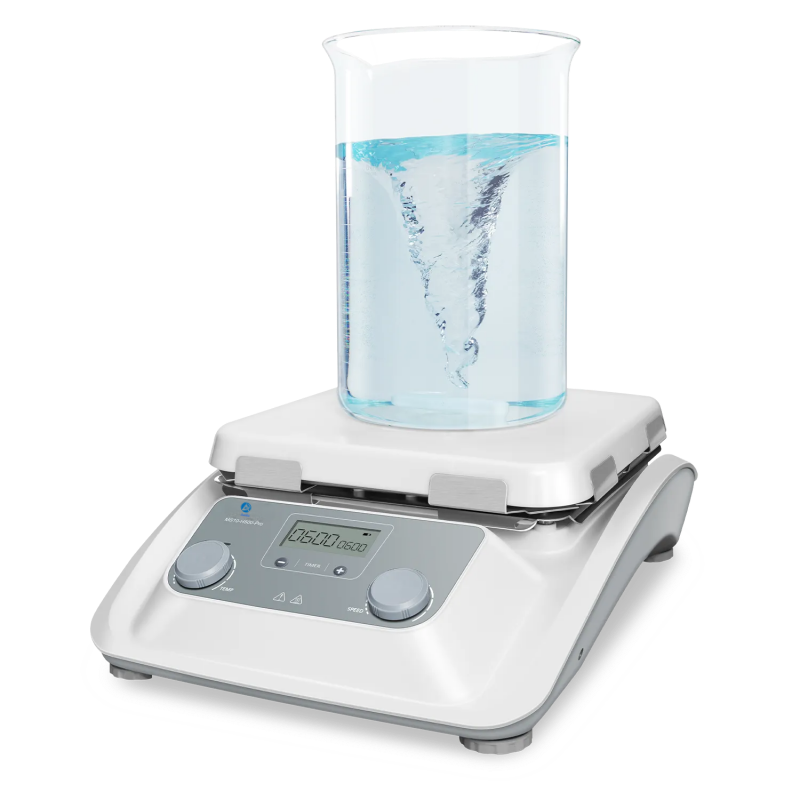

Product photo 蓝.jpg
