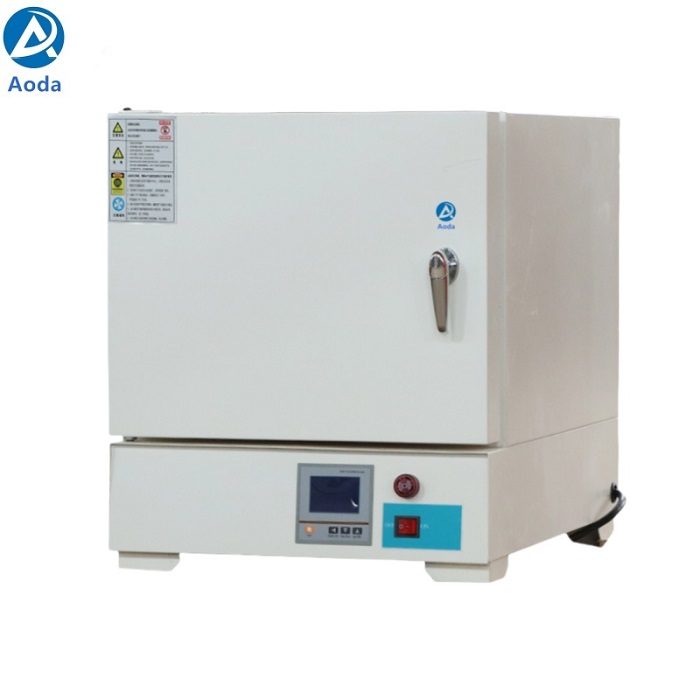

AODA 1200degree programmable control muffle furnace

AODA 1200degree programmable control muffle furnace

The integrated programmable temperature-controlled muffle furnace is a cycle-operated electric furnace. It can be used for sintering, heating and heat treatment in coal, electric power, chemical, building materials, metallurgy, scientific research units and laboratories of colleges and universities.

The integrated program temperature control muffle furnace adopts overall design and humanized menu design, and adopts LCD program control instrument, high brightness, wide window digital display, clear and intuitive indication. Industrial PID self-tuning control technology, with 30-degree program programming setting, suitable for complex experimental processes, microcomputer intelligent control, solves the problems of temperature overshoot, and has excellent temperature control effect. After setting the temperature, the instrument automatically controls the heating, constant temperature, and temperature control is accurate and stable. Fault sound and light alarm, over-temperature sound and light alarm, and automatically cuts off the heating output.

The outer box shell is made of high-quality cold plate treated with phosphoric acid coating salt and then sprayed with high temperature plastic

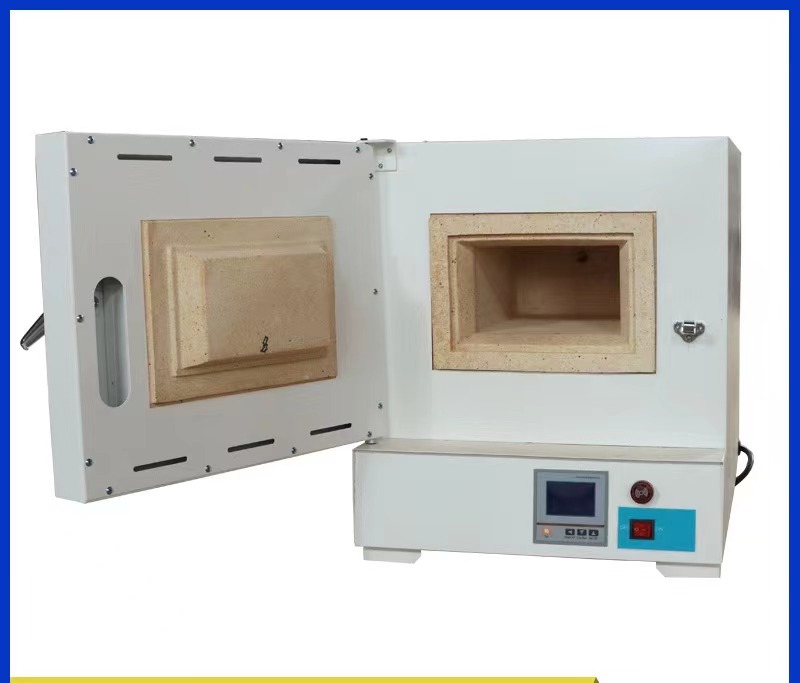

Adopt high-aluminum inner liner with good wear resistance, high-temperature furnace heats up and down, left and right

Insulation bricks and insulation cotton

Thermocouple enters from the upper back of the furnace body for accurate temperature measurement

The terminal heating wire terminal is located at the lower back of the furnace body

The controller is located below the furnace body, with a built-in control system, and the compensation wire connects the furnace body
