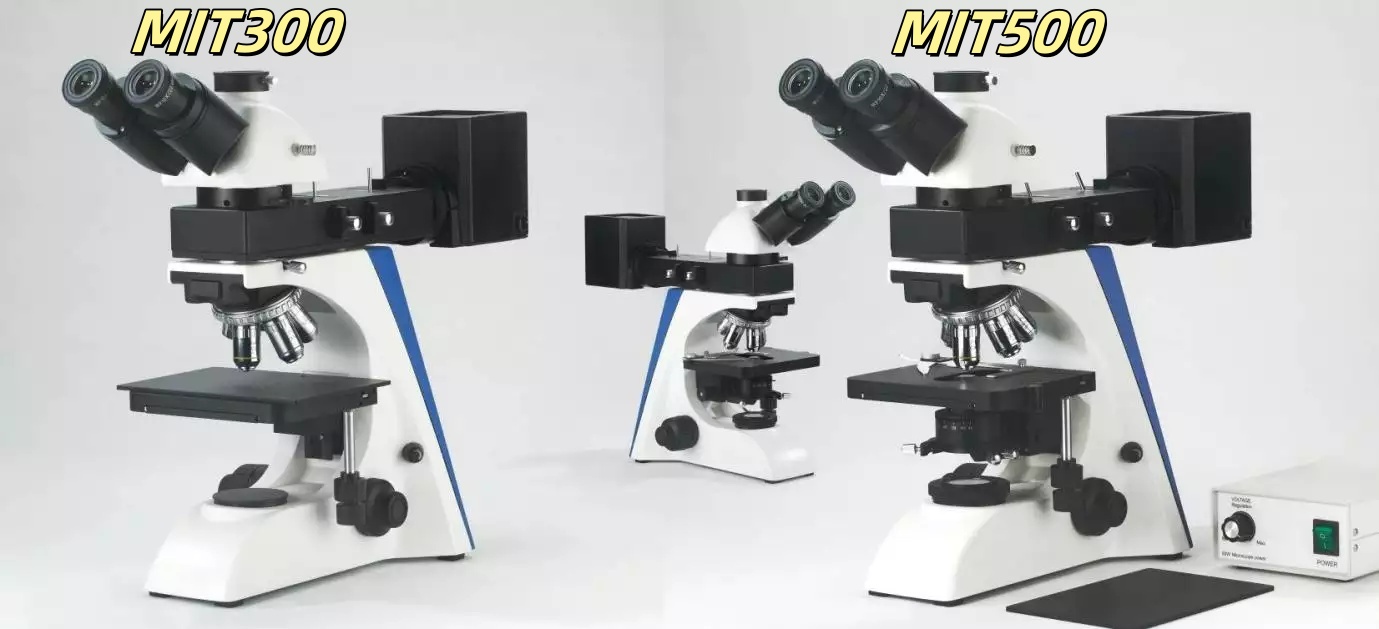

MIT300/500 Metallurgical Microscope
MIT300 Metallurgical Microscope is a reflection light source, MIT500 Metallurgical Microscope is a reflecting and transmission light source....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service

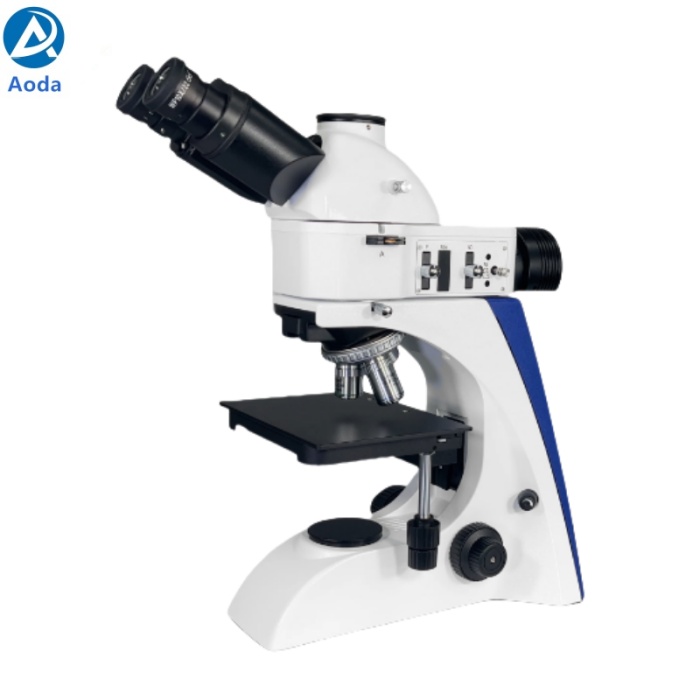

MIT300/500 Metallurgical Microscope
MIT300/500 metallurgical microscope is a professional metallographic laboratory equipment. The special semi-apochromatic objective lens used in our metallurgical microscope has a better observation effect. For metallographic dark-field microscopes, special dark-field objectives are used, which can be used for both dark-field and bright-field observations. MIT300 is a reflection light source, and MIT500 is a reflecting and transmission light source.
| Features of MIT300/500 Series Metallurgical Microscope
Dark field objective, Make observations in dark & bright fields
Oversize view field eyepiece, view field up to 22mm for comfortable observation
Trinocular head with dual transform. Light distribution (both): 100: 0（100% for eyepiece）80:20（80% for trinocular head and 20% for eyepiece）
Stage with the fast lowering unit can increase by 50mm for working distance, more convenient for observing big-size samples
The oversized three-layer mechanical stage provides more choices for samples

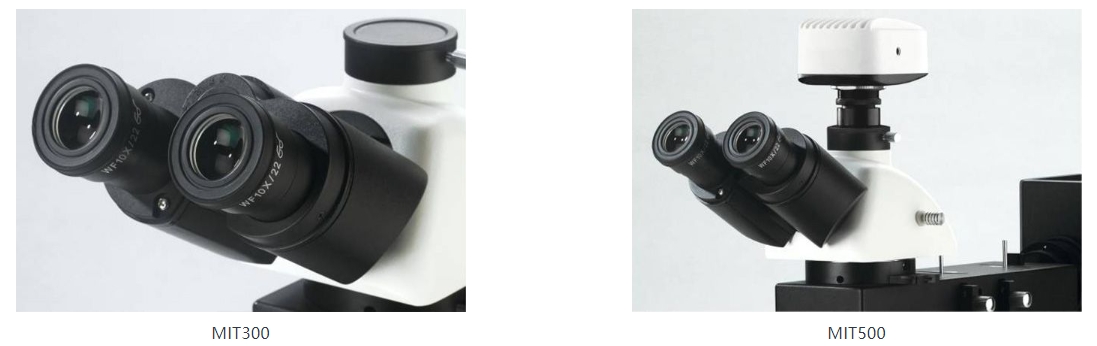

| Display of MIT300/500 Series Metallurgical Microscope

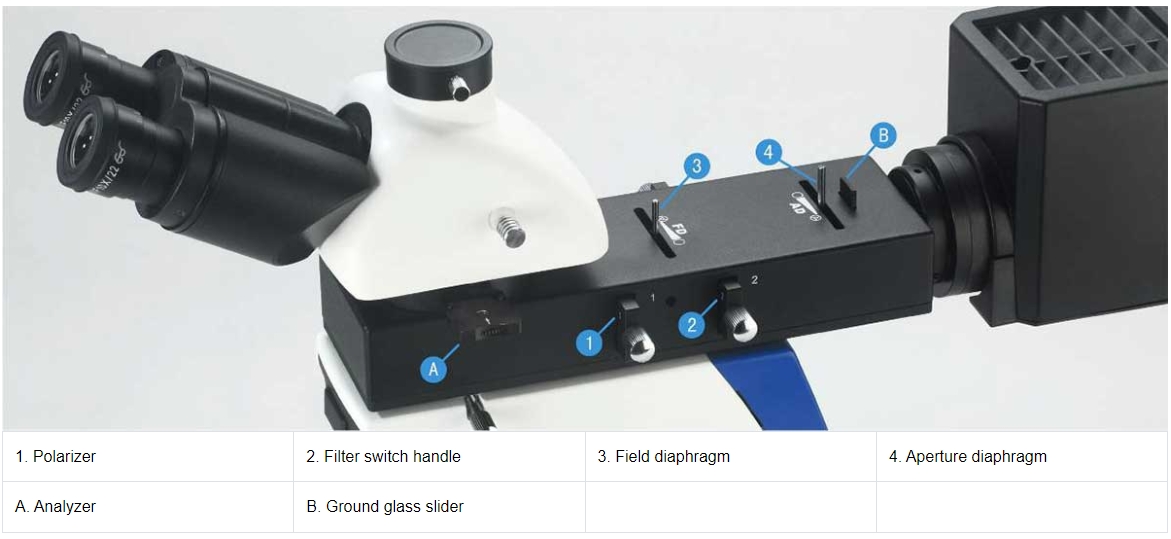

| Components of MIT300/500 Series Metallurgical Microscope

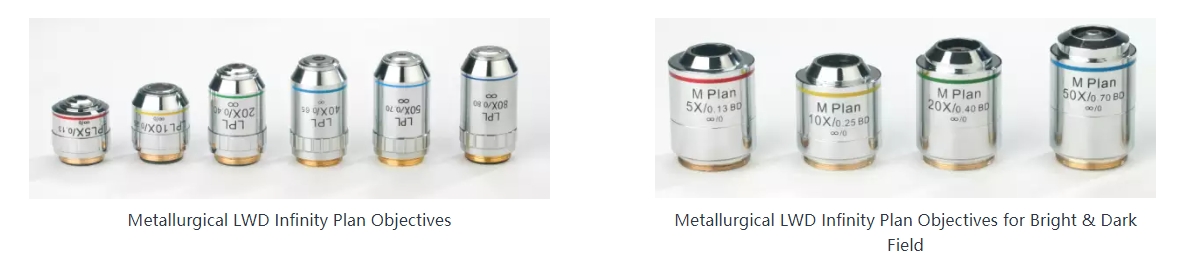

| Objective specification: ( “●” Is Standard outfits, “○” Is Optional Accessories.)
| Objective | N.A. | Working Distance(mm) | MIT300/MIT500 | MIT300D/MIT500D | |
| Metallurgical LWD InfinityPlan Objectives | LMPlan FL 5× (Semi Apochromatic Objective) | 0.15 | 21.00 | ● | |
| LMPlan FL 10×(Semi Apochromatic Objective) | 0.30 | 20.00 | ● | ||
| LMPlan FL 20×(Semi Apochromatic Objective) | 0.40 | 15.00 | ● | ||
| LMPlan FL 50×(Semi Apochromatic Objective) | 0.75 | 4.25 | ● | ||
| LPL 80× | 0.80 | 0.85 | ○ | ||
| LMPlan 100×（Dry）(Semi Apochromatic Objective) | 0.85 | 3.00 | ○ | ||
| Metallurgical LWD InfinityPlan Objectives for Bright/Dark Field | M PLAN 5× BD | 0.15 | 7.30 | ● | |
| M PLAN 10× BD | 0.25 | 11.50 | ● | ||
| M PLAN 20× BD | 0.40 | 5.60 | ● | ||
| M PLAN 50× BD | 0.75 | 1.60 | ● |
| Item | Specification | MIT300 | MIT300D | MIT500 | MIT500D | |
| Eyepiece | WF10X／22mm （adjustable） | ● | ● | ● | ● | |
| WF10X／22mm （adjustable, reticule 0.1mm） | ● | ● | ● | ● | ||
| Metallurgical LWD Infinity PlanObjective | LMPlan FL 5×/0.15(Semi Apochromatic Objective) | W.D=21.00mm | ● | ● | ||
| LMPlan FL 10×/0.30(Semi Apochromatic Objective) | W.D=20.00mm | ● | ● | |||
| LMPlan FL 20×/0.40(Semi Apochromatic Objective) | W.D=15.00mm | ● | ● | |||
| LMPlan FL 50×/0.75(Semi Apochromatic Objective) | W.D=4.25mm | ● | ● | |||
| LPL80X／0.80 | W.D=0.85mm | ○ | ○ | |||
| LMPlan FL 100×/0.85 (Dry)(Semi Apochromatic Objective) | W.D=3.00mm | ○ | ○ | |||
| Metallurgical LWD Infinity Plan Objectives for Bright & Dark Field | M PLAN 5×／0.15 BD | W.D=7.30mm | ● | ● | ||
| M PLAN 10×／0.25 BD | W.D=11.50mm | ● | ● | |||
| M PLAN 20×／0.40 BD | W.D= 5.60mm | ● | ● | |||
| M PLAN 50×／0.75 BD | W.D= 1.60mm | ● | ● | |||
| Seidentopf Trinocular Head | Inclined 30°,rotatable 360°, Interpupilary distance: 48mm～76mm Light distribution (both): 100: 0（100% for eyepiece） 80:20 (80% for trinocular head and 20% for eyepiece) | ● | ● | ● | ● | |
| Nosepiece | Quintuple | ● | ● | |||
| Quadplex (specially for bright /dark field objectives M26x1/36″) | ● | ● | ||||
| Mechanical Stage | Stage size: 200mm x 150mm Travel range: 77mm x 52mm Stage fast lowering unit: Up-Down moving range can be increased 50mm. | ● | ● | |||
| Stage size: 182mm x 140mm, Travel range: 77mm x 52mm | ● | ● | ||||
| Polarizing Unit | Polarizer /Analyzer | ● | ● | ● | ● | |
| Condenser | Abbe N.A.1.25, with Iris Diaphragm. | ● | ● | |||
| Coaxial Coarse and Fine Focusing Unit | Coarse stroke: 25mm, Fine stroke per rotation: 0.2mm, fine division 2 μm, Tightness adjustment, upper distance limiter. | ● | ● | ● | ● | |
| Reflecting Illumination | 5WLED lamp DC input (Universal voltage: 100V～240V) | ● | ● | |||
| 12V/50W Halogen lamp (Universal voltage: 100V～240V) | ○ | ● | ○ | ● | ||
| Transmitting Illumination | 5WLED lamp DC input (Universal voltage: 100V～240V) | ● | ○ | |||
| 12V/30W Halogen lamp (Universal voltage: 100V～240V) | ○ | ● | ||||
| Filter | Blue | ○ | ○ | ○ | ○ | |
| Green/ Amber/ Grey | ○ | ○ | ○ | ○ | ||
| C-Mount | 1 X /0.75X/0.5X (Focus Adjustable) | ○ | ○ | ○ | ○ | |
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
Packing Size: 520mm×470mm×430mm Gross Weight: 16 kgs Net Weight: 12kgs
