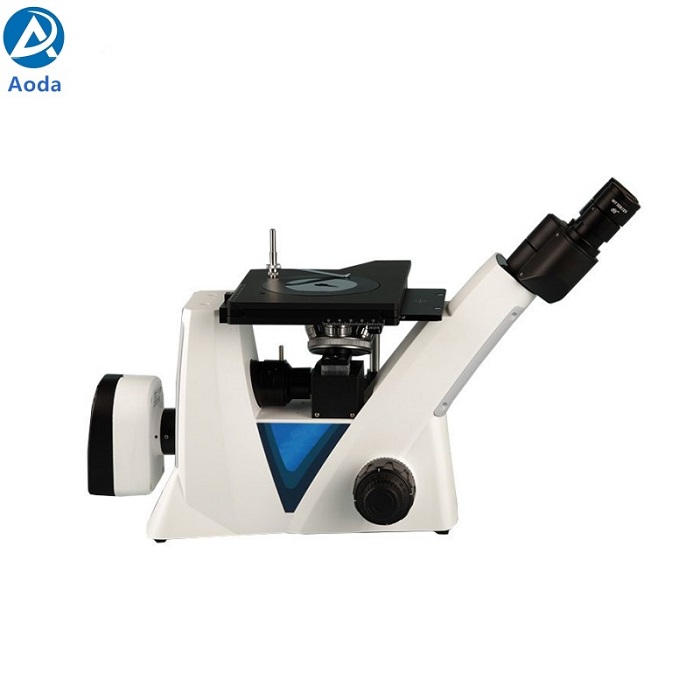

MDS300 Inverted Metallurgical Microscope
MDS300 inverted metallurgical microscope is a kind of inverted microscope. The minimum magnification of a metallographic microscope is 5X objective. The microscope uses a Plan field objective with an infinitely long working distance.

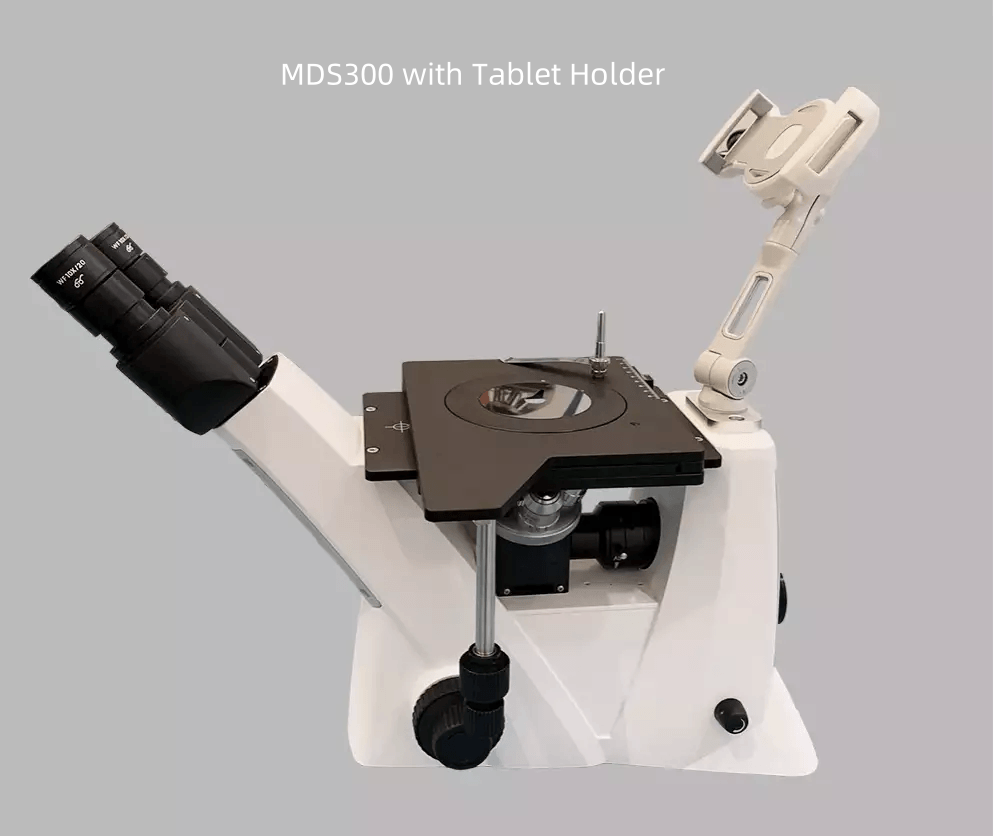

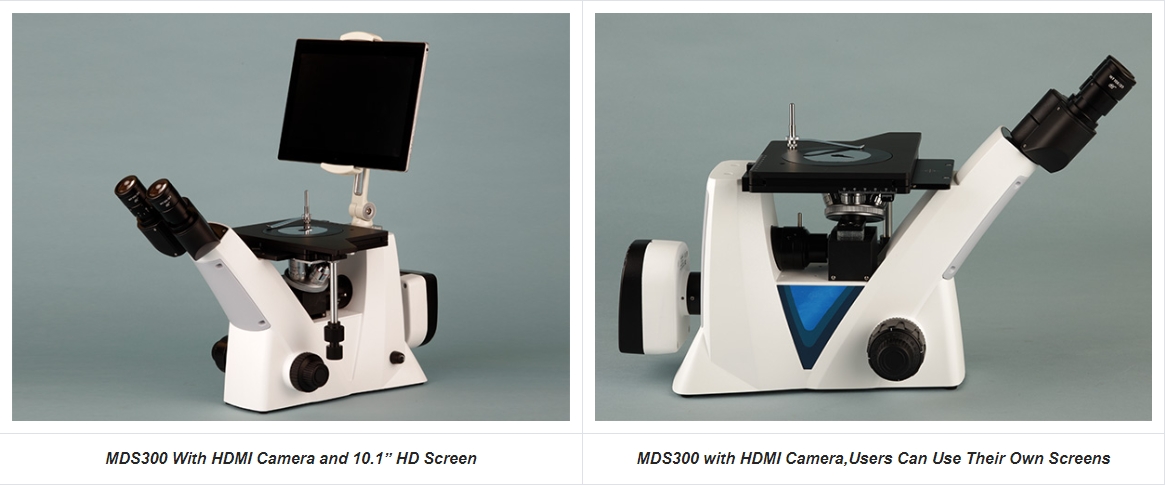

The models of MDS300 and BDS300 are similar in that they can be installed with tablet holders and built-in 0.65X C-mount for convenient connection to the digital camera. The MDS300 inverted metallurgical microscope is mainly used to observe some irregular and large samples of metallographic materials.

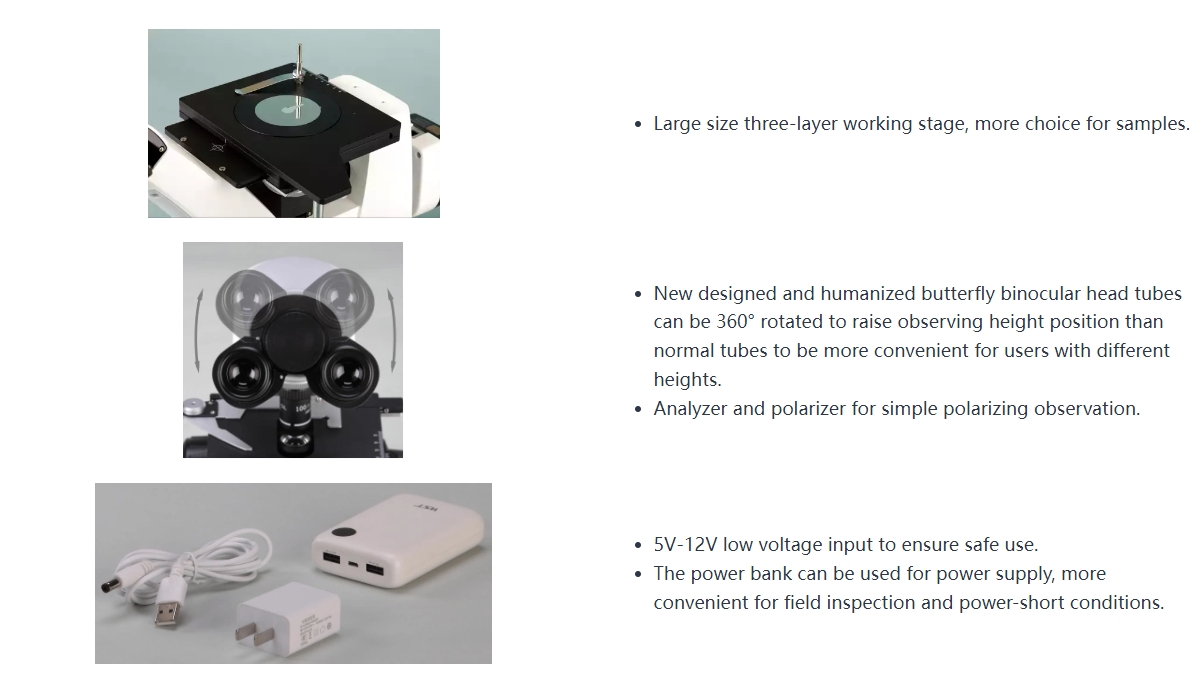

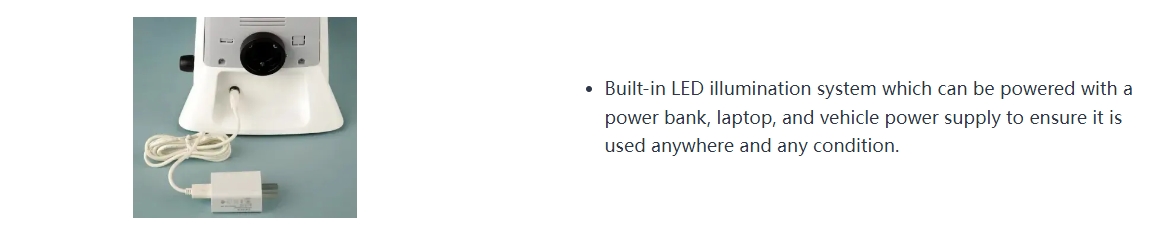

| Features of MDS300 Inverted Metallurgical Microscope
| MDS300 Inverted Metallurgical Microscope Outfits
| Item | Specification | MDS300 | |
| Eyepiece | WF10X/20mm (High eye-point) | ● | |
| WF10X/20mm (High eye-point, adjustable Focus, Reticule 0.1mm) | ● | ||
| Metallurgical LWD InfinityPlan Objectives | LPL 5×／0.15 | W.D=15.00mm | ● |
| LPL 10×／0.25 | W.D.= 18.48mm | ● | |
| LPL 20×／0.40 | W.D.= 8.35mm | ● | |
| LPL 50×／0.75 | W.D.= 2.55mm | ● | |
| LPL 80×／0.80 | W.D.= 0.85mm | ○ | |
| LMPlan FL 100×／0.85(Dry) | W.D.= 3.00mm | ○ | |
| Butterfly Siedentopf Head | Eyepiece tube 360°rotated, Inclined 45°, IPD: 48-75mm,Light distribution: 70:30(70% for eyepiece,and 30% for camera tube) | ● | |
| Nosepiece | Quadplex | ● | |
| Mechanical Stage | Stage size: 180 mm×155mm, Moving range: 75×40mm, Scale: 0.1mm, Round slide size: φ110mm | ● | |
| Coaxial Coarse and Fine Focusing unit | Coarse stroke: 10mm, Fine stroke per rotation: 0.2mm, fine division 2μm. | ● | |
| Polarizing Unit | Polarizer /Analyzer | ● | |
| llumination | 5WLED Warm lamp (Input voltage：100V～240V) | ● | |
| Filter | Grey | ○ | |
| C-mount | 0.65×C-Mount (built-in) | ● | |
| Universal Holder for HD Screen | The Max. height is 22mm | ○ | |
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
Packing Size: 500mm×425mm×305mm Gross Weight: 9.0 kgs Net Weight: 7.0 kgs
