Aoda MJ-IIIA Double-head Gluten tester

Aoda MJ-IIIA Double-head Gluten tester

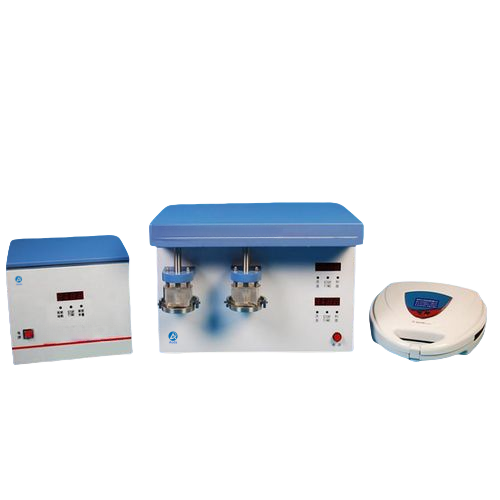

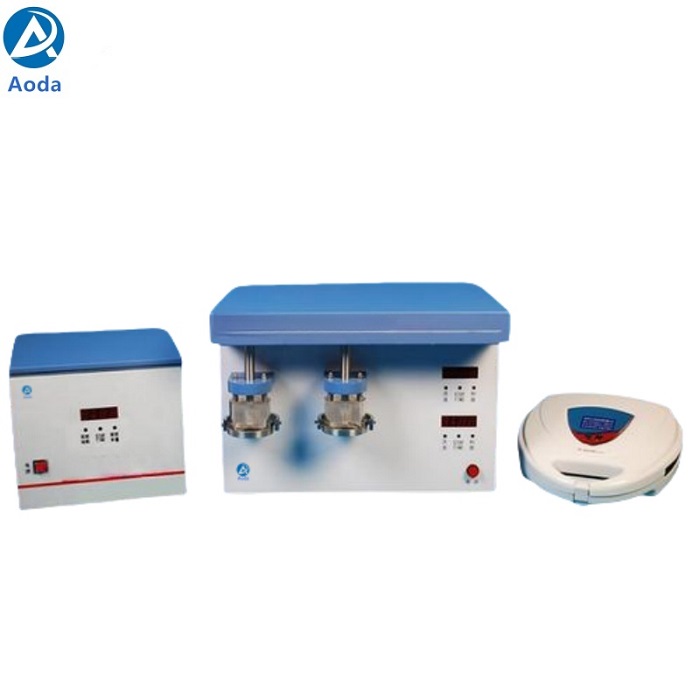

MJ-ⅢA double-head gluten tester consists of three independent instruments: a double-head gluten washer,

an MJZ gluten index tester, and a drying instrument. It is a special instrument used to measure the wet (dry)

gluten content, gluten quality (gluten index) and gluten water holding rate in flour, especially suitable for

users with a large number of samples.

The double-head gluten tester is widely used in food and flour processing, grain and oil research institutions,

grain storage and other departments.

Gluten washing part:

Agitator speed: 120r/min±2r/min

Fine washing net specification: 80μm (200 mesh) metal sieve

Coarse washing net specification: 800μm (26 mesh) metal sieve

Washing liquid flow rate: 50ml/min～56ml/min

Washing sample volume: 10g (single head), 10g*2 (double head)

Inner diameter of washing cup: 54mm

Dough mixing time: 1s～59s (data adjustable, every 1s)

Washing time: 1s～59s, 1min~9min (digital display adjustable)

Wet gluten content: double experimental determination result difference ≤5%

Dry gluten content: double experimental determination result difference ≤5%

Working power supply: AC220V±5% 50Hz

Gluten centrifugal part:

Centrifugal time: 1s~59s, 1min~9min (digital display adjustable)

Centrifugal speed: 3000r/min, 6000r/min±5r/min (adjustable), high-precision speed control, with safety locking cover

Centrifugal sieve box: pore size 500μm

Index sieve box: pore size 600μm

Gluten index: between 70~100, the difference between the two measurement results is allowed to be no more than 11 units; below 70, the difference between the two measurement results is allowed to be no more than 15 units

Working power supply: AC220V 50Hz

Drying part:

Working temperature: 150℃~200℃

Working voltage: AC220V ±5%, 50Hz

Working environment: relative humidity <90%

Rated power: 650W
