AODA HNY-2102 Vertical Thermostatic Shaker
HNY-series Vertical Thermostatic Shaker has Single door and Double door types....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service

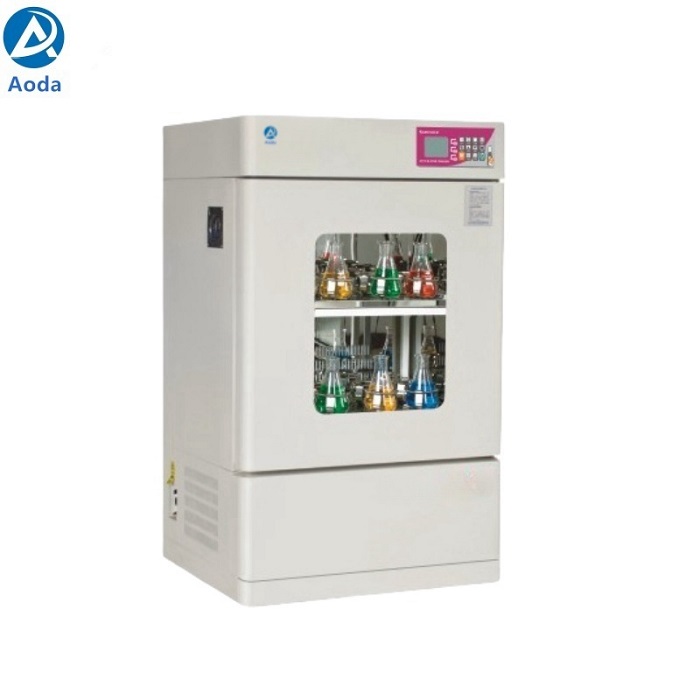

AODA ANY-2102 Vertical Thermostatic Shaker
Automatic analyzing, listing table, charting and printing on downloaded dates.Itcan trace back to the whole process of experiment in order to optimize the reaction conditions and choose the test method to confirm the experiment process.
High quality servo motor.Speed control accurately, noiseless, durable and high efficiency.
Multi-steps rotate speed, temperature and time control systems.Different rotational speed, temperature and time can be set at one time; operation model can be automatically converted during operation.
Slow accelerate and decelerate design. Slowly start and stop, prevent bacteria or cells to shear force is too large and damage.
Advantaged air ductdesign.Air duct design contributes to high-precision temperature uniformity.
Automaticdefrosting function.It makes shakers operating stably in low temperature for a long time.
High-precision speed control. PID feedback control, the motor speed is stable and accurate, the accuracy of ±1RPM
High-precision temperature control. PID feedback control, the measurement accuracy of 0.1 °C. Audible and visual alarm, whenthe measured temperature deviation from the set value ≥±3 °C,
Unique drive system.It makes the machine running smoothly, stably, durably and reliably.
Super visual 7 inch color touch screen. Modular classification displays different functions, 7 inch touch screen under largeangle to display control parameters.
The display has a real time temperatureand speed curve display function. Historical data and real time date at the same diagram display, easyto check.
Memorizedand protectedoperating parameters.Unexpected power outage, the original set-up process can be automatically resumed.
Functionof encrypted and lockedoperating parameters.It can avoidhuman errors.
Continuouslyrunningor timing. Shakers can display the set time and time remaining
Unique slow-start design.Preventing the shake-flask liquid splashing caused by a sudden start, effectively guaranteeing the accuracy of quantitative experiments
operationas an optional. Mobile phone operationcan be realized.
Clock and date can be displayed (touch screen only).

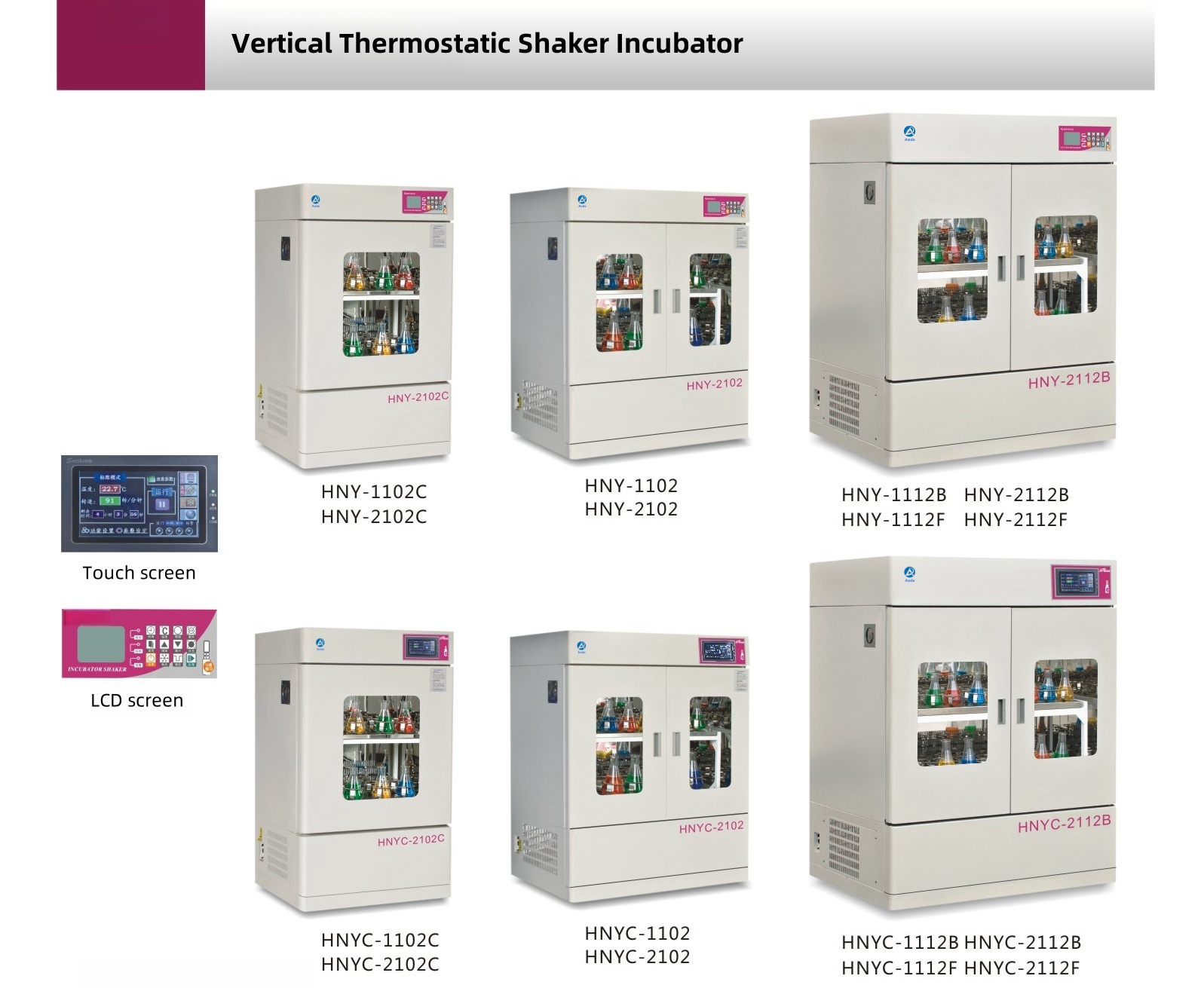

Vertical Thermostatic Shaker | ||
Model | HNY-2102C | HNY-2102 |
Specifications | ||
Door | Single door | Double-door |
Control model | P.I.D microprocessor chip | |
Convection model | Forced convection | |
Shake model | Convolution | |
Display | 7 Inch touch screen | |
Control system | Multiple Programmable mode(temp,speed,time) | |
Cyclotron frequency range(rpm) | 0，20-350(To do static culture) | |
Cyclotron frequency sensitivity(rpm) | ±1 | |
Orbit Diameter(mm) | Φ26 | |
Maximum capacity | 100ML×60 OR 250ML×38 OR 500ML×22 OR 1000ML×16 | 100ML×100 OR 250ML×56 OR 500ML×44 OR 1000ML×24 |
Standard capacity | 250ml×24 | 250ml×28 500ml×22 |
Size of platform(mm) | 500×360 | 710×455 |
Timing range(h) | 0-999.9(Any time,continuous duty) | |
Temperature range(℃） | 4°Cto 65°C（20°C） | |
Temperature regulate sensitivity(℃） | ±0.1 | |
Temperature uniformity(℃） | ±0.5（37℃） | |
Temperature uniformity(℃） | ≤0.1（37℃） | |
Number of platform | TWO | |
Outside dimension（W*D*H)（mm） | 700×580×1280 | 950×700×1280 |
Capacity（L) | 175 | 335 |
Power（W) | 850 | 1150 |
Power supply | AC220±10% 50HZ | |
Net weight(kg) | 190 | 260 |
Gross weight(kg) | 220 | 290 |
Other functions | Ultra-low speed start, Adjustable start speed，Overspeed auto-prtection，Watch dog timer，Parameters Storage，Encryption parameters，Electricity incoming recovery，Refrigeration unit overload protection，Sound and light alarm when upper and lower overtemperature，Automatically stop when opening the door，Function of lighting and UV disinfection (optional) | |
