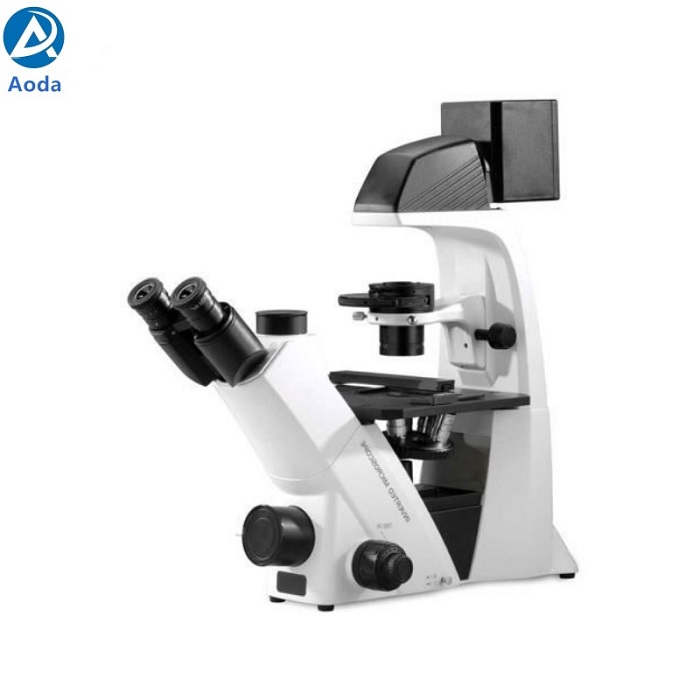

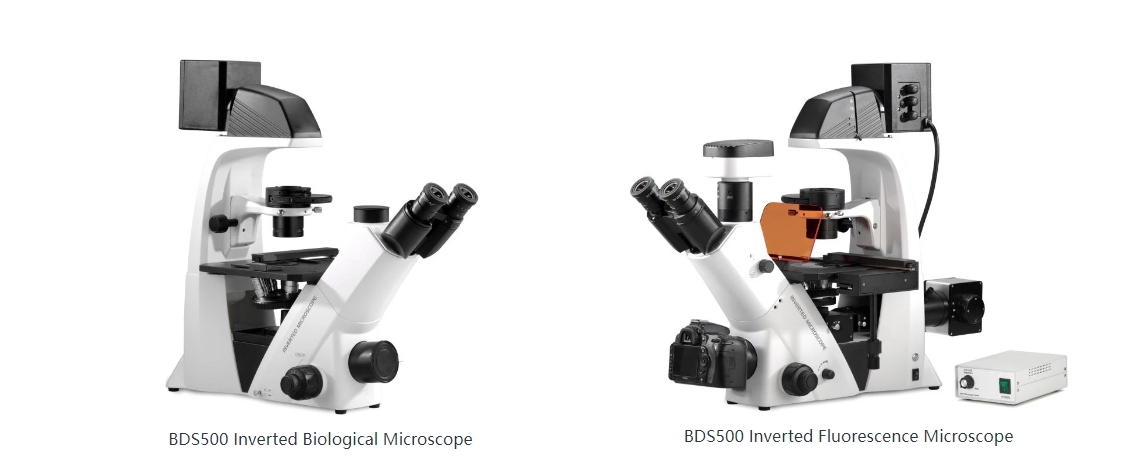

BDS500 Inverted Biological Microscope
BDS500 inverted biological microscope has three light paths, in addition to the eyepiece tube, digital head interface, and camera interface.
Except for the 4X which is a Plan objective, the other 10X/20X/40X objectives of this microscope are all phase contrast lenses.
BDS500 inverted biological microscope can satisfy phase contrast observation and bright field observation at the same time, and the configuration is a 4-hole rotating disc phase contrast condenser. Our BDS500 is a larger microscope model with more functions and a lot of room for upgrades.

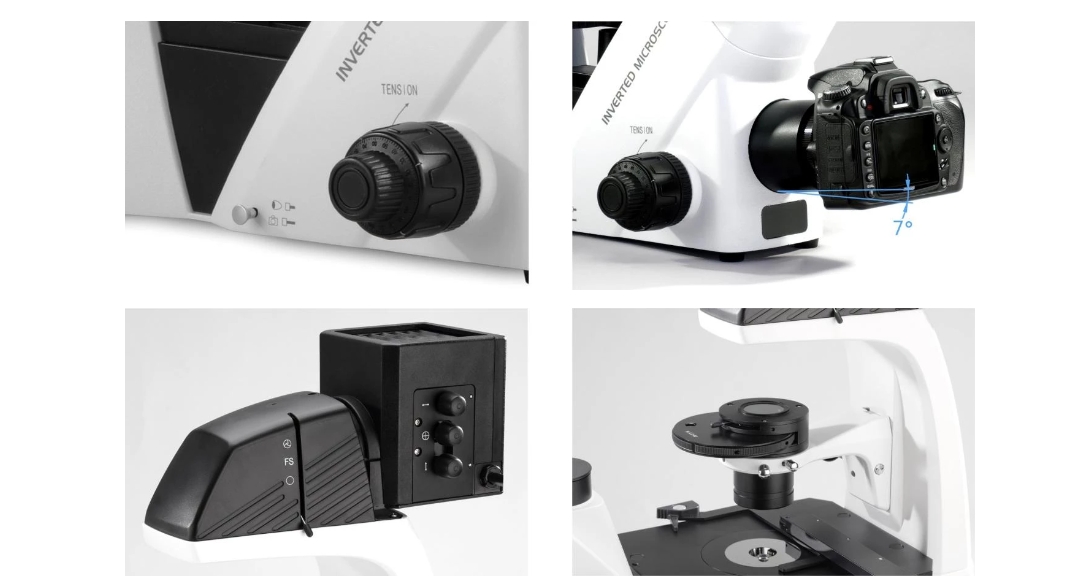

| Features of BDS500 Inverted Biological Microscope
Convertible handle for DSLR Camera Coaxial coarse and fine focusing knobs tension adjustment.
A special light port for the SLR digital camera, 7°inclined up to be more convenient to observe the image of the SLR camera.
12V/50W Kohler illumination makes the field more even and brighter.
4-hole rotating disc phase contrast condenser for standard to change bright field and phase contrast fast.

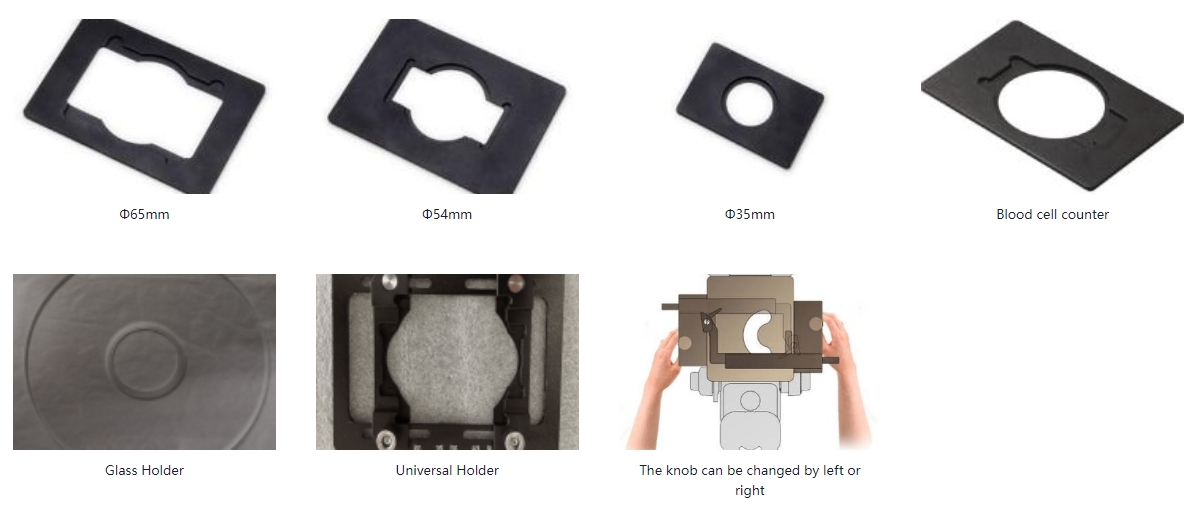

| Culture Dish Holder of BDS500 Inverted Biological Microscope

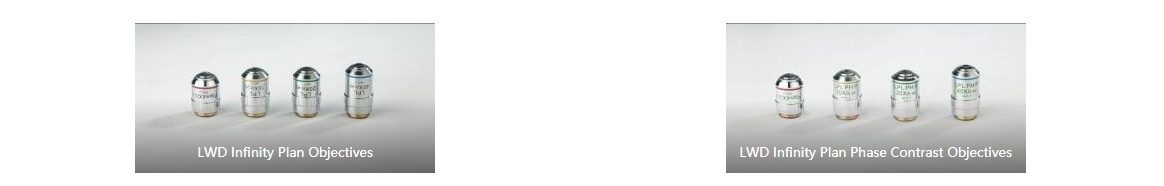

| Objective Parameter List (Cover-glass thickness 1.1mm)
| Objectives | N.A. | Working distance(mm) | |
| LWD Infinity Plan | Plan FL 2X | 0.06 | 7.2 |
| L Plan FL 4X | 0.11 | 12.1 | |
| L Plan FL10X | 0.25 | 10.3 | |
| L Plan FL 20X | 0.45 | 5.8 | |
| L Plan FL40X | 0.65 | 5.1 | |
| L Plan FL 2X | 0.06 | 7.2 | |
| LWD Infinity Plan Phase Contrast Objectives | L Plan FL PHP 4X(Both for Bright Field &Phase Contrast) | 0.1 | 9.2 |
| L Plan FL PHP 10X (Both for Bright Field &Phase Contrast) | 0.25 | 10.3 | |
| L Plan FL PHP 20X(Both for Bright Field &Phase Contrast) | 0.45 | 5.8 | |
| L Plan FL PHP 40X (Both for Bright Field &Phase Contrast) | 0.65 | 5.1 | |
| LWD Infinity Plan Fluor Objectives | L Plan Fluor 10x | 0.3 | 14 |
| L Plan Fluor 20x | 0.45 | 6.6 | |
| L Plan Fluor 40x | 0.65 | 3.9 |
| BDS500 Inverted Biological Microscope Outfits
| Item | Specification | Outfits |
| Eyepiece | WF10X/22mm (adjustable) | ●● |
| Centering telescope | ● | |
| LWD Infinity Plan Objectives | Plan FL2X/0.06 W.D.=7.2mm | O |
| L Plan FL4X/0.11 W.D.=12.1mm | ● | |
| L Plan FL 10X/0.25 W.D.=10.3mm | O | |
| L Plan FL 20X/0.45 WD.=5.8mm | O | |
| L Plan FL 40X/0.65 W.D.=5.1mm | O | |
| LWD Infinity Plan Phase Contrast Objectives | L Plan FL PHP 4X/0.10 (Both for Bright Field &Phase Contrast)W.D.=9.2mm | O |
| L Plan FL PHP 10X/0.25 (Both for Bright Field &Phase Contrast)W.D.=10.3mm | ● | |
| L Plan FL PHP 20X/0.45 (Both for Bright Field &Phase Contrast)W.D.=5.8mm | ● | |
| L Plan FL PHP 40X/0.65 (Both for Bright Field &Phase Contrast)W.D.=5.1mm | ● | |
| LWD Infinity Plan Fluor Objectives | L Plan Fluor 10×10.30 W.D.=14.0mm | o |
| L Plan Fluor 20×10.45 WD.=6.6mm | o | |
| L Plan Fluor 40x/0.65 W.D.=3.9mm | o | |
| Annular Spot | 10×/20×/40× | ● |
| 4× | ● | |
| Seidentopf Trinocular Head | Inclined 45°,interpupilary distance:48-76mm Light distribution (both):100:0(100%for eyepiece) 80:20(80%for trinocular head,and 20%for eyepiece) | ● |
| Seidentopf Trinocular Head | Inclined 45°,interpupilary distance:48-76mm Light distribution (both): 100:0 and 0:100(100%for eyepiece or 100%for trinocular head) | O |
| Adaptor for Digital | 100%light for Photography Port | ● |
| Photography | (Adaptor for CANON or NIKON SLR Digital Photography Camera) | |
| Nosepiece | Quintuple | ● |
| Mechanical Stage | Stage size:X×Y210×241mm,Round slide size:φ110mm, Attached mechanical stage(available for 96 holes plate,moving range X×Y:128×80mm.) | ● |
| Culture Dish Holder | 65mm+35mm | O |
| 54mm | ● | |
| blood cell counter | O | |
| Glass Holder | O | |
| Universal Holder | O | |
| Condenser Koehler lllumination | 4-hole rotating disc phase contrast condenser N.A.0.4,W.D.45mm,It can be up-down adjusting | ● |
| Koehler Illumination | 12V/50W Halogen,input voltage:100V～240V | ● |
| 5WLED,input voltage:100V～240V | O | |
| Filter(Φ34) | Blue | ● |
| Green | ● | |
| Amber /Grey | O | |
| C-mount | 1X10.35X10.5X10.75X C-Mount (focus adjustable) | O |
| Epi fluorescence lllumination | Epi fluorescence media unit ,field diaphragm,center adjustable. | O |
| 100W mercury lamp ,5WLED(input voltage:100V～240V) | O | |
| B,G,V,UV fluorescence filters can be chosen | O |
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
Packing Size: 660mm×590mm×325mm Gross Weight: 18 kgs Net Weight: 13.5 kgs
