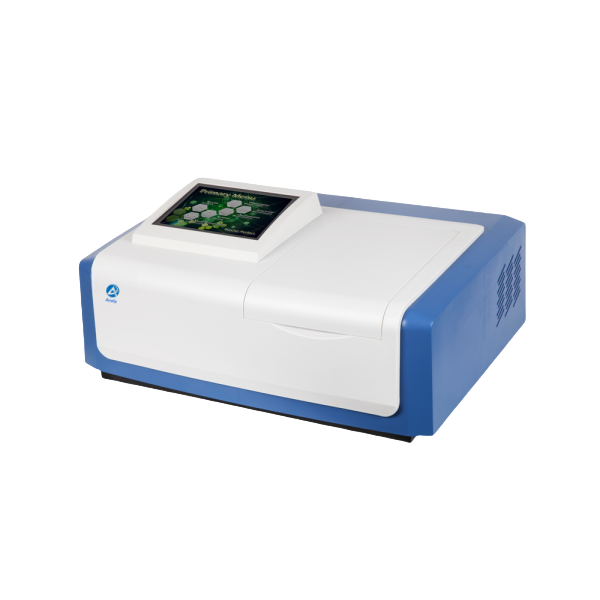

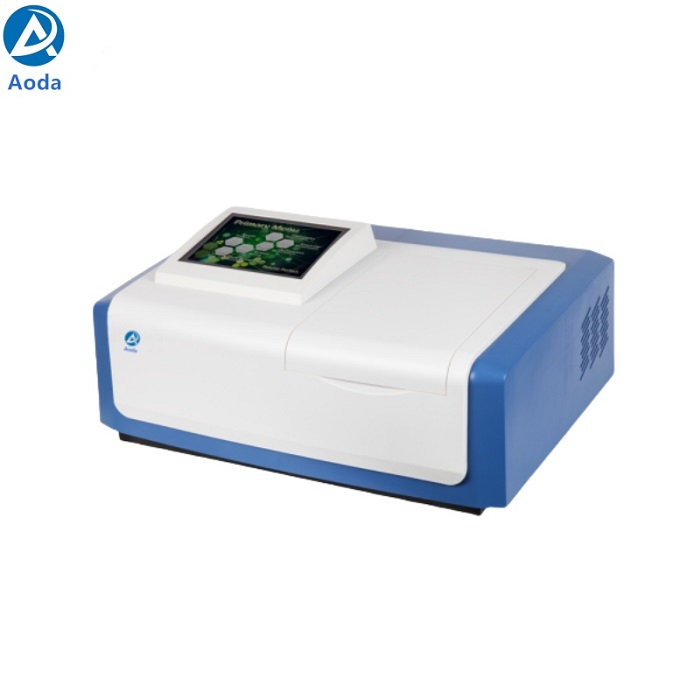

Aoda L7 Double Beam UV-VIS Spectrophotometer

Aoda L7 Double Beam UV-VIS Spectrophotometer

L7 double beam UV-VIS spectrophotometers adopt double beam optical system, and blazed holographic gratings.

They have outstanding test precision and very competitive prices. 8-inch color touch-screen, cutting-edge user interface, powerful functions, and easy operation.

With powerful functions, the equipment shows great performance in qualitative and quantitative testing, such as:

● Full-spectrum scanning

● Linear regression

● Detailed spectrum scanning

● Concentration direct reading

● Time-based kinetics determination

● Peak / Valley detecting

● GOTO λ

● Multi-wavelength measurement

L7 double beam UV-VIS spectrophotometers is designed with sophisticated power protection system. With high capacity of internal memory, it can store testing results, scanned images, regression equations and correction

data. Therefore, it follows a fast initialization when power on.

L7 double beam UV-VIS spectrophotometers can be connected with dedicated printer, which can print testing results, or draw curve from spectral scanning, fixed wavelength time-based scanning, and linear regression.

With USB COM port the device can be connected to a PC, which can not only enhance theperformance in data testing and spectrum scanning, but also expand the memory to save more testing results.

● Double beam optical system

● 8-inch color touch-screen

● Automatic zero and full scale adjustment

● Automatic wavelength settings

● Equipped with USB COM port

● UV WIN8 Spectrum Data Processing Software optional

● Thermal plotter optional

Photometry:     Double Beam

Monochromator Type:    Czerny-Turner

Focal Length:    160mm

Grating:    1200 lines/mm

Detector:     Silicon Photocell

Spectrum Bandwidth:    1.8nm

Wavelength Setting:     8-inch color touch-screen

Wavelength Range:    190-1100nm

Wavelength Accuracy:    ±0.3nm

Wavelength Repeatability:    ≤0.1nm

Scanning Speed:    Fast-Medium-Slow

Stray Light  :     ≤0.03%T( at 220nm NaI, 360nm NaNo2 )

Photometric Range:     0.0-200.0% T

                                   -0.301-4.000 A

                                   0.000-9999 C

Photometric Accuracy:    ±0.3% T

                                       ±0.002 Abs (0-0.5A)

                                      ±0.004 Abs (0.5-1A)

Photometric Repeatability:    ≤0.15% T

                                             0.001 Abs (0-0.5A)

                                             0.002 Abs (0.5-1A)

Baseline:     ≤±0.002 A(200-1090nm)

Noise:    100%（T）noise≤0.15%(T) ， 0%（T）noise≤0.1%(T)

Drifting:    ≤0.0009 Abs/h (250nm and 500nm after 2h warm up)

Power:    AC220V±22V 50Hz±1Hz, 200W

Packaging Size:    710mm X 590mm X 505mm 0.21M3 36kg

Standrad Accessories

● Operation manual 1

● Glass cuvette 1cm 4pcs

● Quartz cuvette 1cm 2pcs

● Power cable 1

● Fuse 2pcs

● Cuvette holder 10mm

Optional Accessories

● UV WIN8 Spectrum data processing software

● Thermal Plotter

● no optional cuvette holder
