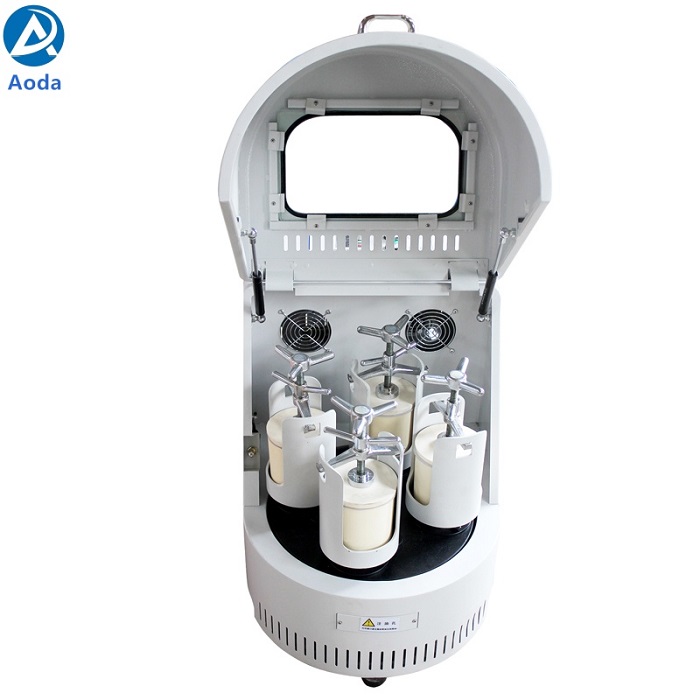

Aoda Vertical semi-circle Planetary ball mill
Vertical semicircular planetary ball mill is a device for mixing, fine grinding, small sample preparation, new product development and small batch production of high-tech materials....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Aoda Vertical semi-circle Planetary ball mill
Vertical semicircular planetary ball mill is a device for mixing, fine grinding, small sample preparation, new product development and small batch production of high-tech materials.
Vertical semicircular planetary ball mill is widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departments. It is suitable for the production of electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganese oxide, catalysts, phosphors, long afterglow luminescent powder, rare earth polishing powder, electronic glass powder, fuel cells, zinc oxide varistors, piezoelectric ceramics, nanomaterials, disc ceramic capacitors, MLCC, thermistors (PTC, NTC), ZnO varistors, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphors, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and other products.

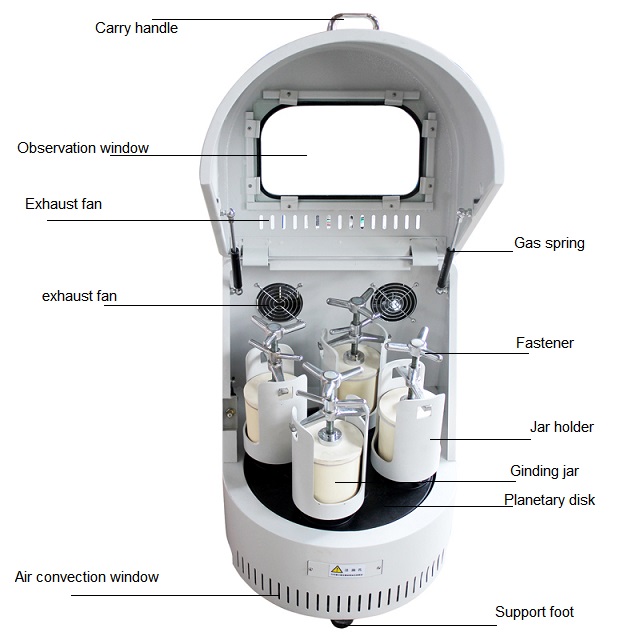

Constructure of Vertical Semi-circle planetary ball mill

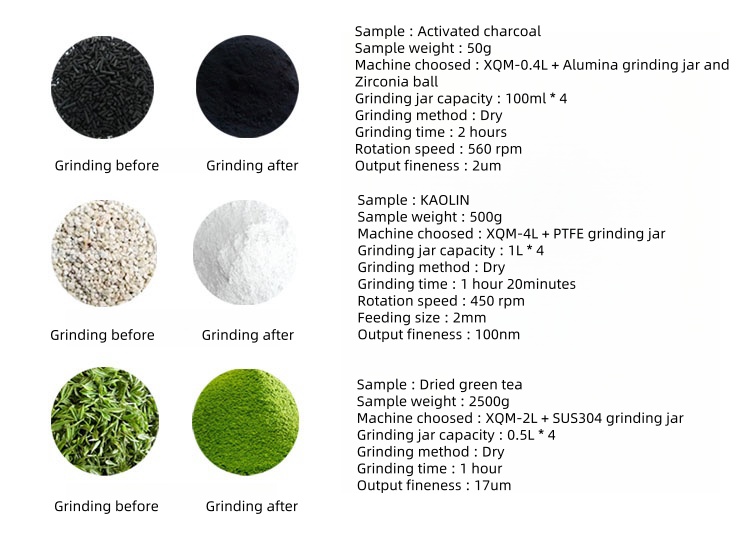

Grinding project
Technical parameters
| Vertcial semi-circle planetary ball mill | |||||||
Model | XQM-0.4L | XQM-2L | XQM-4L | XQM-8L | XQM-10 | XQM-12L | XQM-16L |
Capacity(L) | 0.4 | 2 | 4 | 8 | 10 | 12 | 16 |
Drive mode | Gear drive | ||||||
Operate mode | 2 or 4 mill jar work together | ||||||
Max loading capacity | 2/3 of mill jar volume | ||||||
Voltage | AC220V50Hz | 380V50Hz | |||||
Revolution Speed | 40-435 | 35-335 | 35-290 | 35-255 | |||
Rotation Speed | 90-870 | 70-670 | 70-580 | 60-510 | |||
Total Timing | 1-9999 | ||||||
Alternating Run Time of Forward & Reversal Rotation(min) | 1-999 | ||||||
Power(KW) | 0.25 | 0.75 | 1.5 | 3 | |||
Jars volume | 50-100ml | 50-500ml | 250-1000ml | 1-2L | 1-2.5L | 1-3L | 2-4L |
Sample | Soil≤10mm;Others ≤10mm3mm | ||||||
Noise(db) | 58 | 60 | 65 | ||||
Speed adjustment | Frequency control | ||||||
N/W(kg) | 29 | 80 | 132 | 203 | |||
Dimension(cm) | 50x30x34 | 75*47*59 | 88x56x67 | 95x60x71 | |||

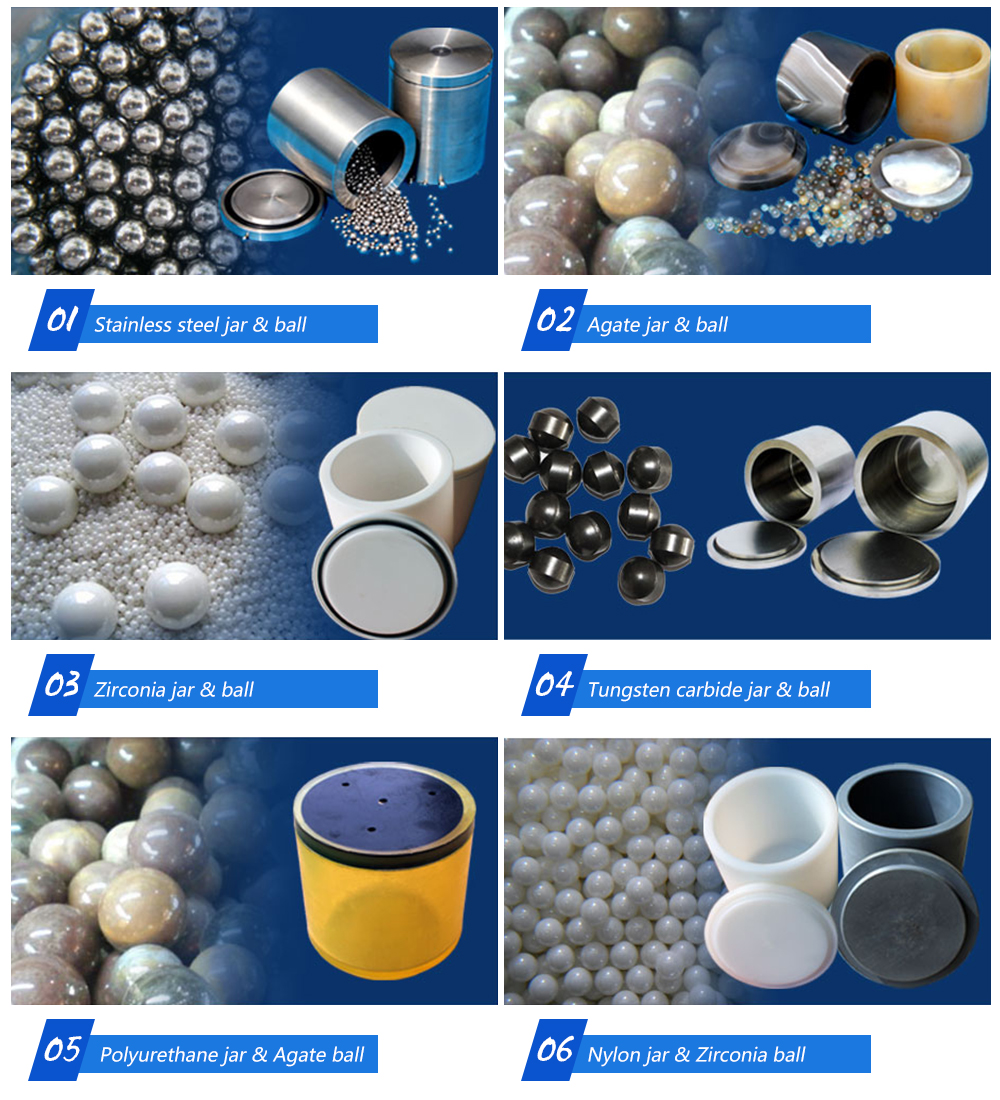

Optional Grinding jar and ball
We have grinding jars and grinding balls made of stainless steel, nylon, agate, aluminum oxide, zirconium oxide, polytetrafluoroethylene, cemented carbide, tungsten carbide, etc.
