Aoda LAB-WP Synthesizing Lab Ultrapure water purification system
RO pure water: desalination rate as high as 95-99% , Conductivity ≤10μS/cmUltrapure water:resistivity 18.25MΩ.cm@25°C,TOC: 3 ppb,particles (0.22 um) 1/ml,microorganism 1 cfu/ml,pyrogen0.001EU/ml,RNases≤0.01ng/ml,DNases≤...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Aoda LAB-WP Synthesizing Lab Ultrapure water purification system
Ø Colored touched screen, humanized operation interface make users completely monitor controller’s working status and real-time data.
Ø ABS engineering plastic case, powder coating technology, with water quality and quantity upgrading function, self-priming door.
Ø Type U Korean quick-insert filters, used imported filtering materials.
Ø Upgraded self-cleaning filter which with design of built-in 10’’ 10μm stainless steel filter mesh and silicone soft scraping, it can clean anytime, perfectly replace PP cotton filter, no need exchange.
Ø Long-acting KDF filter whose adsorption efficiency and lifetime are more than 10times as equal quantity activated carbon filter’s, this avoid frequent filter replacement.
Ø Imported UF ultra filtration column ensure meet request for removing pyrogen and RNA.
Ø Built-in pressure tank which has inner pouch whose material is anti-bacteria and it is transparent, the inner pouch can be changed anytime.
Ø Inbuilt feed water pressure test gauge to real time monitor tap water pressure and filters blocking.
Ø Lifetime of PP cotton, activated carbon filter, RO membrane and ultra purification columns can be set to display the elapsed&rest time of consumables. Automatic reminder for filter replacement to avoid water quality decreasing.
Ø Feed water, RO and UP water three ways water quality sensor and five ways switches signal are accessed integrated, with functions of timing quantitative water taking.
Ø Equipped with USB Host interface, it supports data export function of historical alarm record and historical water intake record.
Ø Low-voltage 24VDC is used as the main power supply, which meets the safety regulations and meets the requirements of humid environment, and will not cause personal injury.
Ø Can be with inner circulation system to ensure water quality keep at the highest level. ( optional)
Aoda LAB-WP Synthesizing Lab Ultrapure water purification system Applicable to all kinds of physical and chemical detection, biochemical analysis, blood examination, micro analysis, washing, HPLC, IC, GC, analytical experiments.
| Aoda LAB-WP Synthesizing Lab Ultrapure water purification system | |
Inlet water source | Urban tap water, inlet water pressure: 0.15-0.5MPa, water temperature 5-40°C |
Water flow speed | 1.5-2L/min ( with pressure barrel) |
Water output | 10/20/30 L/H |
Output Water quality | RO water: desalination rate as high as 95-99% (when using new RO membrane) |
UP water: resistivity 18.25MΩ.cm@25°C (higher than laboratory water standard) TOC: <3 ppb, particles (>0.22 um) <1/ml, microorganism <1 cfu/ml, pyrogen<0.001EU/ml, RNases≤0.01ng/ml, DNases≤3Pg/ul | |

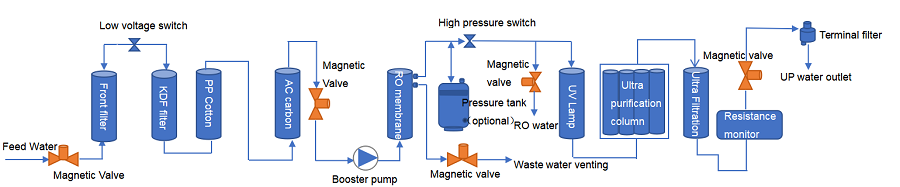

Process
Filter function
Front filter: 10 micron mesh 316 stainless steel washable filter, remove minor impurities,extend PP cotton lifetime.
KDF filter: Remove residual chlorine,heavy metals, retrain fungi breed, lifetime is very long, can protect post-positive filters.
PP: PP cotton filter, remove impurities (greater than 5 micron) such as suspended solid, rust, sludge, colloid, etc.
AC: Granular activated carbon filter: remove color, odor, residual chlorine and heavy metals
RO: Reverse osmosis membrane: filter out <1nm pollutants, ions, particles
UV: UV germicidal lamp: sterilization device, decomposition and photo oxidation OC, lower TOC
UP: Ultra-purification column: ion exchange resin bed, H+ and OH- ion removal
UF: Ultra filtration membrane: remove pyrogen,RNase, DNase
TF: 0.2μm terminal filter, final removal for < 0.2μm bacteria

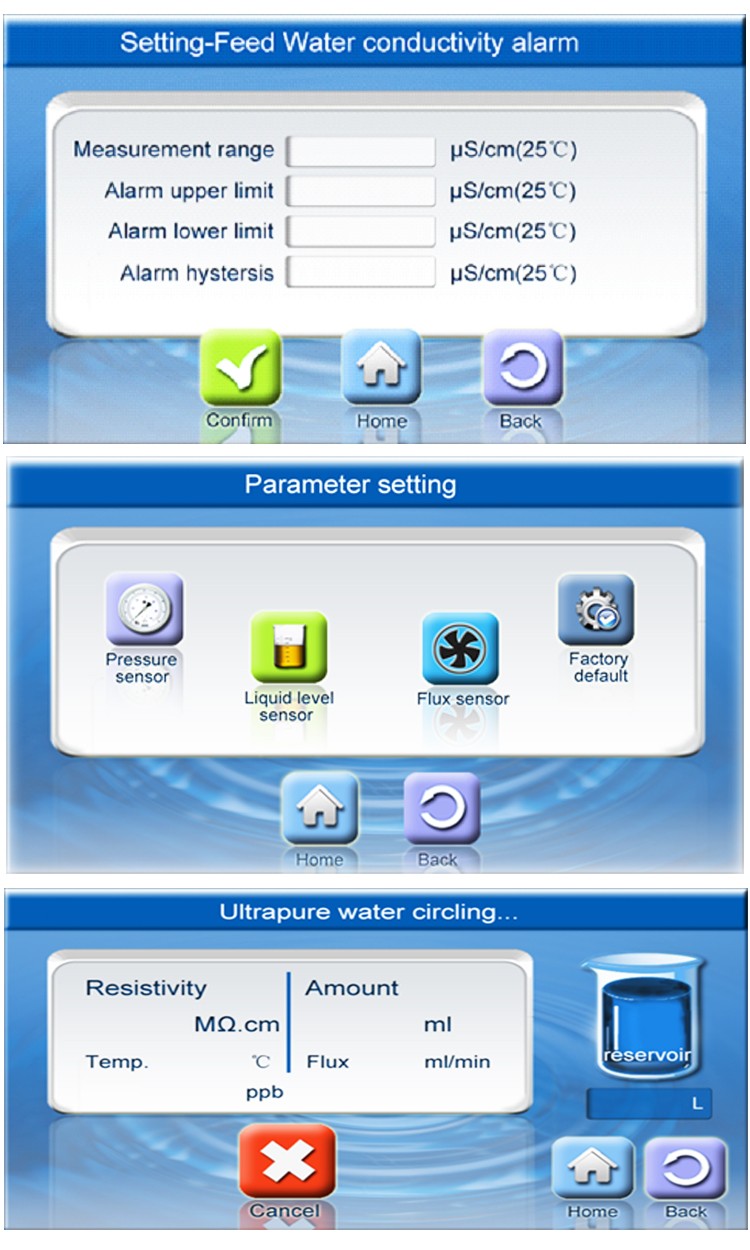

Operation screen display
