XTL Universal testing machine Tensil testing machine

XTL Universal testing machine Tensil testing machine

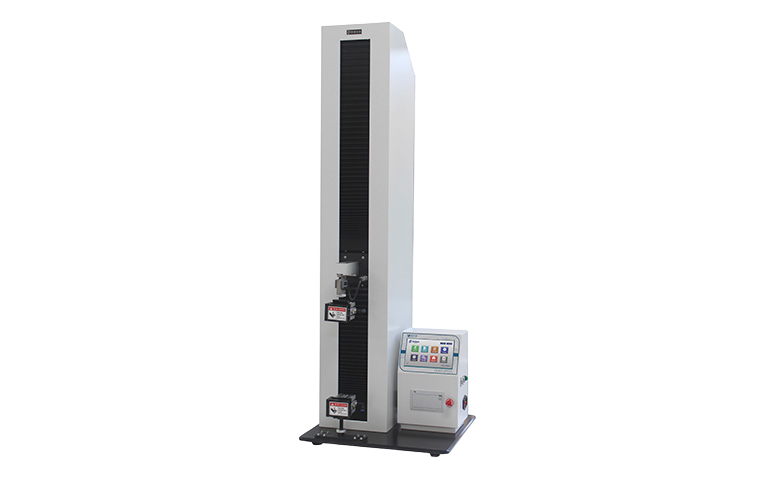

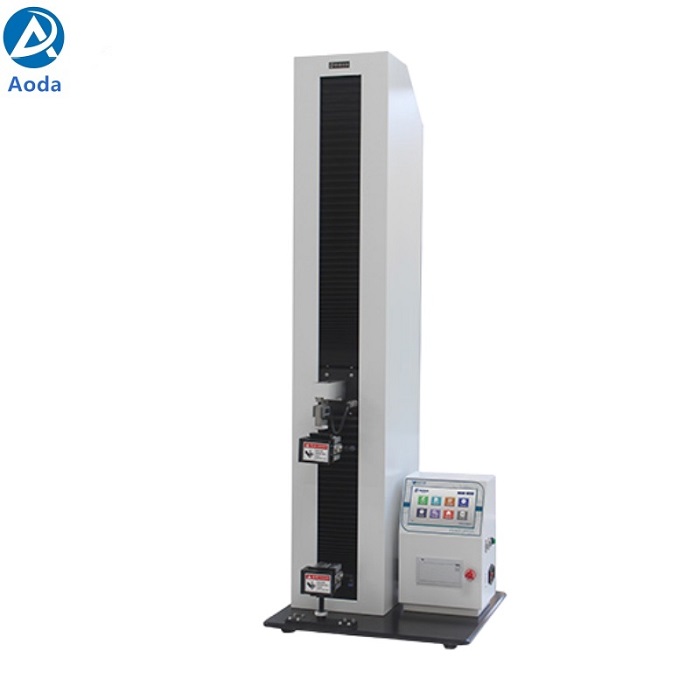

XTL Tensile Testing Machine is suitable for testing the elongation rate, peel force, deformation rate, heat seal strength, open force, tear resistance, puncture resistance, low speed unwinding force of plastic film, composite film, adhesive tape, medical patch, protection film, release paper, foil, non-woven, rubber, paper, and other products.

• 7-inch color touchscreen with graphical user interface (GUI).

• Diverse modes are getting to meet various requirements.

• Equipped with advanced sensor.

• The screw driving system realizes the continuous adjustable speed.

• Intelligent configurations (limit protection, over-load protection, automatic reposition and power-down memory) ensure the safety of users and the instrument itself.

• The curve of data synchronously shows the changing trend of force value during the test.

• The records of data can be queried, audited and tracked.

• The micro-printer facilitate to get paper-data.

• Equipped with standard USB interface.

Tensile Property

Tensile Strength and Elongation Rate

Breaking Force

Tear Resistance

Heat Seal Strength Test

90 Degree Peel Test

180 Degree Peel Test

Meet standard

ASTM E4, ASTM D828, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, ISO 37, JIS P8113, GB/T 13022, GB/T 8808, GB/T 1040, GB/T 4850, GB/T 7753, GB/T 7754, GB/T 453, GB/T 17200, GB/T 16578, GB/T 7122, GB/T 2790,

GB/T 2791, GB/T 2792, QB/T 2358, QB/T 1130.
