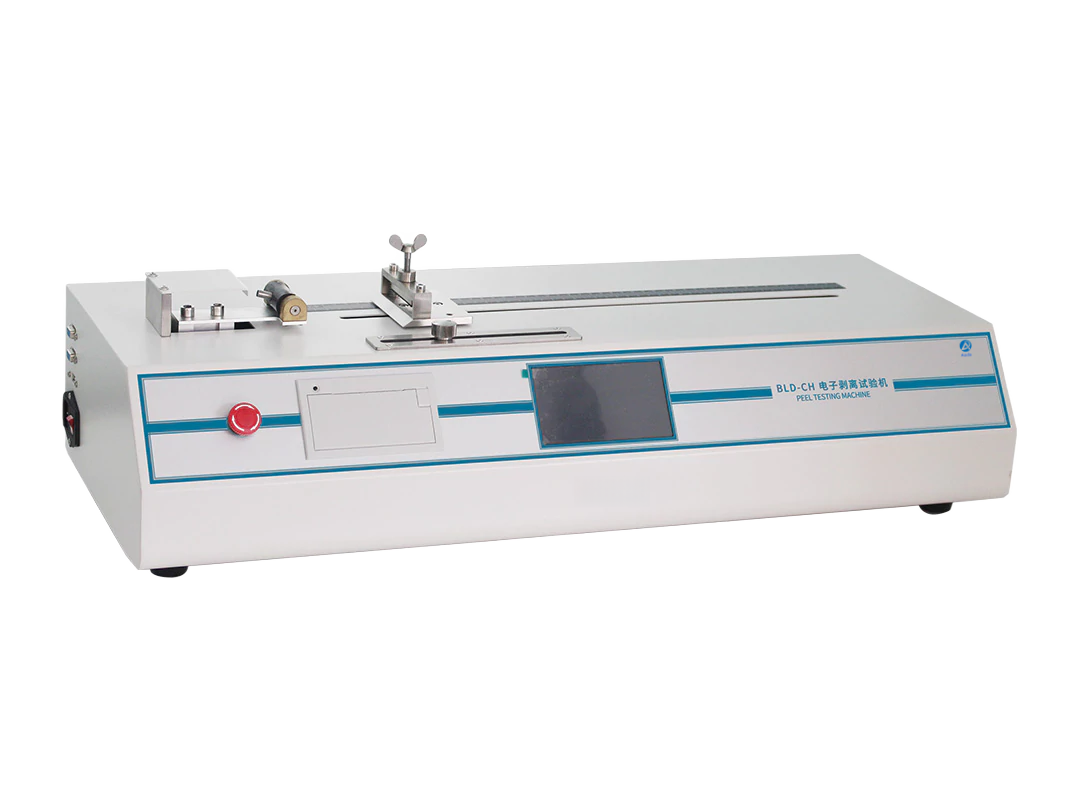

BLD-CH Peel Strength Testing machine
Peel Strength Tester can be used for peeling and other performance tests of adhesives, adhesive tapes, pressure sensitive tapes, medical adhesive bandages, protection films, release paper, laminated films, leather, woven bags and paper....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
BLD-CH Peel Strength Testing machine
BLD-CH Peel Strength Tester can be used for peeling and other performance tests of adhesives, adhesive tapes, pressure sensitive tapes, medical adhesive bandages, protection films, release paper, laminated films,
leather, woven bags and paper.
Meet standard
ASTM D3330, GB/T 4850, GB/T 7754, GB/T 8808, GB/T 13022, GB/T 7753, GB/T 17200, GB/T 2790, GB/T 2791, GB/T 2792, QB/T 2358, YYT 0507, YYT0148, JIS-Z-0237, HGT 2406-2002
Usage
Tensile Strength and Deformation Rate
Tensile Strength at Break
180 Degree Peel Test
90 Degree Peel Test
5-inch color touchscreen with graphical user interface (GUI).
The test speed is adjustable among 0 ~ 500 mm/min
Each test gives the maximum, minimum and average value. It also supports group statistical analysis functions.
Over travel protection, overload protection, anti-collision protection, automatic position reset function are available.
Equipped with a precision reading scale, easily read the elongation of the sample.
Equipped with micro printer to print the test results automatically.
Comply with international standards of ISO, JIS, ASTM, DIN and other relevant international standards.
Chinese and English operation interface, reliable performance.
Items | Specifications |
Test Range | 5N (Standard) |
10 N, 20 N, 30 N (Optional) | |
Accuracy | 0.5% FS |
Test Speed | 1 ~ 500 mm/min (Adjustable) |
Sample Width | 30 mm (Standard) |
50 mm (Optional) | |
Stroke | 400 mm |
Power Supply | AC 100-240V 50/60Hz |
Instrument Dimension | 750mm(W) x 300mm(D) x 165mm(H) |
Net Weight | 18 kg |
